Yongjin - Exports to Western jacquard knitting machine automatically Ungrouped
Guangzhou Yongjin Machinery Co., Ltd. relying on strong innovation ability and firm R&D perseverance, successfully developed Exports to Western jacquard knitting machine automatically. Our company has been investing heavily in R&D and upgrades of technologies. This has given initial results eventually. As Exports to Western jacquard knitting machine automatically advantages are discovered continually, it has been widely used in the field(s) of Other Textile Machines. Research and development are the pillars on which the future of our company rests. Guangzhou Yongjin Machinery Co., Ltd. will put more emphasis on improving our R&D strength in the future for developing more creative and competitive new products.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile Industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Place of Origin: | Guangdong, China | Brand Name: | YongJin, YongJin |
| Product: | Other | Material Capabilities: | Yarn |
| Condition: | New, New | Warranty: | 1 Year |
| After Warranty Service: | Video technical support, Online support | Local Service Location: | Turkey, Thailand |
| Certification: | ce | After-sales Service Provided: | Video technical support, Online support, Engineers available to service machinery overseas |
| Commodity name: | Pet strap making machines textile, textile machinery price | Model Number: | YJ-TNF |
| Application: | It can be used To produce jacquard elastic and non-elastic webbing | Place of origin: | GuangZhou, China |
| Production Capacity: | 300sets / month | Export Markets: | Southeast Asia, the Middle East, Europe and America |
| Dimension(L*W*H): | 3*0.98*2.6m |

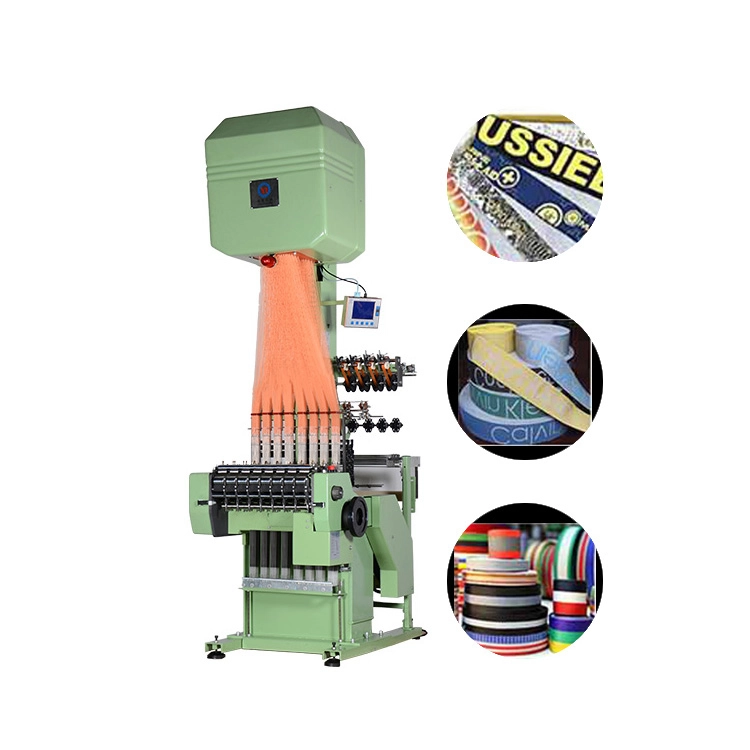

Exports to Western jacquard knitting machine automatically
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
| Model | TNF8/27A | TNF6/42A | TNF6/42B | TNF4/66A |
| Number of hooks | 192/240 | 192/240/320/384 | 384/448/480/512 | 192/240/320/384 |
| Number of tapes | 8 | 6 | 6 | 4 |
| Width of reed | 27 | 42 | 42 | 66 |
| Maximum of tapes | 25 | 40 | 40 | 62 |
| Number of frame | 12 | 12 | 12 | 12 |
| Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Model | TNF4/66B | TNF6/55A | ||
| Number of hooks | 384/448/320/512/640/720 | 192 | ||
| Number of tapes | 4 | 6 | ||
| Width of reed | 66 | 27 | ||
| Maximum of tapes | 64 | 25 | ||
| Number of frame | 12 | 12 | ||
| Circulation | 1:8/16-32 | 1:8/16-32 | ||
| Speed | 500-1200rpm | 500-1200rpm | ||
| Main Features |
1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine. |
2.The integration solenoid valve setting is small in size and sensitive while working. |
3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain. |
4.The tension of warp is controlled automatically with the help of advanced technology |
5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity. |
6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking. |
7.The woven flower shape is showed on windows directly and clearly. |
8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens. |
