Yongjin auto loom single yarn warping machine Relying on the excellent quality and pain-solving functions, it is loved and communicated by customers, which not only allows the company's product brand to gain great market exposure, but also makes the company's market sales and market share explode Style growth.What's more It is widely applied in such fields as Weaving Machines.

Customization:

Yarn creel position (Min. Order: 1 sets)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Guangzhou Yongjin Machinery Co., Ltd. In-depth analysis of the actual needs of target customers, combined with its own advantages resources, successfully developed Yongjin auto loom single yarn warping machine. Warping Machine Yongjin has been dedicated to the design, R&D, manufacturing, and updates of weaving machine, jacquard loom, needle loom. We fully hope that we can satisfy customers from different fields, countries, and regions by offering them high-quality products and professional service. If you have any questions or problems, please contact us at any time through the contact information listed on our website.

Applicable Industries:	Manufacturing Plant, Textile industry	Showroom Location:	Turkey, Thailand
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty of core components:	1 Year
Core Components:	Motor	Condition:	New, New
Type:	Steam Warping Machine	Application:	Dedicated to narrow fabrics warping, Dedicated to narrow fabrics warping
Production Capacity:	The maximum machine speed:1000m/min	Place of Origin:	Guangdong, China
Brand Name:	YongJin, YongJin	Dimension(LWH):	1.052.321.56, 1.052.321.56
Weight:	800kg	Power:	1.5KW
Warranty:	12 month	Key Selling Points:	Automatic
After-sales Service Provided:	Engineers available to service machinery overseas	Place of origin:	GuangZhou, China
color:	Green	Export Markets:	Southeast Asia, the Middle East, Europe and America
Speed:	0-1000m/min	Beam size:	400*360mm
After Warranty Service:	Video technical support, Online support	Local Service Location:	Turkey, Thailand
Certification:	3C

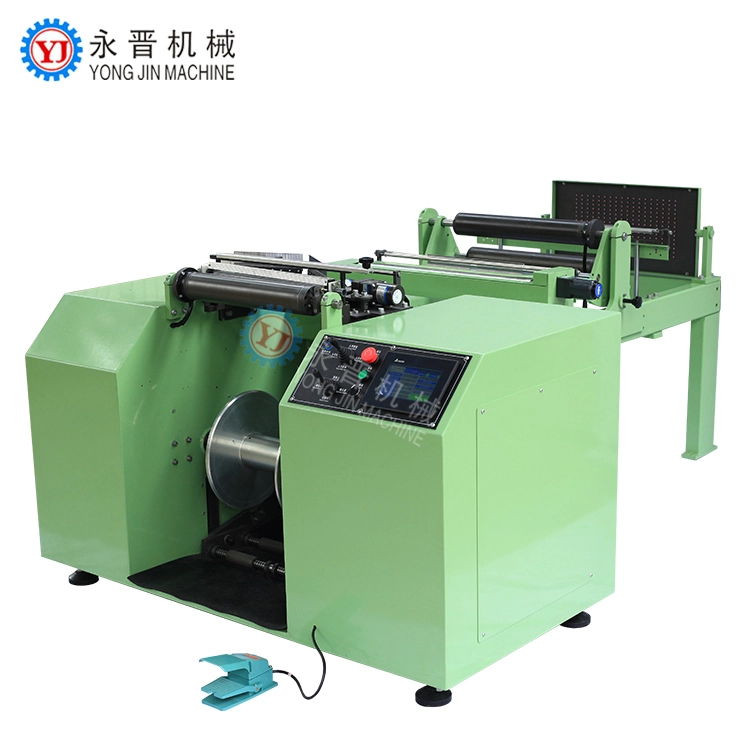

Yongjin auto loom single yarn warping machine

We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )

Product Overviews

Main features

1.Dedicated to narrow fabrics warping, applicable raw materials are cotton yarns, viscose yarns, blended yarns, polyester filament, low elastic fiber.

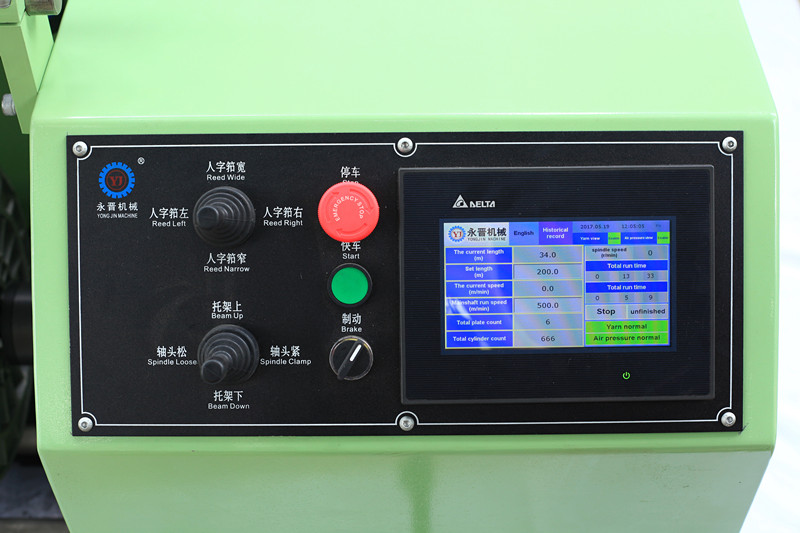

2.Using PLC program control, touch screen panel, and it is easy to operate.

3.Constant speed warping, uniform tension, smooth effects.

4.High speed warping, speed can up to 1000 meters per minute, high speed and high efficiency.

5.Automatic lifting device for beam, easy operation, safety and reliability and labor saving.

6.Anti-static device&yarns lubricating device, reduce yarn static and coarse, to become more soft and raise quality.

7.Air pressure protection, high safety performance.

Technical Parameters

Beam size application	Warping speed	Rated speed	Air pressure	Weight of machine
400*360mm	0-1000m/min	0-1500rpm	0.4-0.8Mpa	800kg
Width of machine	Height of machine	Length of machine	Power	Voltage
2320mm	1560mm	1050mm	1.5kw	380v

Yongjin - Yongjin auto loom single yarn warping machine Warping Machine 8

Click to know more

Yongjin - Yongjin auto loom single yarn warping machine Warping Machine 11

Yongjin - Yongjin auto loom single yarn warping machine Warping Machine 12

It can be applied to produce jacquard elastic and non-elastic knitting fabric and ornaments such as

chest ribbons , elastic braids for clothes ,satin ribbons, zipper ribbons, shoelaces that are widely used in ready garments, headwear, hair ornaments, gifts, medical products, belts, gloves and so on.

Advantage:

1,the open warp is horizontal construction. The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine

2,The integration solenoid valve setting is small in size and sensitive while working

3,Being the most advanced micro electronic jacquard unit ,its construction is simple and compact ,

and it is easy to maintain

4,The tension of warp is controlled automatically with the help of advanced technology

5,The women flower shape is showed on windows directly and clearly

6,The easy-dismounting construction of monofilament can lessen the workers’ labor intensity

7,The unique CAD printmaking system for woven tape is easy-to- use and is featured by the externally self-locking. Yongjin - Yongjin auto loom single yarn warping machine Warping Machine 13

Packing	1 set of loom per standard wooden case
Payment terms	T/T, L/C.Western Union.
Delivery of time	The delivery time is 20 days for one 20ft container.25 days for one 40ft container
Port	Guangzhou port.

Yongjin - Yongjin auto loom single yarn warping machine Warping Machine 20

If you have more questions, write to us. We sincerely hope to cooperate with friends from all walks of life, work together to create a better future!
