Yongjin - Domestic karl mayer warp knitting machine price,benninger warping machine supertronik Warping Machine
Guangzhou Yongjin Machinery Co., Ltd. has gained a remarkable position in the concerned industry through years of efforts, and there is a great possibility that the company will achieve a greater advancement in the future. After Domestic karl mayer warp knitting machine price,benninger warping machine supertronik launching into the market, we have gained a lot of support and praise. Most customers think that this kind of products are in line with their expectations in terms of appearance and performance. In the future, Guangzhou Yongjin Machinery Co., Ltd. will continue to provide customers with better service, and continue to focus on technological innovation, is committed to building a complete product system, to provide customers with more diversified products.
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Turkey, Thailand |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | PLC, Motor | Condition: | New, New |
| Type: | Steam Warping Machine | Application: | Steam Warping Machine, It can be used To produce jacquard elastic and non-elastic webbing |
| Production Capacity: | The maximum machine speed:1000, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | YongJin, YongJin | Dimension(L*W*H): | 1.05*2.32*1.56, 1.05*2.32*1.56 |
| Weight: | 800kg | Power: | 1.5KW |
| Warranty: | 12 month | Key Selling Points: | Automatic |
| After-sales Service Provided: | Engineers available to service machinery overseas | Place of origin: | GuangZhou, China |
| color: | Green | Speed: | 0-1500RPM |
| Beam size: | 400*360mm | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | Certification: | 3C |

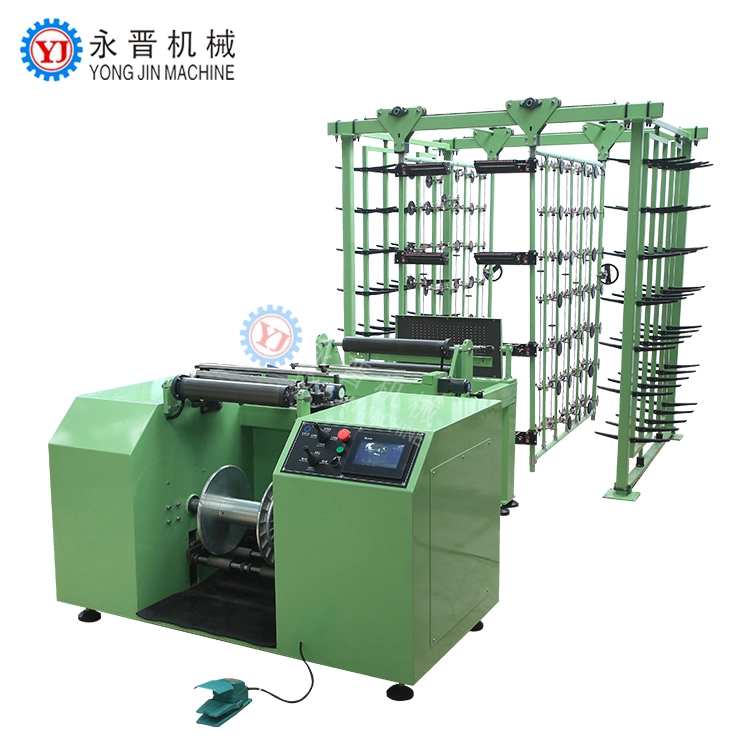

Domestic karl mayer warp knitting machine price,benninger warping machine supertronik
We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )
Main features
1.Dedicated to narrow fabrics warping, applicable raw materials are cotton yarns, viscose yarns, blended yarns, polyester filament, low elastic fiber.
2.Using PLC program control, touch screen panel, and it is easy to operate.
3.Constant speed warping, uniform tension, smooth effects.
4.High speed warping, speed can up to 1000 meters per minute, high speed and high efficiency.
5.Automatic lifting device for beam, easy operation, safety and reliability and labor saving.
6.Anti-static device&yarns lubricating device, reduce yarn static and coarse, to become more soft and raise quality.
7.Air pressure protection, high safety performance.
Technical Parameters
| Beam size application | Warping speed | Rated speed | Air pressure | Weight of machine |
| 400*360mm | 0-1000m/min | 0-1500rpm | 0.4-0.8Mpa | 800kg |
|
Width of machine |
Height of machine | Length of machine | Power | Voltage |
|
2320mm |
1560mm | 1050mm | 1.5kw | 380v |
 |
|
It can be applied to produce jacquard elastic and non-elastic knitting fabric and ornaments such as
chest ribbons , elastic braids for clothes ,satin ribbons, zipper ribbons, shoelaces that are widely used in ready garments, headwear, hair ornaments, gifts, medical products, belts, gloves and so on.
Advantage:
1,the open warp is horizontal construction. The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine
2,The integration solenoid valve setting is small in size and sensitive while working
3,Being the most advanced micro electronic jacquard unit ,its construction is simple and compact ,
and it is easy to maintain
4,The tension of warp is controlled automatically with the help of advanced technology
5,The women flower shape is showed on windows directly and clearly
6,The easy-dismounting construction of monofilament can lessen the workers’ labor intensity
7,The unique CAD printmaking system for woven tape is easy-to- use and is featured by the externally self-locking.
|
Packing |
1 set of loom per standard wooden case |
|
Payment terms |
T/T, L/C.Western Union. |
|
Delivery of time |
The delivery time is 20 days for one 20ft container.25 days for one 40ft container
|
|
Port |
Guangzhou port.
|
