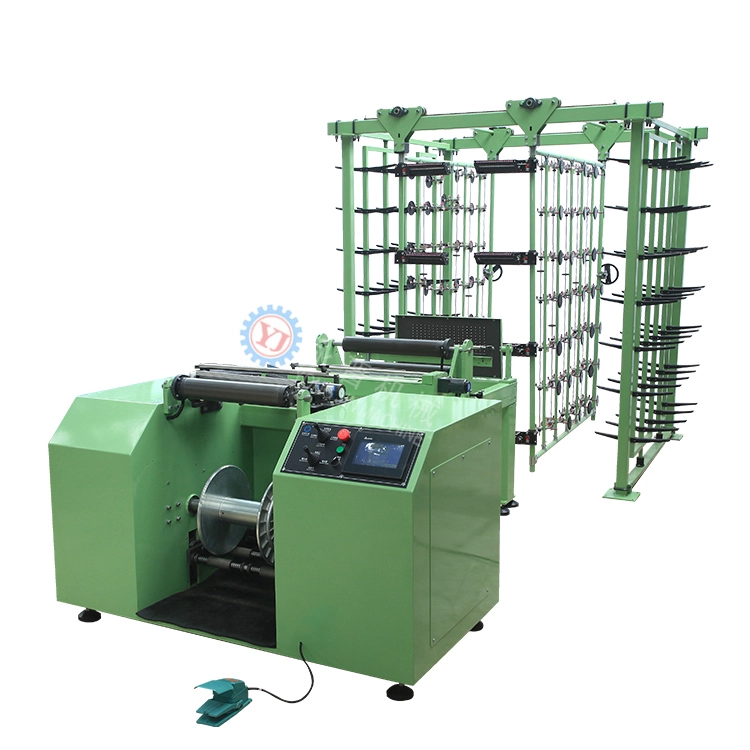

Yongjin - Yongjin high speed automatic textile yarn sectional warping machine Warping Machine
Guangzhou Yongjin Machinery Co., Ltd. has become a recognized leader in the Weaving Machines industry with its high-quality product and excellent service. It better meets the market demands. Having collected customers' needs and analyzed trends, we have spent a lot in developing new and versatile features of Weaving Machines in innovative ways.And the weaving machine, jacquard loom, needle loom is designed to be unique and attractive enough to catch people's attention.
| Applicable Industries: | Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | Motor | Condition: | New, New |
| Type: | Steam Warping Machine | Application: | Dedicated to narrow fabrics warping, Dedicated to narrow fabrics warping |
| Production Capacity: | The maximum machine speed:1000, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | YongJin, YongJin | Dimension(L*W*H): | 1.05*2.32*1.56, 1.05*2.32*1.56 |
| Weight: | 450 KG | Power: | 1.5KW |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Commodity name: | Benninger warping machine | Model Number: | YJ-ZJ-400 |
| Place of origin: | GuangZhou, China | Export Markets: | Southeast Asia, the Middle East, Europe and America |
beam warping machine ge 288+needle loom sample warping machine
We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )
Main features
1.Dedicated to narrow fabrics warping, applicable raw materials are cotton yarns, viscose yarns, blended yarns, polyester filament, low elastic fiber.
2.Using PLC program control, touch screen panel, and it is easy to operate.
3.Constant speed warping, uniform tension, smooth effects.
4.High speed warping, speed can up to 1000 meters per minute, high speed and high efficiency.
5.Automatic lifting device for beam, easy operation, safety and reliability and labor saving.
6.Anti-static device&yarns lubricating device, reduce yarn static and coarse, to become more soft and raise quality.
7.Air pressure protection, high safety performance.
Technical Parameters
| Beam size application | Warping speed | Rated speed | Air pressure | Weight of machine |
| 400*360mm | 0-1000m/min | 0-1500rpm | 0.4-0.8Mpa | 800kg |
|
Width of machine |
Height of machine | Length of machine | Power | Voltage |
|
2320mm |
1560mm | 1050mm | 1.5kw | 380v |
|
Packing |
1 set of loom per standard wooden case |
|
Payment terms |
T/T, L/C.Western Union. |
|
Delivery of time |
The delivery time is 20 days for one 20ft container.25 days for one 40ft container
|
|
Port |
Guangzhou port.
|
