Yongjin - Professional manufacturer custom V series high speed narrow fabric shuttleless needle loom machine YJ-V 8/27
Always insist on taking the technology as the first productivity to improve our R&D strength, Guangzhou Yongjin Machinery Co., Ltd. has successfully developed Professional manufacturer custom V series high speed narrow fabric shuttleless needle loom machine. Manufactured following the strict management system, our Professional manufacturer custom V series high speed narrow fabric shuttleless needle loom machine has gained a reliable quality. Before its launch, it has passed the tests based on international rules and is certified by several authorities. Yongjin is worth the investment for those customers seeking business opportunities. Guangzhou Yongjin Machinery Co., Ltd. will always adhere to the business philosophy of honesty, innovation, integrity to run our business. We believe that with the combined efforts of all our employees, we have enough skills and capabilities to overcome all obstacles and difficulties to make some achievements in the future.
| Applicable Industries: | Garment Shops, Manufacturing Plant | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | Engine, Gearbox, Motor, Pump | Condition: | New, New |
| Type: | Shuttleless Loom | Application: | elastic and non-elastic belts, Used to produce elastic and non-elastic webbing |
| Production Capacity: | The maximum machine speed:1200, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | YongJin, YongJin | Dimension(L*W*H): | 1.5m*0.98m*2.1m, 1.5*0.98*2.1m |
| Weight: | 400 KG | Power: | 1.5KW |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| After-sales Service Provided: | Engineers available to service machinery overseas | Commodity name: | shuttleless webbing loom |
| Model Number: | YJ-V12-15 | Place of origin: | GuangZhou, China |
| High speed: | 800-1300rpm |
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

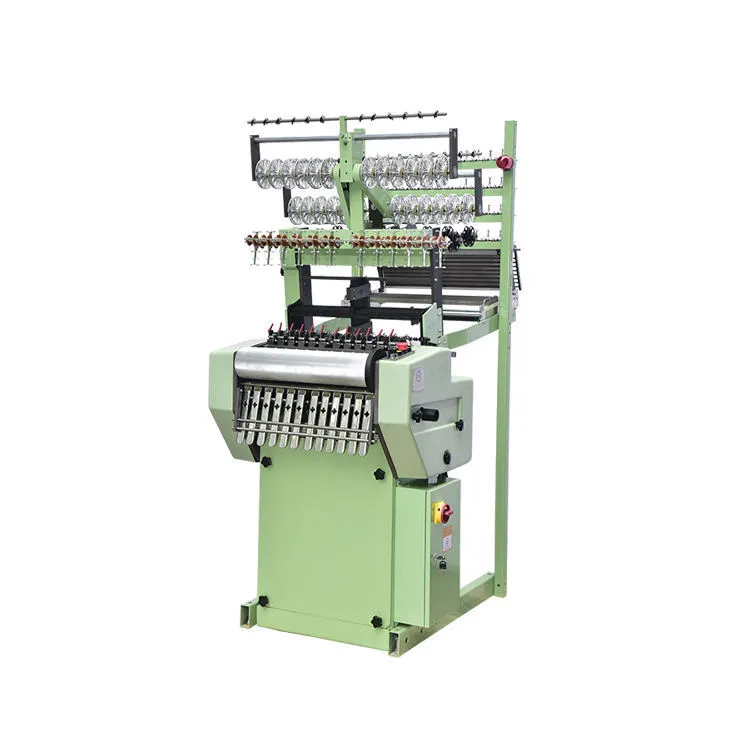

This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
| Model | 2/110 | 4/65 | 6/50 | 8/30 | 12/15 | 8/30-2 | 12/18-2 |
| Length of frame | 550MM | ||||||
|
Number of tapes |
2 | 4 | 6 | 8 | 12 | 16 | 24 |
| Width of reed | 110 | 65 | 50 | 30 | 15 | 30 | 18 |
| Maximum of tapes | 100 | 63 | 48 | 28 | 13 | 28 | 16 |
| Number of frame | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Power/Voltage | 1.1KW/380V | ||||||
| Circulation | 1:8/16-48 | ||||||
| Speed | 800-1500rpm | ||||||
| Main Features |
|
1.It is small in size and good-looking in appearance. |
|
2.The principal axis is electromagnetic braking. It is easy-to-use and sensitive to start and stop, and not cause to any useless tapes. |
|
3.The single iron frame being divided on two sides and oriented in the middle, it can change to various flower shape and different kinds of tapes. |
|
4.It is featured by double weft and double hook and can weave every complex ribbon and double Z-type ribbon. |
|
5.The advanced automatic weft feeding device ensures fine tuning of weft feeding when non-stop of machine. |
|
6.The cam is characterized by its novel profile, no making too much noise and its high-quality lockrand. |
|
7.The number of lines of strips can be changed quickly and efficiently.Motor power is 1.1KW |
|
8.The coiling setting is small in size and easy-to-use, and the coiling tape setting will stop automatically. |
