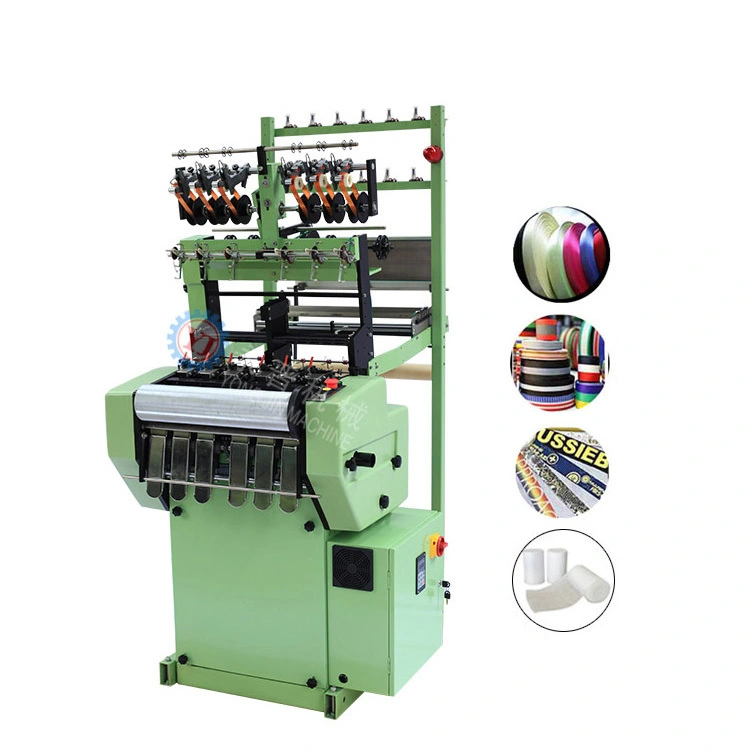

Yongjin - Long life span non woven fabric making machine YJ-V6/42
Guangzhou Yongjin Machinery Co., Ltd. using unique innovative thinking and strong innovation capabilities, we have developed new products with cross-age significance. Long life span non woven fabric making machine is the result of high-end technologies.With the continual of enlarging of its application range in Nonwoven Machines, its demands are increasing rapidly every year. Looking to the future, Long life span non woven fabric making machine will continue to follow the route of independent innovation, and continue to introduce high-tech talents as intellectual support, and strive to achieve the goal of becoming a world-class enterprise.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty of core components: | 1 Year | Core Components: | Motor, Frequency conversion |
| Condition: | New, New | Automatic Grade: | Automatic |
| Place of Origin: | Chongqing, China | Brand Name: | Yongjin, YongJin |
| Voltage: | 380V | Power: | 1.1 W |
| Dimension(L*W*H): | 1500*980*2100mm, 1.4*1*1.8 | Weight: | 400 KG |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Commodity name: | GuangZhou manufacturer supply crochet machines | Model Number: | YJ-V 6/42 |
| Application: | It can be used To produce jacquard elastic and non-elastic webbing | Place of origin: | GuangZhou, China |
| High speed: | 1300rpm | Export Markets: | Southeast Asia, the Middle East, Europe and America |
Long life span non woven fabric making machine
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
| Model | 2/110 | 4/65 | 6/50 | 8/30 | 12/15 | 8/30-2 | 12/18-2 |
| Length of frame | 550MM | ||||||
|
Number of tapes |
2 | 4 | 6 | 8 | 12 | 16 | 24 |
| Width of reed | 110 | 65 | 50 | 30 | 15 | 30 | 18 |
| Maximum of tapes | 100 | 63 | 48 | 28 | 13 | 28 | 16 |
| Number of frame | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Power/Voltage | 1.1KW/380V | ||||||
| Circulation | 1:8/16-48 | ||||||
| Speed | 800-1500rpm | ||||||
| Main Features |
|
1.It is small in size and good-looking in appearance. |
|
2.The principal axis is electromagnetic braking. It is easy-to-use and sensitive to start and stop, and not cause to any useless tapes. |
|
3.The single iron frame being divided on two sides and oriented in the middle, it can change to various flower shape and different kinds of tapes. |
|
4.It is featured by double weft and double hook and can weave every complex ribbon and double Z-type ribbon. |
|
5.The advanced automatic weft feeding device ensures fine tuning of weft feeding when non-stop of machine. |
|
6.The cam is characterized by its novel profile, no making too much noise and its high-quality lockrand. |
|
7.The number of lines of strips can be changed quickly and efficiently.Motor power is 1.1KW |
|
8.The coiling setting is small in size and easy-to-use, and the coiling tape setting will stop automatically. |
