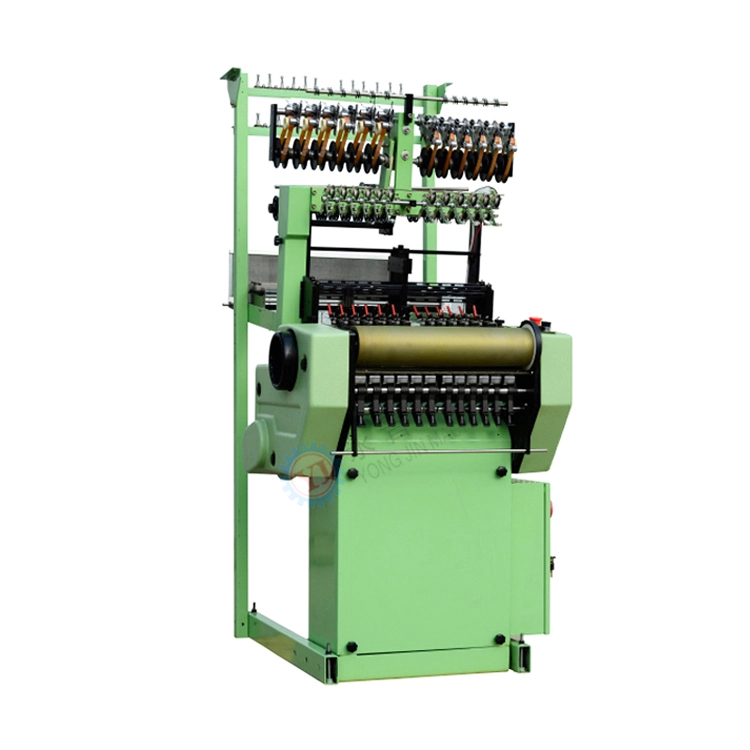

Yongjin - 2015 Newest high-speed ribbon weaving machine YJ-V 8/27
Guangzhou Yongjin Machinery Co., Ltd. has been manufacturing, exporting and supplying excellent quality 2015 Newest high-speed ribbon weaving machine. It is designed to meet the industry standard. Driven by the corporate vision of 'being the most professional manufacturer and the most reliable exporter in the international market', Guangzhou Yongjin Machinery Co., Ltd. will pay more attention to enhancing R&D strength, continually upgrade technologies, and optimize organization structure. We encourage all the staff to unite together in this process for creating a better future for the company.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Condition: | New, New | Type: | Shuttleless Loom |
| Application: | To produce narrow fabric, It can be used To produce jacquard elastic and non-elastic webbing | Production Capacity: | 1700 rpm, 300sets / month |
| Place of Origin: | Guangdong, China | Brand Name: | YongJin, YongJin |
| Dimension(L*W*H): | 1.4*1*1.8, 1.4*1*1.8 | Weight: | 890kg |
| Power: | 2.2KW | Warranty: | 1 Year |
| Key Selling Points: | Automatic | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | After-sales Service Provided: | Video technical support, Online support, Engineers available to service machinery overseas |
| Certification: | 3C | Commodity name: | 2015 Newest high-speed ribbon weaving machine |
| Model Number: | YJ-V 8/27 | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America |
2015 Newest high-speed ribbon weaving machine
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
| Model | 2/110 | 4/65 | 6/50 | 8/30 | 12/15 | 8/30-2 | 12/18-2 |
| Length of frame | 550MM | ||||||
Number of tapes | 2 | 4 | 6 | 8 | 12 | 16 | 24 |
| Width of reed | 110 | 65 | 50 | 30 | 15 | 30 | 18 |
| Maximum of tapes | 100 | 63 | 48 | 28 | 13 | 28 | 16 |
| Number of frame | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Power/Voltage | 1.1KW/380V | ||||||
| Circulation | 1:8/16-48 | ||||||
| Speed | 800-1500rpm | ||||||
| Main Features |
1.It is small in size and good-looking in appearance. |
2.The principal axis is electromagnetic braking. It is easy-to-use and sensitive to start and stop, and not cause to any useless tapes. |
3.The single iron frame being divided on two sides and oriented in the middle, it can change to various flower shape and different kinds of tapes. |
4.It is featured by double weft and double hook and can weave every complex ribbon and double Z-type ribbon. |
5.The advanced automatic weft feeding device ensures fine tuning of weft feeding when non-stop of machine. |
6.The cam is characterized by its novel profile, no making too much noise and its high-quality lockrand. |
7.The number of lines of strips can be changed quickly and efficiently.Motor power is 1.1KW |
8.The coiling setting is small in size and easy-to-use, and the coiling tape setting will stop automatically. |
