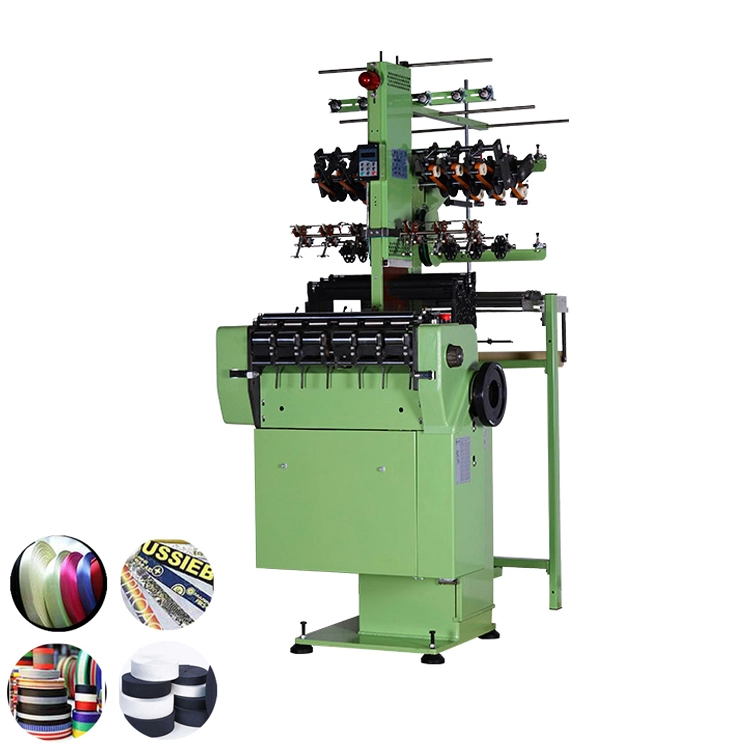

Yongjin - High speed curtain webbing making machine,curtain heading tape needle loom YJ-NF 8/27

Technological innovation promotes products to achieve an invincible position in fierce competition.Therefore,it has applications in a wide range of fields, including Weaving Machines.

Customization:

Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Guangzhou Yongjin Machinery Co., Ltd. maintains stringent norms of quality to manufacture High speed curtain webbing making machine,curtain heading tape needle loom. Through the application of technology, Guangzhou Yongjin Machinery Co., Ltd. have mastered the most efficient and labor-saving method to manufacture the product.It is its wide and effective performance that contributes to its wide uses in the application fields of Weaving Machines. Guangzhou Yongjin Machinery Co., Ltd. always stick to the market-oriented business philosophy and regard 'honesty & sincerity' as the enterprise tenet. We are trying to establish a sound distribution network and aim to provide customers all over the world with the best services.

Applicable Industries:	Garment Shops, Manufacturing Plant, Textile industry	Showroom Location:	Turkey, Viet Nam, Indonesia, Thailand, Bangladesh
Condition:	New, New	Type:	Shuttleless Loom
Application:	To produce narrow fabrics straps/belt and so on, To produce narrow fabrics straps/belt/webbing/tape and so on	Production Capacity:	The maximum machine speed:1500, 300sets / month
Place of Origin:	Guangdong, China	Brand Name:	YongJin, YongJin
Dimension(LWH):	1.5m0.98m2.1m, 1.5m0.98m2.1m	Weight:	500kg
Power:	1.5KW	Warranty:	1 Year
Key Selling Points:	Automatic	After Warranty Service:	Video technical support, Online support
Local Service Location:	Turkey, Thailand	After-sales Service Provided:	Video technical support, Online support, Engineers available to service machinery overseas
Certification:	ISO,3C	Commodity name:	computerized flat knitting hydraulic loom / textile weaving machine
Model Number:	YJ-NF 8/27	Place of origin:	GuangZhou, China
Export Markets:	Southeast Asia, the Middle East, Europe and America

High speed curtain webbing making machine,curtain heading tape needle loom

We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

Product Overviews

Yongjin - High speed curtain webbing making machine,curtain heading tape needle loom YJ-NF 8/27 3

Yongjin - High speed curtain webbing making machine,curtain heading tape needle loom YJ-NF 8/27 4

Parameters

Model	NF2/130	NF2/175	NF2/210	NF4/66	NF4/84	NF4/110
Number of tapes	2	2	2	4	4	4
Width of reed	130	175	210	66	84	110
Maximum of tapes	128	170	200	65	80	100
Number of frame	20	20	20	20	20	20
Speed	300-1200 rpm	200-800 rpm	200-500 rpm	600-1500 rpm	500-1200 rpm	500-1000 rpm
Model	NF6/42	NF6/66	NF6/80	NF8/27	NF8/42	NF8/55
Number of tapes	6	6	6	8	8	8
Width of reed	42	66	80	27	42	55
Maximum of tapes	40	65	78	25	40	53
Number of frame	20	20	20	20	20	20
Speed	800-1700 rpm	500-1200 rpm	500-1000 rpm	800-1700 rpm	500-1200 rpm	500-1000 rpm
Model	NF10/27	NF12/27	NF14/25	NF6/42-2	NF8/27-2	NF16/15
Number of tapes	10	12	14	12	16	16
Width of reed	27	27	25	42	27	15
Maximum of tapes	25	25	23	40	25	13
Number of frame	20	20	20	20	20	20
Speed	500-1200 rpm	500-1000 rpm	500-1000 rpm	500-1200 rpm	500-1200 rpm	500-1200 rpm

Main Features

Main Features
1.The latch-type pattern block is characterized by its precision, firmness, durability, ease of dismounting, no noise in running, and assurance of running at a high speed.
2.The open iron frame construction is a special design whose elastic gel is driven by the upper elasticity. It can run without any noise and progress at high speed.And it can reduce the gravity center , featuring increase of force, reduction of the force on and between the iron frame and the cutters which can assure that the machine runs at a high speed and keep a long service of life.
3.The machine is precisely made, featuring compatibility, durability, ease of operation, free adjustment, fast supply of spare parts, and easse of dismounting and maintenance.
4.The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester, enhancing the lubrication between the cutters and the chained pattern blocks.
5.The variation speed braking motor can make stepless speed regulating and be operated at low soeed, which help lessen labor intensity.
6.With “double crocket hook single needle” and “double crocket hook double needle” devices, it can be applied to producing the fabric products like chest ribbons, shoulder ribbons, curtain ribbons, etc.

Main Features

1.The latch-type pattern block is characterized by its precision, firmness, durability, ease of dismounting, no noise in running, and assurance of running at a high speed.

2.The open iron frame construction is a special design whose elastic gel is driven by the upper elasticity. It can run without any noise and progress at high speed.And it can reduce the gravity center , featuring increase of force, reduction of the force on and between the iron frame and the cutters which can assure that the machine runs at a high speed and keep a long service of life.

3.The machine is precisely made, featuring compatibility, durability, ease of operation, free adjustment, fast supply of spare parts, and easse of dismounting and maintenance.

4.The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester, enhancing the lubrication between the cutters and the chained pattern blocks.

5.The variation speed braking motor can make stepless speed regulating and be operated at low soeed, which help lessen labor intensity.

6.With “double crocket hook single needle” and “double crocket hook double needle” devices, it can be applied to producing the fabric products like chest ribbons, shoulder ribbons, curtain ribbons, etc.

Detailed Images

Yongjin - High speed curtain webbing making machine,curtain heading tape needle loom YJ-NF 8/27 5
