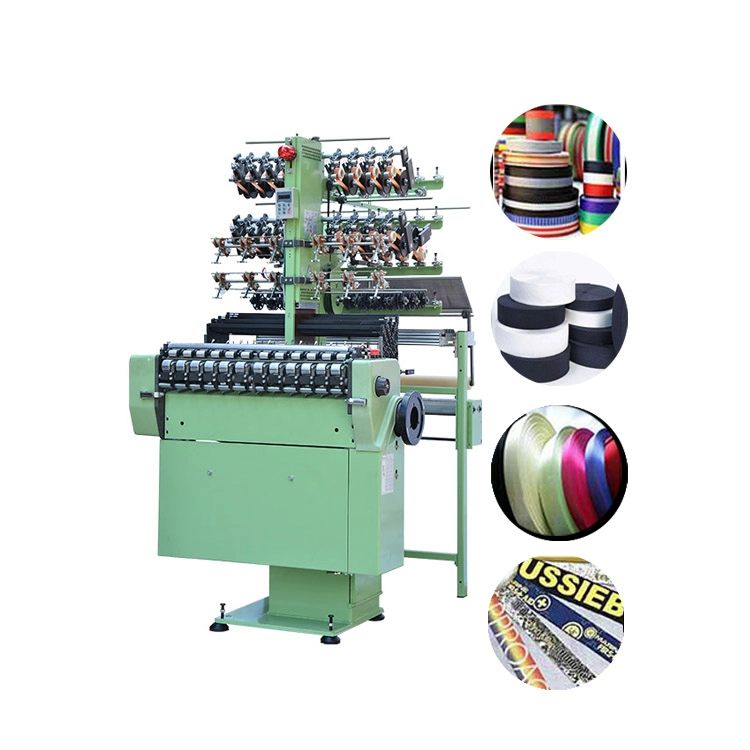

Yongjin - Yongjin high speed elastic band strap and ribbon braiding machine YJ-NF 12/27 1

Yongjin - Yongjin high speed elastic band strap and ribbon braiding machine YJ-NF 12/27 2

Yongjin - Yongjin high speed elastic band strap and ribbon braiding machine YJ-NF 12/27

Thanks to our committed and outstanding technical staff, our technologies have been upgraded to save more labor and cost. Its application ranges have been expanded a lot. At present, it is widely used in the field(s) of Braiding Machines.

Customization:

Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Guangzhou Yongjin Machinery Co., Ltd. keeping up with market development trends, advancing with the times, through professional industry analysis and precise market positioning, relying on strong production strength and strong technical force, Yongjin high speed elastic band strap and ribbon braiding machine have been manufactured. The team uses the most advanced production equipment and independent research and development technology to minimize Yongjin high speed elastic band strap and ribbon braiding machine development cycle and ensure the high quality and strong reliability of the product. It is the support of our customers that propels us to continue to move forward. Guangzhou Yongjin Machinery Co., Ltd. will keep providing high-quality products and professional services as always for customers. In addition, talents are the core pillar of a company. We will organize regular training on our staff to improve their skills.

Condition:	New, New	Applicable Industries:	Manufacturing Plant
Showroom Location:	Turkey, Viet Nam, Indonesia, Thailand, Romania	Place of Origin:	Guangdong, China
Brand Name:	YongJin, YongJin	Warranty:	1 Year
Power:	1.5KW	Dimension(LWH):	1.5m0.98m2.1m, 1.411.8
After Warranty Service:	Video technical support, Online support	Local Service Location:	Turkey, Thailand
After-sales Service Provided:	Video technical support, Online support, Engineers available to service machinery overseas	Commodity name:	GuangZhou manufacturer supply underwear elastic tape weaving machine
Model Number:	YJ-NF 8/27	Application:	To produce narrow fabrics straps/belt/webbing/tape and so on
Place of origin:	GuangZhou, China	Production Capacity:	300sets / month
Export Markets:	Southeast Asia, the Middle East, Europe and America

Yongjin high speed elastic band strap and ribbon braiding machine

We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

Product Overviews

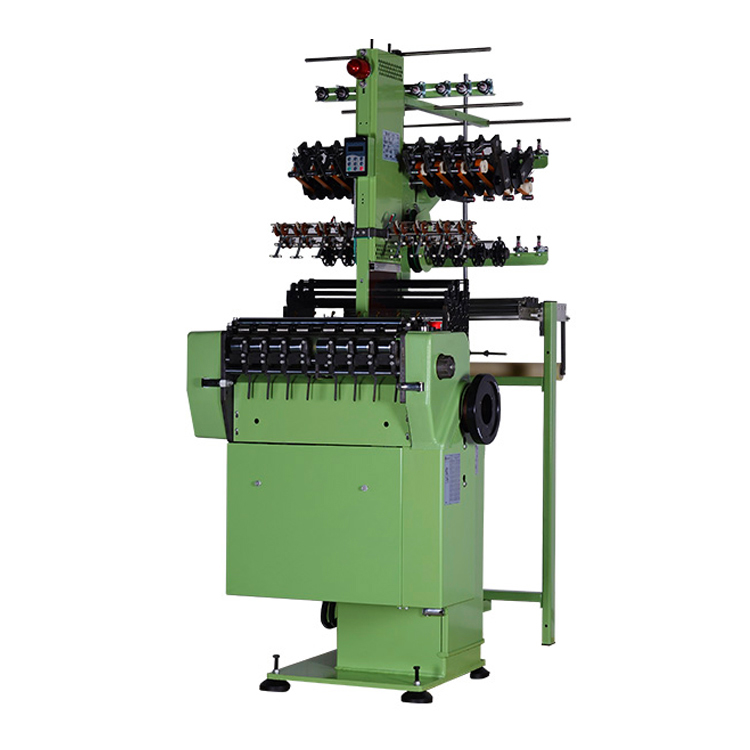

Yongjin - Yongjin high speed elastic band strap and ribbon braiding machine YJ-NF 12/27 3

Yongjin - Yongjin high speed elastic band strap and ribbon braiding machine YJ-NF 12/27 4

YJ-NF series are looms for narrow-width ribbons, which are featured by their high quality, high difficulty and changeability.They can be used to produce various kinds of elastic and non-elastic ribbons, such as chest ribbons, elastic braids for clothes, satin ribbons, zipper ribbons, shoelaces, etc., and can be applied to ready-made clothes, hats, hair accessories, gifts, medical products, leather belts, gloves, raincoats, footwear,cameras, watches and leather bags. With the advanced technology introduced from abroad, this machine is the one for special use to manufacture ribbons of compact design. It is featured by such superior advantages as double-layer weave, double hook, and double weft, and characterized by high efficiency, high economic benefit, convenient operation,good-looking appearance, and smooth movement of comprehensive frames.It is equipped with advanced automatic weft feeding device and double variation speed braking motor which ensures fine tuning of weft feeding when non-stop of machines.When the fabric is adjusted, you can opera at lower speed by fine motion.It is especially applicable for bra ribbons, chest ribbons and common zipper ribbons.It is honored by its wide applicability and wide range of use.

Parameters

Model	NF2/130	NF2/175	NF2/210	NF4/66	NF4/84	NF4/110
Number of tapes	2	2	2	4	4	4
Width of reed	130	175	210	66	84	110
Maximum of tapes	128	170	200	65	80	100
Number of frame	20	20	20	20	20	20
Speed	300-1200 rpm	200-800 rpm	200-500 rpm	600-1500 rpm	500-1200 rpm	500-1000 rpm
Model	NF6/42	NF6/66	NF6/80	NF8/27	NF8/42	NF8/55
Number of tapes	6	6	6	8	8	8
Width of reed	42	66	80	27	42	55
Maximum of tapes	40	65	78	25	40	53
Number of frame	20	20	20	20	20	20
Speed	800-1700 rpm	500-1200 rpm	500-1000 rpm	800-1700 rpm	500-1200 rpm	500-1000 rpm
Model	NF10/27	NF12/27	NF14/25	NF6/42-2	NF8/27-2	NF16/15
Number of tapes	10	12	14	12	16	16
Width of reed	27	27	25	42	27	15
Maximum of tapes	25	25	23	40	25	13
Number of frame	20	20	20	20	20	20
Speed	500-1200 rpm	500-1000 rpm	500-1000 rpm	500-1200 rpm	500-1200 rpm	500-1200 rpm

Main Features

Main Features
1. The machine is suitable for making elastic or non elastic narrow fabrics, likeunderwear ribbon, *shoose lace, shoulder strap, gifts lace.*
2. The width of machine body is 780mm, and the capacity is *1.5 times* that of the conventional model.
3. High speed, can be up to *1100-1300rpm.*
4. *Independent R & D and production* of the machine, effectively control the quality of parts, so that the machine life is long, *stable and reliable.*
5 Stepless frequency conversion motor, *easy to operation, saving labor, protecting the yarns*.
6. The *main brake system (patent no. ZL201320454993.0)* is stable and reliable, can protect yarns.

Main Features

1. The machine is suitable for making elastic or non elastic narrow fabrics, likeunderwear ribbon, shoose lace, shoulder strap, gifts lace.

2. The width of machine body is 780mm, and the capacity is 1.5 times that of the conventional model.

3. High speed, can be up to 1100-1300rpm.

4. Independent R & D and production of the machine, effectively control the quality of parts, so that the machine life is long, stable and reliable.

5 Stepless frequency conversion motor, easy to operation, saving labor, protecting the yarns.

6. The main brake system (patent no. ZL201320454993.0) is stable and reliable, can protect yarns.

Detailed Images

Yongjin - Yongjin high speed elastic band strap and ribbon braiding machine YJ-NF 12/27 5

Yongjin - Yongjin high speed elastic band strap and ribbon braiding machine YJ-NF 12/27 6

Yongjin - Yongjin high speed elastic band strap and ribbon braiding machine YJ-NF 12/27 7
