Make high-quality Warping Machine. Devote to global weaving industry. - Yongjin Machinery

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 1

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 2

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 3

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 4

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 5

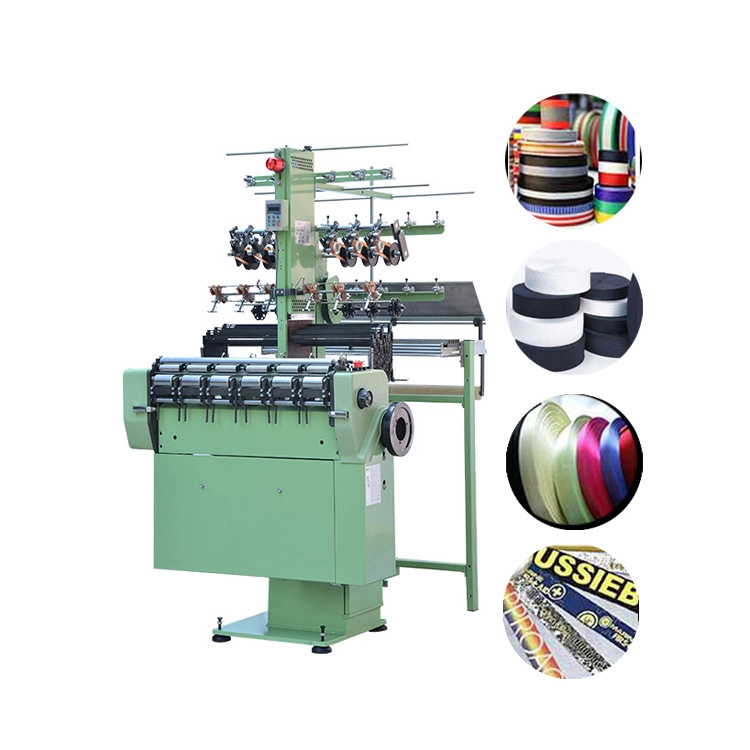

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66

The pragmatic qualities are the weaving machine, jacquard loom, needle loom feature that we mostly focus on. Quality-guaranteed raw materials are adopted to manufacture Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine, which can ensure the product is high-quality from the source. Moreover, relying on high-end technologies and machines, we ensure the product has the superior features and so on.

Customization:

Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

In this era, it is necessary for any enterprise including Guangzhou Yongjin Machinery Co., Ltd. to improve our R&D strength and develop new products on a regular basis. Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine has made great technological breakthroughs because technicians often hold training and technical exchanges to improve professional skills. Relying on our excellent products and sensible marketing strategy,Guangzhou Yongjin Machinery Co., Ltd. hold a firm belief that we will take a large market share in the future and benefit our stakeholders as well.

Applicable Industries:	Garment Shops, Manufacturing Plant, Textile industry	Showroom Location:	Turkey, Viet Nam, Indonesia, Thailand, Bangladesh
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty of core components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump	Condition:	New, New
Type:	Shuttleless loom	Application:	To produce narrow fabrics, To produce narrow fabrics straps/belt/webbing/tape and so on
Production Capacity:	1200 rpm, 300sets / month	Place of Origin:	Guangdong, China
Brand Name:	YongJin, YongJin	Dimension(LWH):	1.411.8, 1.411.8
Weight:	450 KG	Power:	2.2KW
Warranty:	1 Year	Key Selling Points:	Automatic
Commodity name:	Narrow fabric clothing label making machine	Model Number:	YJ-NF 6/66
Place of origin:	GuangZhou, China	Export Markets:	Southeast Asia, the Middle East, Europe and America

Product Description

We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )

Main Features

1. The machine is suitable for making elastic or non elastic narrow fabrics, like underwear ribbon, shoose lace, shoulder strap, gifts lace.

2. The width of machine body is 780mm, and the capacity is 1.5 times that of the conventional model.

3. High speed, can be up to 1100-1300rpm.

4. Independent R & D and production of the machine, effectively control the quality of parts, so that the machine life is long, stable and reliable.

5 Stepless frequency conversion motor, easy to operation, saving labor, protecting the yarns.

6. The main brake system (patent no. ZL201320454993.0) is stable and reliable, can protect yarns.

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 6

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 7

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 8

This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.

Video link
https://youtu.be/80VmuYpsSWg

Product Paramenters

Model	NF2/130	NF2/175	NF2/210	NF4/66	NF4/84	NF4/110
Number of tapes	2	2	2	4	4	4
Width of reed	130	175	210	66	84	110
Maximum of tapes	128	170	200	65	80	100
Number of frames	20	20	20	20	20	20
Speed	300-1200 rpm	200-800 rpm	200-500 rpm	600-1500 rpm	500-1200 rpm	500-1000 rpm

Model	NF6/42	NF6/66	NF6/80	NF8/27	NF8/42	NF8/55
Number of tapes	6	6	6	8	8	8
Width of reed	42	66	80	27	42	55
Maximum of tapes	40	65	78	25	40	53
Number of frame	20	20	20	20	20	20
Speed	800-1700 rpm	500-1200 rpm	500-1000 rpm	800-1700 rpm	500-1200 rpm	500-1000 rpm

Model	NF10/27	NF12/27	NF14/25	NF6/42-2	NF8/27-2	NF16/15
Number of tapes	10	12	14	12	16	16
Width of reed	27	27	25	42	27	15
Maximum of tapes	25	25	23	40	25	13
Number of frame	20	20	20	20	20	20
Speed	500-1200 rpm	500-1000 rpm	500-1000 rpm	500-1200 rpm	500-1200 rpm	500-1200 rpm

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 9

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 10

Recommend Products

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 11

Company Profile

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 12

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 13

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 14

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 15

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 16

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 17

Product packaging

Yongjin - Factory price direct supply high speed automatic curtain tape narrow tape needle loom weaving machine YJ-NF 6/66 18

FAQ

Q1: Are you a factory or trading company?
A1: We are a factory with our own trading department.

Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.

Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.

Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.

Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
