To keep up with the industry development, all employees of Guangzhou Yongjin Machinery Co., Ltd. have been doing their utmost to develop new products for days. The use of the technology contributes to the perfect manufacturing of Yongjin.Yongjin machine for industry production webbing,nylon webbing belt machine needle loom is widely used in the field(s) of Weaving Machines and the like. In the future,Yongjin machine for industry production webbing,nylon webbing belt machine needle loom will always adhere to the road of quality development, increase the investment in technology and talent introduction, always improve the core competitiveness of the enterprise, to achieve the goal of sustainable development.

Product Description

We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )

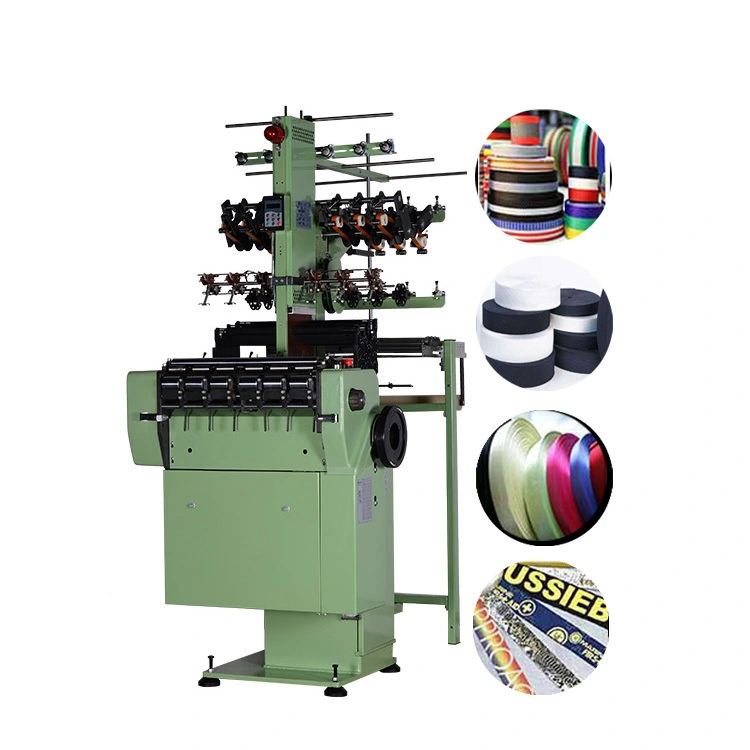

This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.

Video link
https://youtu.be/80VmuYpsSWg

Product Paramenters

Model	NF2/130	NF2/175	NF2/210	NF4/66	NF4/84	NF4/110
Number of tapes	2	2	2	4	4	4
Width of reed	130	175	210	66	84	110
Maximum of tapes	128	170	200	65	80	100
Number of frames	20	20	20	20	20	20
Speed	300-1200 rpm	200-800 rpm	200-500 rpm	600-1500 rpm	500-1200 rpm	500-1000 rpm

Model	NF6/42	NF6/66	NF6/80	NF8/27	NF8/42	NF8/55
Number of tapes	6	6	6	8	8	8
Width of reed	42	66	80	27	42	55
Maximum of tapes	40	65	78	25	40	53
Number of frame	20	20	20	20	20	20
Speed	800-1700 rpm	500-1200 rpm	500-1000 rpm	800-1700 rpm	500-1200 rpm	500-1000 rpm

Model	NF10/27	NF12/27	NF14/25	NF6/42-2	NF8/27-2	NF16/15
Number of tapes	10	12	14	12	16	16
Width of reed	27	27	25	42	27	15
Maximum of tapes	25	25	23	40	25	13
Number of frame	20	20	20	20	20	20
Speed	500-1200 rpm	500-1000 rpm	500-1000 rpm	500-1200 rpm	500-1200 rpm	500-1200 rpm

Main Features

1.The latch-type pattern block is characterized by its precision, firmness, durability, ease of dismounting, no noise in running, and assurance of running at a high speed.
2.The open iron frame construction is a special design whose elastic gel is driven by the upper elasticity. It can run without any noise and progress at high speed. And it can reduce the gravity center , featuring increase of force, reduction of the force on and between the iron frame and the cutters which can assure that the machine runs at a high speed and keep a long service of life.
3.The machine is precisely made, featuring compatibility, durability, ease of operation, free adjustment, fast supply of spare parts, and easse of dismounting and maintenance.
4.The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester, enhancing the lubrication between the cutters and the chained pattern blocks.
5.The variation speed braking motor can make stepless speed regulating and be operated at low seed, which help lessen labor intensity.
6.With “double crocket hook single needle” and “double crocket hook double needle” devices, it can be applied to producing the fabric products like chest ribbons, shoulder ribbons, curtain ribbons, etc.

Recommend Products

Company Profile

Product packaging

FAQ

Q1: Are you a factory or trading company?
A1: We are a factory with our own trading department.

Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.

Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.

Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.

Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
