Yongjin - Factory price v belt making machine,high quality belt making machine YJ-NF 4/66
People with different backgrounds purchase Factory price v belt making machine,high quality belt making machine no matter the budget because of the effectiveness of these product. Different from other products,Factory price v belt making machine,high quality belt making machine really solves the pain points of customers, so as soon as they were launched on the market, they received many good feedbacks. Combining all good performance of adopted raw materials, our Factory price v belt making machine,high quality belt making machine has been proved to be applied to the field(s) of Belt Making Machines.Our staff has tested multiple times that in the applied fields, the product can give out its best performance such as durability and stability.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | Other | Condition: | New, New |
| Place of Origin: | Guangdong, China | Brand Name: | YongJin, YongJin |
| Model Number: | YJ-NF 4/66, YJ-NF 4/66 | Voltage: | 380V |
| Weight: | 500 KG | Dimension(L*W*H): | 1.5m*0.98m*2.1m, 1.5*0.98*2.1m |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Commodity name: | V belt making machine,high quality belt making machine | Application: | To produce narrow fabrics straps/belt/webbing/tape and so on |
| Place of origin: | GuangZhou, China | Production Capacity: | 300sets / month |
| Export Markets: | Southeast Asia, the Middle East, Europe and America |
Factory price v belt making machine,high quality belt making machine
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

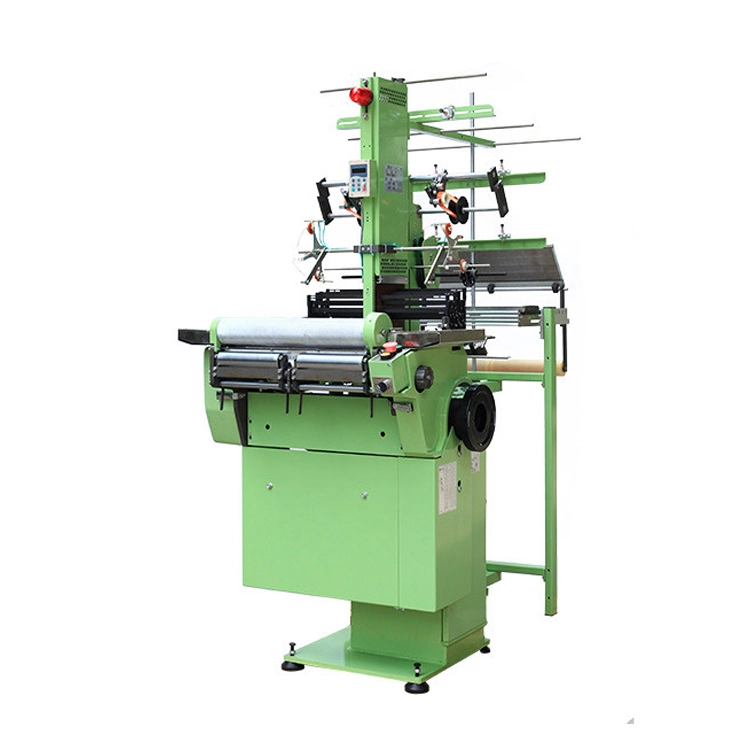

This is the shuttle less loom , this machine is to produce elastic belts, the structure is same as Muller's, over 95% of spare parts can interchange with Muller.

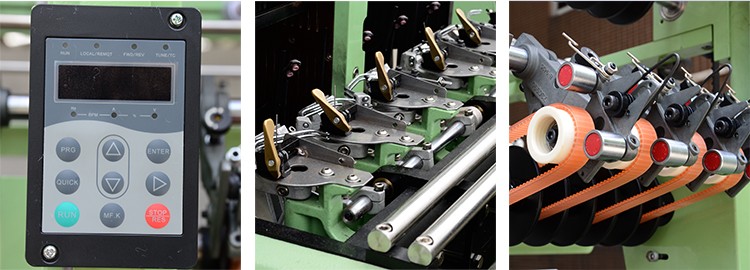

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
| Model | NF2/130 | NF2/175 | NF2/210 | NF4/66 | NF4/84 | NF4/110 |
|
Number of tapes |
2 | 2 | 2 | 4 | 4 | 4 |
| Width of reed | 130 | 175 | 210 | 66 | 84 | 110 |
| Maximum of tapes | 128 | 170 | 200 | 65 | 80 | 100 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed |
300-1200 rpm |
200-800 rpm |
200-500 rpm |
600-1500 rpm |
500-1200 rpm |
500-1000 rpm |
| Model | NF6/42 | NF6/66 | NF6/80 | NF8/27 | NF8/42 | NF8/55 |
| Number of tapes | 6 | 6 | 6 | 8 | 8 | 8 |
| Width of reed | 42 | 66 | 80 | 27 | 42 | 55 |
| Maximum of tapes | 40 | 65 | 78 | 25 | 40 | 53 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed |
800-1700 rpm |
500-1200 rpm |
500-1000 rpm |
800-1700 rpm |
500-1200 rpm |
500-1000 rpm |
| Model | NF10/27 | NF12/27 | NF14/25 | NF6/42-2 | NF8/27-2 | NF16/15 |
| Number of tapes | 10 | 12 | 14 | 12 | 16 | 16 |
| Width of reed | 27 | 27 | 25 | 42 | 27 | 15 |
| Maximum of tapes | 25 | 25 | 23 | 40 | 25 | 13 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed |
500-1200 rpm |
500-1000 rpm |
500-1000 rpm |
500-1200 rpm |
500-1200 rpm |
500-1200 rpm |
| Main Features |
|
1.The latch-type pattern block is characterized by its precision, firmness, durability, ease of dismounting, no noise in running, and assurance of running at a high speed. |
|
2.The open iron frame construction is a special design whose elastic gel is driven by the upper elasticity. It can run without any noise and progress at high speed.And it can reduce the gravity center , featuring increase of force, reduction of the force on and between the iron frame and the cutters which can assure that the machine runs at a high speed and keep a long service of life. |
|
3.The machine is precisely made, featuring compatibility, durability, ease of operation, free adjustment, fast supply of spare parts, and easse of dismounting and maintenance. |
|
4.The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester, enhancing the lubrication between the cutters and the chained pattern blocks. |
|
5.The variation speed braking motor can make stepless speed regulating and be operated at low soeed, which help lessen labor intensity. |
|
6.With “double crocket hook single needle” and “double crocket hook double needle” devices, it can be applied to producing the fabric products like chest ribbons, shoulder ribbons, curtain ribbons, etc. |
