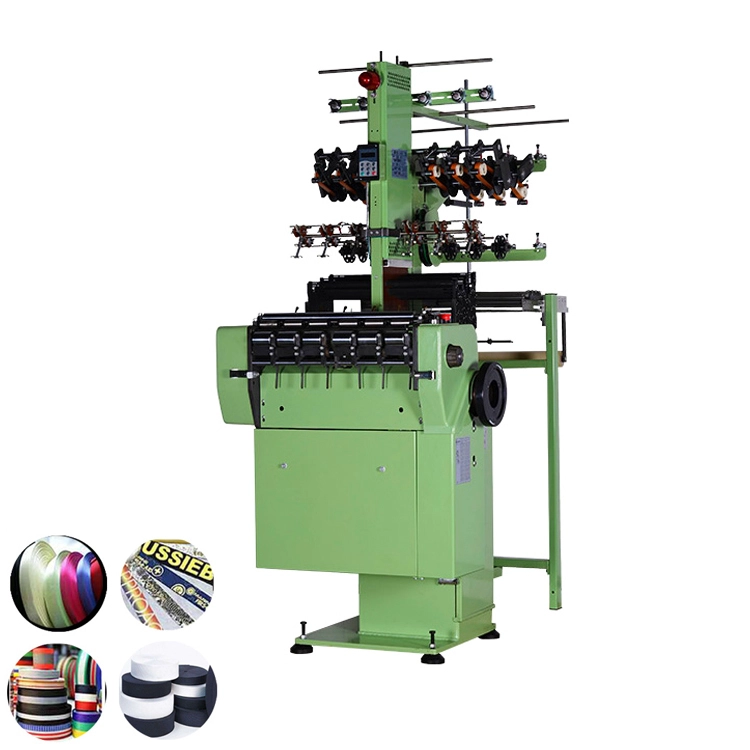

Yongjin - Computerized Narrow Fabric loom the price of modern weaving machines YJ-NF 2/130
Computerized Narrow Fabric loom the price of modern weaving machines is created with fashionable design idea. We pride ourselves on our personalized and efficient service. In the process of continuous entrepreneurial innovation, Guangzhou Yongjin Machinery Co., Ltd. always adhere to the business philosophy of 'quality comes first'. We will grasp the opportunities of the times and always keep up with the industry trends. We believe that one day we will become one of the leading enterprises in the global market.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Condition: | New, New | Type: | Shuttleless Loom |
| Application: | To produce narrow fabrics, To produce narrow fabrics straps/belt/webbing/tape and so on | Production Capacity: | The maximum machine speed:1700, 300sets / month |
| Place of Origin: | Guangdong, China | Brand Name: | YongJin, YongJin |
| Dimension(L*W*H): | 1.4*1*1.8, 1.4*1*1.8 | Weight: | 450kg |
| Power: | 2.2KW | Warranty: | 1 Year |
| Key Selling Points: | Automatic | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | After-sales Service Provided: | Video technical support, Online support, Engineers available to service machinery overseas |
| Certification: | ISO,3C | Commodity name: | High productivity textile spinning machinery |
| Model Number: | YJ-NF 2/130 | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America |
Computerized Narrow Fabric loom the price of modern weaving machines
We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )
| Model | NF2/130 | NF2/175 | NF2/210 | NF4/66 | NF4/84 | NF4/110 |
Number of tapes | 2 | 2 | 2 | 4 | 4 | 4 |
| Width of reed | 130 | 175 | 210 | 66 | 84 | 110 |
| Maximum of tapes | 128 | 170 | 200 | 65 | 80 | 100 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 300-1200 rpm | 200-800 rpm | 200-500 rpm | 600-1500 rpm | 500-1200 rpm | 500-1000 rpm |
| Model | NF6/42 | NF6/66 | NF6/80 | NF8/27 | NF8/42 | NF8/55 |
| Number of tapes | 6 | 6 | 6 | 8 | 8 | 8 |
| Width of reed | 42 | 66 | 80 | 27 | 42 | 55 |
| Maximum of tapes | 40 | 65 | 78 | 25 | 40 | 53 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 800-1700 rpm | 500-1200 rpm | 500-1000 rpm | 800-1700 rpm | 500-1200 rpm | 500-1000 rpm |
| Model | NF10/27 | NF12/27 | NF14/25 | NF6/42-2 | NF8/27-2 | NF16/15 |
| Number of tapes | 10 | 12 | 14 | 12 | 16 | 16 |
| Width of reed | 27 | 27 | 25 | 42 | 27 | 15 |
| Maximum of tapes | 25 | 25 | 23 | 40 | 25 | 13 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 500-1200 rpm | 500-1000 rpm | 500-1000 rpm | 500-1200 rpm | 500-1200 rpm | 500-1200 rpm |
| Main Features |
1.The latch-type pattern block is characterized by its precision, firmness, durability, ease of dismounting, no noise in running, and assurance of running at a high speed. |
2.The open iron frame construction is a special design whose elastic gel is driven by the upper elasticity. It can run without any noise and progress at high speed.And it can reduce the gravity center , featuring increase of force, reduction of the force on and between the iron frame and the cutters which can assure that the machine runs at a high speed and keep a long service of life. |
3.The machine is precisely made, featuring compatibility, durability, ease of operation, free adjustment, fast supply of spare parts, and easse of dismounting and maintenance. |
4.The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester, enhancing the lubrication between the cutters and the chained pattern blocks. |
5.The variation speed braking motor can make stepless speed regulating and be operated at low soeed, which help lessen labor intensity. |
6.With “double crocket hook single needle” and “double crocket hook double needle” devices, it can be applied to producing the fabric products like chest ribbons, shoulder ribbons, curtain ribbons, etc. |
 |
|
Application:
It can be applied to produce jacquard elastic and non-elastic knitting fabric and ornaments such as
chest ribbons , elastic braids for clothes ,satin ribbons, zipper ribbons, shoelaces that are widely used in ready garments, headwear, hair ornaments, gifts, medical products, belts, gloves and so on.
Advantage:
1,the open warp is horizontal construction. The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine
2,The integration solenoid valve setting is small in size and sensitive while working
3,Being the most advanced micro electronic jacquard unit ,its construction is simple and compact ,
and it is easy to maintain
4,The tension of warp is controlled automatically with the help of advanced technology
5,The women flower shape is showed on windows directly and clearly
6,The easy-dismounting construction of monofilament can lessen the workers’ labor intensity
7,The unique CAD printmaking system for woven tape is easy-to- use and is featured by the externally self-locking.
| Packing | 1 set of loom per standard wooden case |
| Payment terms | T/T, L/C.Western Union. |
Delivery of time | The delivery time is 20 days for one 20ft container.25 days for one 40ft container
|
Port | Guangzhou port.
|
