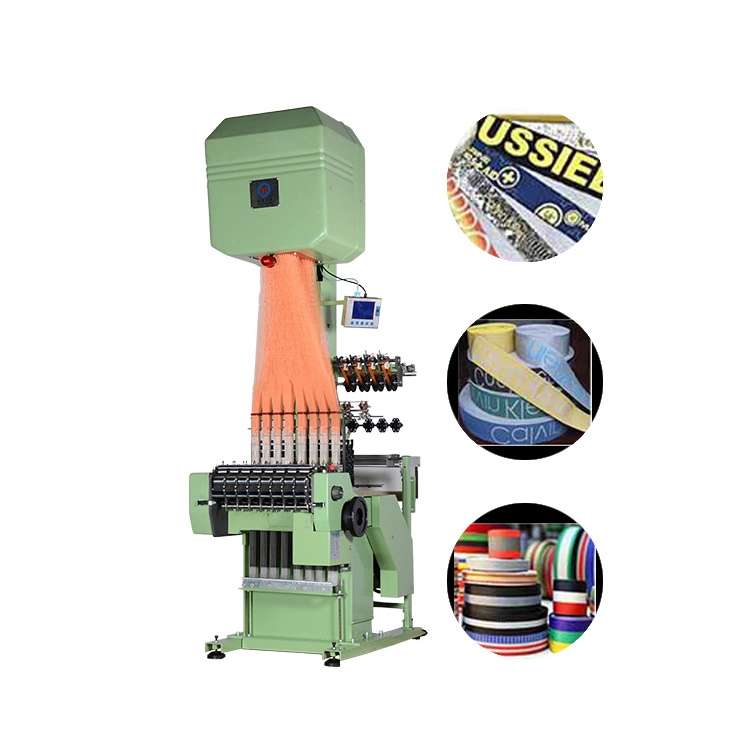

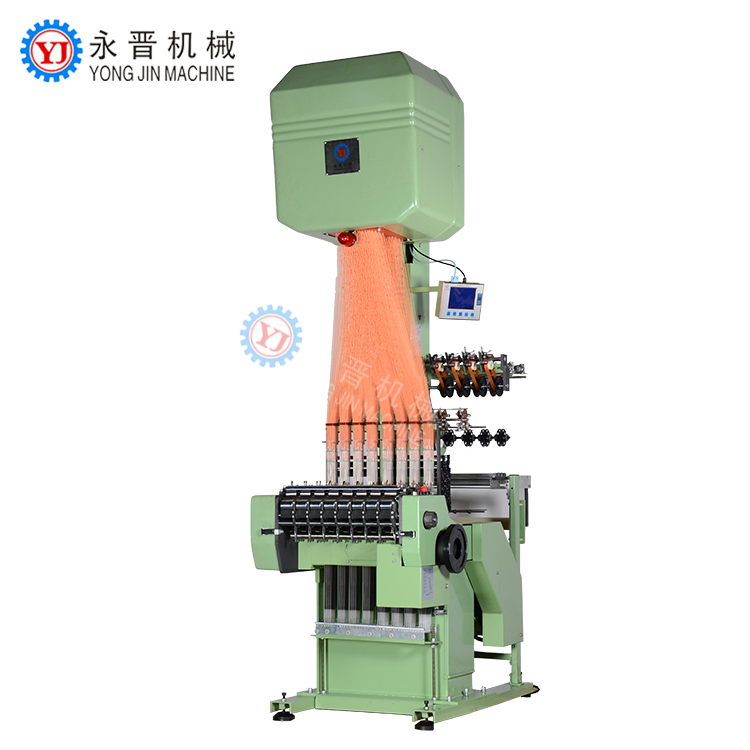

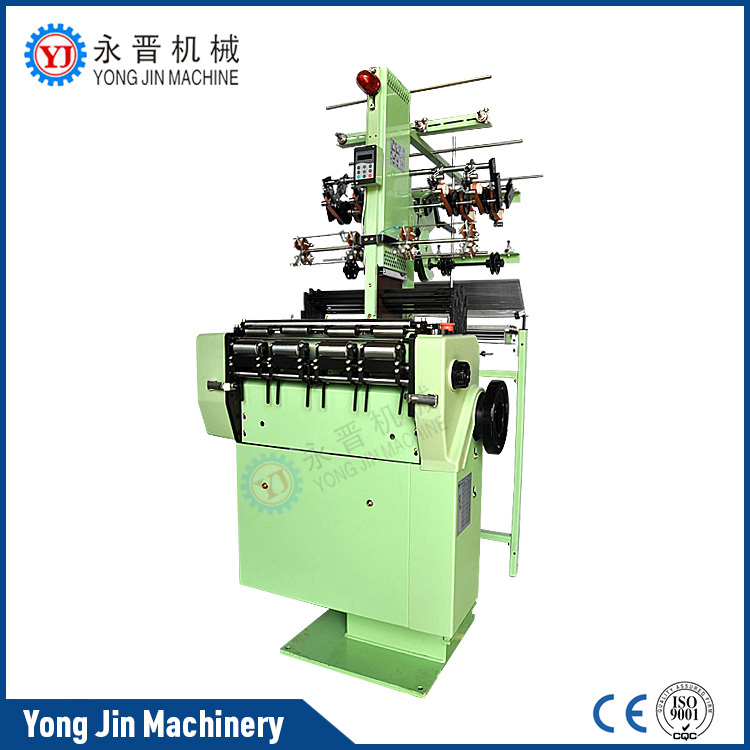

Yongjin - Hot sale ribbon lace jacquard machine YJ-TNF 8/27
Guangzhou Yongjin Machinery Co., Ltd. devotes many years to developing and producing superb Hot sale ribbon lace jacquard machine as well as offering professional customer service. It's designed out of the needs of our customers. By gathering the elites in the industry together,Guangzhou Yongjin Machinery Co., Ltd. aim to make full use of their wisdom and experience to develop and manufacture competitive products. Our great wish is to become a leading enterprise on a global scale.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile Industry | Condition: | New, New |
| Product Type: | Belt | Type: | jacquard |
| Production Capacity: | 1200rpm, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | Yongjin, YongJin | Power: | 2.2kw |
| Knitting Style: | Flat | Knitting Method: | Double&Single |
| Computerized: | NO | Weight: | 850kg |
| Dimension(L*W*H): | 1500*980*2600mm, 1.5*0.98*2.6m | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Gauge: | other |
| Knitting width: | 27mm | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
| Warranty of core components: | 1 Year | Core Components: | Motor, Gear, Pump |
| After-sales Service Provided: | Engineers available to service machinery overseas, Online support, Free spare parts | Commodity name: | Hot sale ribbon lace jacquard machine |
| Model Number: | YJ-TNF8/27 | Application: | It can be used To produce jacquard elastic and non-elastic webbing |
| Place of origin: | GuangZhou, China | Export Markets: | Southeast Asia, the Middle East, Europe and America |
| After Warranty Service: | Video technical support, Online support | Local Service Location: | Turkey, Thailand |
| Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
Hot sale ribbon lace jacquard machine
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
This is jacquard loom to produce shoulder strap, belt, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.
TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.
TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare.
Advantage:
1) Yongjin needle loom is with stable quality, low noise, and durable working condition. It supplies customer high economic efficiency.
2) Automatic lubrication device and automatic tension feeding system provide effective control over high quality fabric while saving time and labor for the user.
3) Drive belt and change gear to perform stabilized transmission of bottom weft and provide wider range of fabrics which be more superior in quality.
4) Convertible machine parts supported with various devices to provide wider range of fabrics multi-purpose for single machine as well.
5) Heald frame in double-load, double shedding lever, twin pattern chain transmission configuration of shaft and gear has been reinforced.
| Model | TNF8/27A | TNF6/42A | TNF6/42B | TNF4/66A |
| Number of hooks | 192/240 | 192/240/320/384 | 384/448/480/512 | 192/240/320/384 |
| Number of tapes | 8 | 6 | 6 | 4 |
| Width of reed | 27 | 42 | 42 | 66 |
| Maximum of tapes | 25 | 40 | 40 | 62 |
| Number of frame | 12 | 12 | 12 | 12 |
| Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Model | TNF4/66B | TNF6/55A | ||
| Number of hooks | 384/448/320/512/640/720 | 192 | ||
| Number of tapes | 4 | 6 | ||
| Width of reed | 66 | 27 | ||
| Maximum of tapes | 64 | 25 | ||
| Number of frame | 12 | 12 | ||
| Circulation | 1:8/16-32 | 1:8/16-32 | ||
| Speed | 500-1200rpm | 500-1200rpm | ||
