Yongjin - Factory price professional supply electronic computerized jacquard loom weaving machine for curtain tape YJ-TNF 8/42

Guangzhou Yongjin Machinery Co., Ltd. can provide the most efficient services and Factory price professional supply electronic computerized jacquard loom weaving machine for curtain tape with the highest quality and most affordable price. By virtue of continuous technological innovation, we have mastered the core and most advanced technology in the industry, and will use advanced technology to produce Factory price professional supply electronic computerized jacquard loom weaving machine for curtain tape, effectively solving the pain points that have always plagued the industry. Guided by market forces,Guangzhou Yongjin Machinery Co., Ltd. will use a comprehensive range of measures to enhance our strength. For example, we will invest heavily in the R&D project and keep developing new products so as to lead the market trend.

Product Description

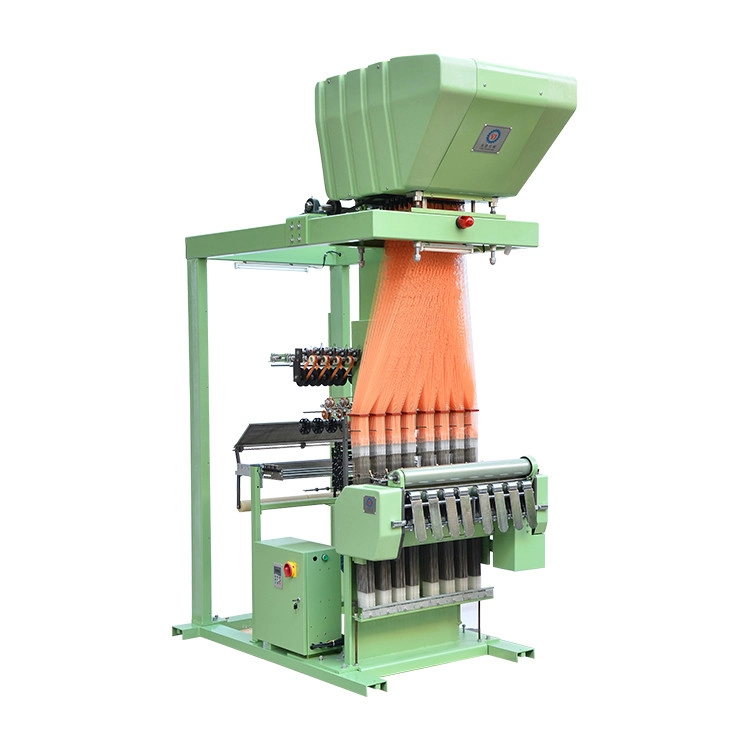

Yongjin High Speed Flat Computerized Jacquard Loom Machine

This is jacquard loom to produce narrow fabric,shoulder strap, belt, band etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.

Main Features

1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine.

2.The integration solenoid valve setting is small in size and sensitive while working.

3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain.

4.The tension of warp is controlled automatically with the help of advanced technology

5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity.

6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking.

7.The woven flower shape is showed on windows directly and clearly.

8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens.

Factory production photo：

Product Paramenters

Model	TNF8/42-192A	TNF8/42-240A	TNF8/42-384A
Number of hooks	192	240	384
Number of tapes	8	8	8
Width of reed	42	42	42
Maximum of tapes	40	40	40
Number of frame	12	12	12
Circulation	1:8/16-32	1:8/16-32	1:8/16-32
Speed	500-1200rpm	500-1200rpm	500-1200rpm
Width of machine	1000mm	1000mm	1000mm
Height of machine	3000mm	3000mm	3000mm
Length of machine	2600mm	2600mm	2600mm
Weight of machine	1000kg	1100kg	1100kg
Power	2.2kw	2.2kw	2.2kw
Voltage	380V	380V	380V
Above table only shows few machine models, more models welcome to contact us directly.

Recommend Products

Company Profile

FAQ

Q1: Are you a factory or trading company?
A1: We are a factory with our own trading department.

Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.

Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.

Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.

Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
