Yongjin - TNF series high speed automatic computerized elastic band twill tape jacquard loom weaving machine Flat Computerized Jacquard Loom

As a driven company,Guangzhou Yongjin Machinery Co., Ltd. has been developing products on our own on a regular basis, one of which is weaving machine, jacquard loom, needle loom.It is the newest product and bound to bring benefits to customers. Our product can be tailored to suit you perfectly. Guangzhou Yongjin Machinery Co., Ltd. will always adhere to the business philosophy of honesty, innovation, integrity to run our business. We believe that with the combined efforts of all our employees, we have enough skills and capabilities to overcome all obstacles and difficulties to make some achievements in the future.

Product Description

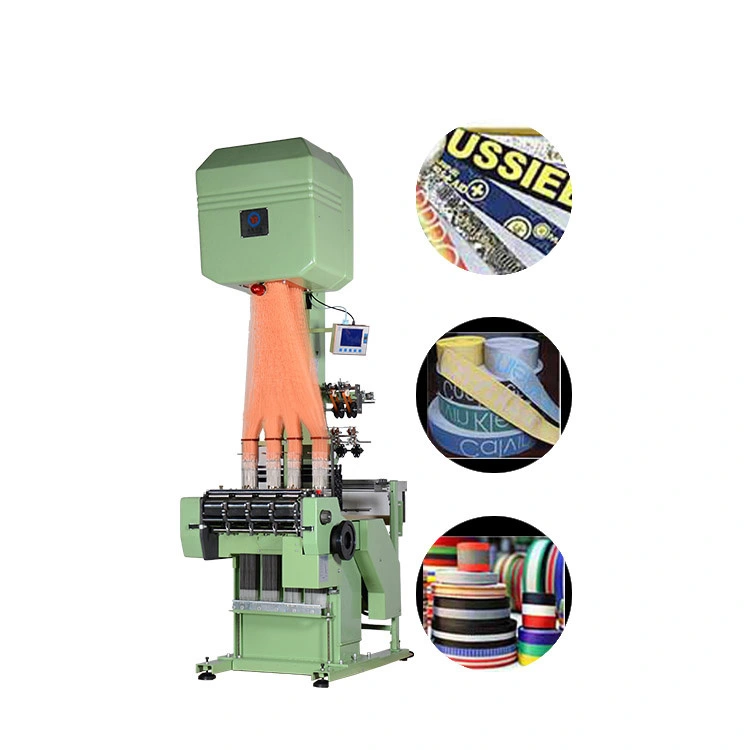

Yongjin High Speed Flat Computerized Jacquard Loom Machine

This is jacquard loom to produce narrow fabric,shoulder strap, belt, band etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.

Main Features

1. Harness minimum 192 hooks, maximum 1056 hooks, can make diversify tapes.

2. The machine installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

3. Independent development jacquard head, high precision & wear-resistant.

4. Bakeltie board & Harness are imported from Switzerland, the heald is imported from Italy.

5 Using import bearing on machines, INA bearing from Germany & NSK bearing from Japan.

6. High speed, can be up to 900-1200rpm, increasing the capacity.

Factory production photo：

Product Paramenters

Model	TNF4/66-192A	TNF4/66-240A	TNF4/66-320A	TNF4/66-384A	TNF6/42-192A	TNF8/27-192A
Length of frame	530mm	530mm	530mm	530mm	530mm	530mm
Number of tapes	4	4	4	4	6	8
Width of reed	66	66	66	66	42	27
Maximum of tapes	64	64	64	64	40	25
Number of frame	12	12	12	12	12	12
Circulation	1:8/16-32
Speed	500-1200pm
Size of machine	980×1500×2100mm
Weight of machine	850kg
Power/Voltage	1.5kw/380v
Above table only shows few machine models, more models welcome to contact us directly.

Recommend Products

Company Profile

Product packaging

FAQ

Q1: Are you a factory or trading company?
A1: We are a factory with our own trading department.

Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.

Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.

Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.

Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
