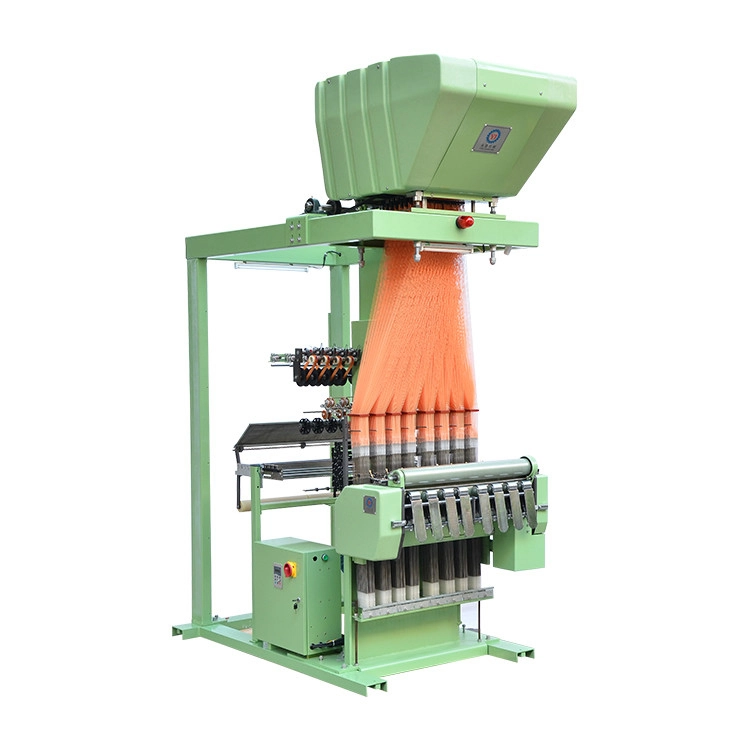

Yongjin - Factory price direct sale high speed computerized automatic narrow fabric jacquard loom weaving machine YJ-TNF 8/42

People with different backgrounds purchase Factory price direct sale high speed computerized automatic narrow fabric jacquard loom weaving machine no matter the budget because of the effectiveness of these product. We offer buyer Factory price direct sale high speed computerized automatic narrow fabric jacquard loom weaving machine that they need at prices that fit their pocket. Guangzhou Yongjin Machinery Co., Ltd. will keep focusing on customers' needs and keep up with the industry trends so as to develop Factory price direct sale high speed computerized automatic narrow fabric jacquard loom weaving machine that better satisfy customers. Our wish is to cover a wide range of global markets and win wider recognition from customers all over the world.

VR

Product Description

We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

Main Features

1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine.

2.The integration solenoid valve setting is small in size and sensitive while working.

3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain.

4.The tension of warp is controlled automatically with the help of advanced technology

5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity.

6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking.

7.The woven flower shape is showed on windows directly and clearly.

8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens.

This is jacquard loom to produce shoulder strap, belt, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.

TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.

TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.

Video link
https://youtu.be/80VmuYpsSWg

Product Paramenters

Model	TNF8/42-192A	TNF8/42-240A	TNF8/42-384A
Number of hooks	192	240	384
Number of tapes	8	8	8
Width of reed	42	42	42
Maximum of tapes	40	40	40
Number of frame	12	12	12
Circulation	1:8/16-32	1:8/16-32	1:8/16-32
Speed	500-1200rpm	500-1200rpm	500-1200rpm
Width of machine	1000mm	1000mm	1000mm
Height of machine	3000mm	3000mm	3000mm
Length of machine	2600mm	2600mm	2600mm
Weight of machine	1000kg	1100kg	1100kg
Power	2.2kw	2.2kw	2.2kw
Voltage	380V	380V	380V

Model	TNF8/27A	TNF6/42A	TNF6/42B	TNF4/66A
Number of hooks	192/240	192/240/320/384	384/448/480/512	192/240/320/384
Number of tapes	8	6	6	4
Width of reed	27	42	42	66
Maximum of tapes	25	40	40	62
Number of frame	12	12	12	12
Circulation	1:8/16-32	1:8/16-32	1:8/16-32	1:8/16-32
Speed	500-1200rpm	500-1200rpm	500-1200rpm	500-1200rpm

Model	TNF4/66B	TNF6/55A
Number of hooks	384/448/320/512/640/720	192
Number of tapes	4	6
Width of reed	66	27
Maximum of tapes	64	25
Number of frame	12	12
Circulation	1:8/16-32	1:8/16-32
Speed	500-1200rpm	500-1200rpm

Recommend Products

Company Profile

Product packaging

FAQ

Q1: Are you a factory or trading company?
A1: We are a factory with our own trading department.

Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.

Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.

Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.

Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
