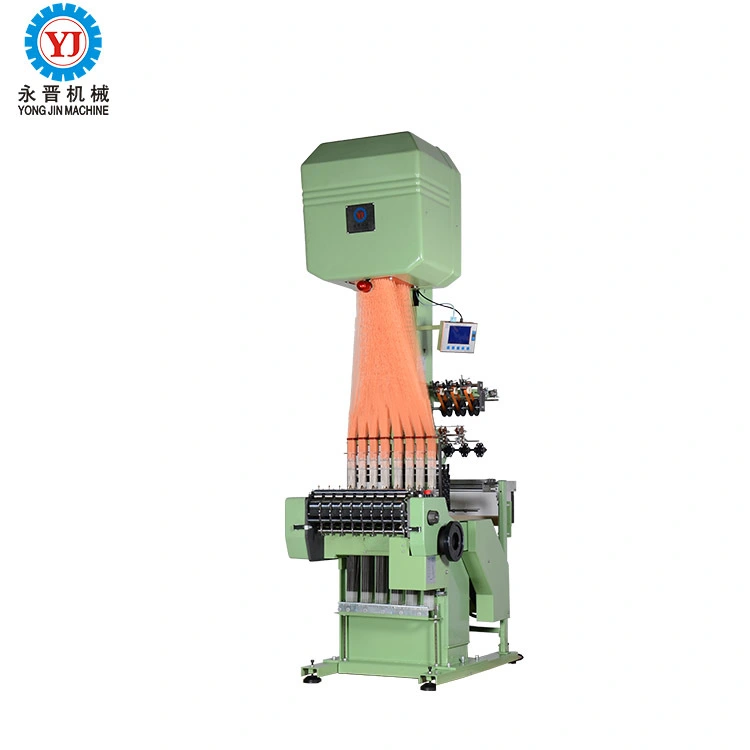

Yongjin - New Condition electronic jacquard machine weaving machine Flat Computerized Jacquard Loom
Guangzhou Yongjin Machinery Co., Ltd. In-depth analysis of the actual needs of target customers, combined with its own advantages resources, successfully developed New Condition electronic jacquard machine weaving machine. The product is characterized by multiple advantages.Its application ranges have been expanded to the Weaving Machines. Guangzhou Yongjin Machinery Co., Ltd. will fully act on the important thought of the 'quality first and customer foremost' and keep pace with the times to promote the innovation capabilities of our company. We will forge valiantly ahead and achieve our goal of being the leading enterprise in the global market.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | Motor | Condition: | New, New |
| Type: | Jacquard Loom | Application: | tape,strap,belt,webbing, It can be used To produce jacquard elastic and non-elastic webbing |
| Production Capacity: | 1200rpm, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | YJ, YongJin | Dimension(L*W*H): | 1500*980*2600mm, 1.5*0.98*2.6m |
| Weight: | 850kg | Power: | 2.2kw |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| After-sales Service Provided: | Engineers available to service machinery overseas, Video technical support, Online support | Commodity name: | New Condition electronic jacquard machine weaving machine |
| Model Number: | TNF8/27 | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | Certification: | CE |
New Condition electronic jacquard machine weaving loom
We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )
This is jacquard loom to produce shoulder strap,elastic underwear belt, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.
TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.
TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS
Besides, we installed the inverter system, can control the speed easily to stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
https://youtu.be/80VmuYpsSWg
| Model | TNF8/27A | TNF6/42A | TNF6/42B | TNF4/66A |
| Number of hooks | 192/240 | 192/240/320/384 | 384/448/480/512 | 192/240/320/384 |
| Number of tapes | 8 | 6 | 6 | 4 |
| Width of reed | 27 | 42 | 42 | 66 |
| Maximum of tapes | 25 | 40 | 40 | 62 |
| Number of frame | 12 | 12 | 12 | 12 |
| Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Model | TNF4/66B | TNF6/55A | ||
| Number of hooks | 384/448/320/512/640/720 | 192 | ||
| Number of tapes | 4 | 6 | ||
| Width of reed | 66 | 27 | ||
| Maximum of tapes | 64 | 25 | ||
| Number of frame | 12 | 12 | ||
| Circulation | 1:8/16-32 | 1:8/16-32 | ||
| Speed | 500-1200rpm | 500-1200rpm | ||
| Main Features |
|
1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine. |
|
2.The integration solenoid valve setting is small in size and sensitive while working. |
|
3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain. |
|
4.The tension of warp is controlled automatically with the help of advanced technology |
|
5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity. |
|
6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking. |
|
7.The woven flower shape is showed on windows directly and clearly. |
|
8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens. |
Application:
It can be used to produce various of elastic and non-elastic ribbons, such as chest ribbons , elastic
braids for clothes ,satin ribbons, zipper ribbons, shoelaces that are widely used in ready garments, headwear, hair ornaments, gifts, medical products, belts, gloves and so on.
Advantage:
1,The latch-type pattern block is characterized by its precision ,firmness,durability, ease of
dismounting, no noise in running ,and assurance of running at a high speed.
2,The open iron frame construction is a special design whose elastic gel is driven by the upper elas- ticity .it can reduce the gravity center,featuring increase of force,reduction of the force on and
between the iron frame and the cutters which can assure that the machine runs at a high speed
and keep a long service of life.
3,The machine is precisely made, featuring compatibility, durability, ease of operation, free adjustm- ent, fast supply of spare parts, and ease of dismounting and maintenance.
4,The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester,
enhancing the lubrication between the cutters and the chained pattern blocks.
5,With “double crocket hook single needle”and “double crocket hook double needle” devices, it can be applied to producing the fabric products like chest ribbons, shoulder ribbons, curtain ribbons and so on.
| Products association | Click for more information |
|
Electronic jacquard loom machine |
Narrow fabric weaving loom |
| About us | Warmly welcome to visit our factory |
Strict and complete production process:
We have implemented a strict and complete production process, which strictly following
the ISO 9001 standards for the production. What’s more, all of our products have been
strictly inspected before shipment.
| Company Culture | Win-win cooperation |
| Shipping & Payment |
|
Packing |
1 set of loom per standard wooden case |
|
Payment terms |
T/T, L/C.Western Union. |
|
Delivery of time |
The delivery time is 20 days for one 20ft container.25 days for one 40ft container
|
|
Port |
Guangzhou port.
|
