Yongjin - China manufacturer narrow woven elastic jacquard needle loom best+computer jacquard tape machine YJ-TNF 8/27

As a driven company,Guangzhou Yongjin Machinery Co., Ltd. has been developing products on our own on a regular basis, one of which is weaving machine, jacquard loom, needle loom.It is the newest product and bound to bring benefits to customers. China manufacturer narrow woven elastic jacquard needle loom best+computer jacquard tape machine can help companies stand out in a fiercely competitive environment and become the industry leader in one fell swoop. After years of growth and development,Guangzhou Yongjin Machinery Co., Ltd. have constructed characteristic corporate culture systems and confirmed our business principle of 'customer first'. We will always focus on customers' needs and promise that we will provide the most satisfying and valuable products.

Product Description

We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

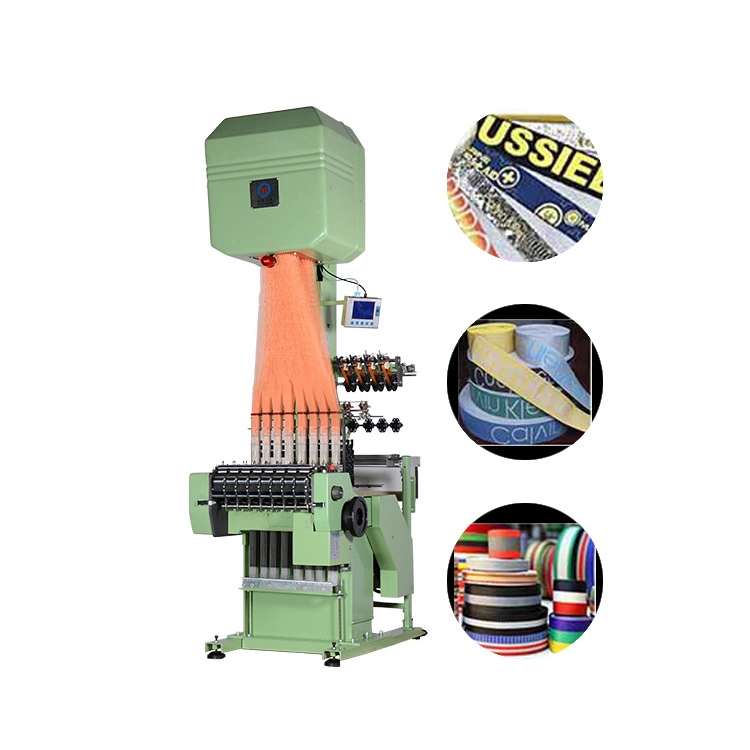

This is jacquard loom to produce shoulder strap, belt, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.

TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.

TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.

Video link
https://youtu.be/80VmuYpsSWg

Main Features

1. Harness minimum 192 hooks, maximum 1056 hooks, can make diversify tapes.

2. The machine installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

3. Independent development jacquard head, high precision & wear-resistant.

4. Bakeltie board & Harness are imported from Switzerland, the heald is imported from Italy.

5 Using import bearing on machines, INA bearing from Germany & NSK bearing from Japan.

6. High speed, can be up to 900-1200rpm, increasing the capacity.

Product Paramenters

Model	TNF8/27A	TNF6/42A	TNF6/42B	TNF4/66A
Number of hooks	192/240	192/240/320/384	384/448/480/512	192/240/320/384
Number of tapes	8	6	6	4
Width of reed	27	42	42	66
Maximum of tapes	25	40	40	62
Number of frame	12	12	12	12
Circulation	1:8/16-32	1:8/16-32	1:8/16-32	1:8/16-32
Speed	500-1200rpm	500-1200rpm	500-1200rpm	500-1200rpm

Model	TNF4/66B	TNF6/55A
Number of hooks	384/448/320/512/640/720	192
Number of tapes	4	6
Width of reed	66	27
Maximum of tapes	64	25
Number of frame	12	12
Circulation	1:8/16-32	1:8/16-32
Speed	500-1200rpm	500-1200rpm

Recommend Products

Company Profile

Product packaging

FAQ

Q1: Are you a factory or trading company?
A1: We are a factory with our own trading department.

Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.

Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.

Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.

Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
