Yongjin - YJ-TNF 4/66 pp nylon jacquard loom elastic twill tape weaving machine YJ-TNF 4/66
Everyone needs YJ-TNF 4/66 pp nylon jacquard loom elastic twill tape weaving machine, and we can offer you the best quality product of the world. It is designed to meet the industry criterion. Therefore, for those buyers looking to buy YJ-TNF 4/66 pp nylon jacquard loom elastic twill tape weaving machine in bulk quantity for their business, buying them from a reputable manufacturer would be a wise choice.
| Applicable Industries: | Garment Shops, Manufacturing Plant, textile factory | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | Other | Condition: | New, New |
| Type: | Jacquard Loom | Application: | To produce narrow fabrics, To produce narrow fabrics straps/belt/webbing/tape and so on |
| Production Capacity: | 1200 rpm, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | YongJin, YongJin | Dimension(L*W*H): | 1.5*0.98*2.6M, 1.5*0.98*2.6M |
| Weight: | 1000 KG | Power: | 2.2KW |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Commodity name: | Jacquard needle loom | Model Number: | YJ-TNF 4/66 |
| Place of origin: | GuangZhou, China | Export Markets: | Southeast Asia, the Middle East, Europe and America |
| Certification: | ISO,3C |
Long life span wheel label jacquard needle loom muller
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

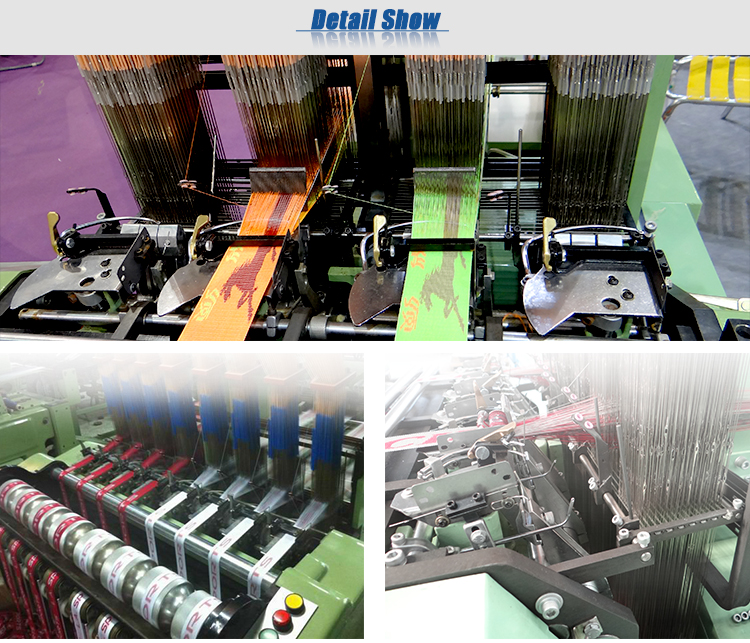

This is jacquard loom to produce shoulder strap, belt, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.
TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.
TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
| Model | TNF8/27A | TNF6/42A | TNF6/42B | TNF4/66A |
| Number of hooks | 192/240 | 192/240/320/384 | 384/448/480/512 | 192/240/320/384 |
| Number of tapes | 8 | 6 | 6 | 4 |
| Width of reed | 27 | 42 | 42 | 66 |
| Maximum of tapes | 25 | 40 | 40 | 62 |
| Number of frame | 12 | 12 | 12 | 12 |
| Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Model | TNF4/66B | TNF6/55A | ||
| Number of hooks | 384/448/320/512/640/720 | 192 | ||
| Number of tapes | 4 | 6 | ||
| Width of reed | 66 | 27 | ||
| Maximum of tapes | 64 | 25 | ||
| Number of frame | 12 | 12 | ||
| Circulation | 1:8/16-32 | 1:8/16-32 | ||
| Speed | 500-1200rpm | 500-1200rpm | ||
| Main Features |
|
1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine. |
|
2.The integration solenoid valve setting is small in size and sensitive while working. |
|
3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain. |
|
4.The tension of warp is controlled automatically with the help of advanced technology |
|
5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity. |
|
6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking. |
|
7.The woven flower shape is showed on windows directly and clearly. |
|
8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens. |
