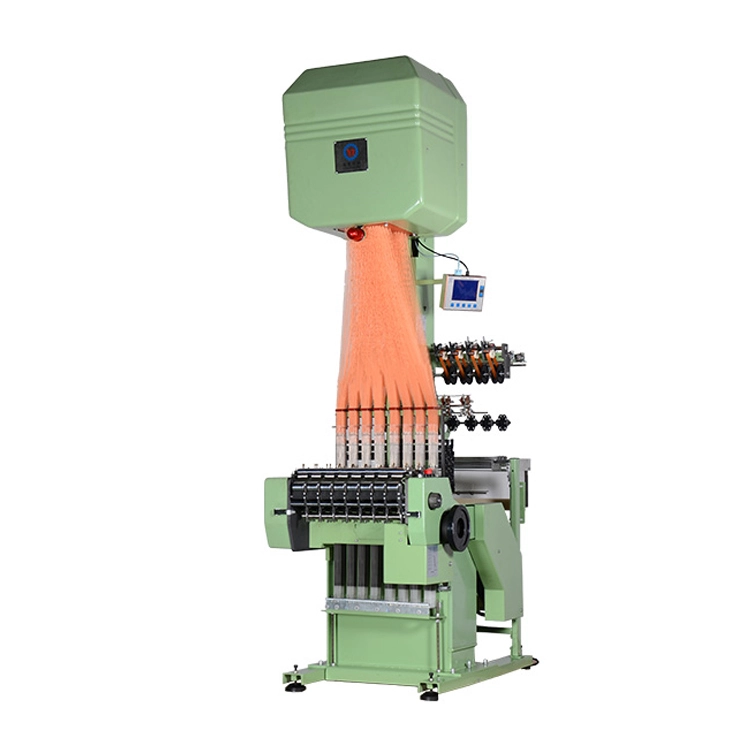

Yongjin - New product custom design mini jacquard knitting machines YJ-TNF 4/66
Since established, Guangzhou Yongjin Machinery Co., Ltd. has placed a great deal of emphasis on new product development.weaving machine, jacquard loom, needle loom, which is recently developed by us, will be officially sold at very competitive prices. Our company has been investing heavily in R&D and upgrades of technologies. This has given initial results eventually. As New product custom design mini jacquard knitting machines advantages are discovered continually, it has been widely used in the field(s) of Knitting Machines. The research and development of New product custom design mini jacquard knitting machines has further improved the company's market competitiveness.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Condition: | New, New |
| Product Type: | Belt | Type: | jacquard |
| Production Capacity: | 1200rpm, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | Yongjin, YongJin | Power: | 2.2kw |
| Knitting Style: | Flat | Knitting Method: | Double&Single |
| Computerized: | NO | Weight: | 850kg |
| Dimension(L*W*H): | 1500*980*2600mm, 1.5*0.98*2.6m | Warranty: | 1 Year |
| Key Selling Points: | Automatic | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| After-sales Service Provided: | Online support, Free spare parts, Engineers available to service machinery overseas | Commodity name: | New product custom design mini jacquard knitting machines |
| Model Number: | YJ-TNF4/66 | Application: | It can be used To produce jacquard elastic and non-elastic webbing |
| Place of origin: | GuangZhou, China | Export Markets: | Southeast Asia, the Middle East, Europe and America |
New product custom design mini jacquard knitting machines
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
| Model | TNF8/27A | TNF6/42A | TNF6/42B | TNF4/66A |
| Number of hooks | 192/240 | 192/240/320/384 | 384/448/480/512 | 192/240/320/384 |
| Number of tapes | 8 | 6 | 6 | 4 |
| Width of reed | 27 | 42 | 42 | 66 |
| Maximum of tapes | 25 | 40 | 40 | 62 |
| Number of frame | 12 | 12 | 12 | 12 |
| Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Model | TNF4/66B | TNF6/55A | ||
| Number of hooks | 384/448/320/512/640/720 | 192 | ||
| Number of tapes | 4 | 6 | ||
| Width of reed | 66 | 27 | ||
| Maximum of tapes | 64 | 25 | ||
| Number of frame | 12 | 12 | ||
| Circulation | 1:8/16-32 | 1:8/16-32 | ||
| Speed | 500-1200rpm | 500-1200rpm | ||
| Main Features |
1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine. |
2.The integration solenoid valve setting is small in size and sensitive while working. |
3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain. |
4.The tension of warp is controlled automatically with the help of advanced technology |
5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity. |
6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking. |
7.The woven flower shape is showed on windows directly and clearly. |
8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens. |
