Yongjin - Factory price elastic making machine, elastic machine price Flat Computerized Jacquard Loom
Guangzhou Yongjin Machinery Co., Ltd. has gained a remarkable position in the concerned industry through years of efforts, and there is a great possibility that the company will achieve a greater advancement in the future. We can provide you with the highest quality products within your budget. Since our inception, Guangzhou Yongjin Machinery Co., Ltd. have been striving forward with the aim of being a leading company in the globe. We will focus more on improving our R&D capabilities and upgrading technologies in order to develop more creative products, therefore leading the industry trends and keeping us competitive in the market.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | Engine, Gearbox, Motor, Gear, Pump | Condition: | New, New |
| Type: | Jacquard Loom | Application: | Elastic and non-elastic belts, It can be used to produce jacquard elastic and non-elastic webbing |
| Production Capacity: | The maximum machine speed:1200, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | YongJin, YongJin | Dimension(L*W*H): | 1500*980*2600 |
| Weight: | 890kg | Power: | 2.2KW |
| Warranty: | 1 Year, 12 month | Key Selling Points: | Automatic |
| After-sales Service Provided: | Engineers available to service machinery overseas, Video technical support, Online support | Commodity name: | jacquard Elastic making machine |
| Model Number: | YJ-TNF | Place of origin: | GuangZhou, China |
| Speed: | The maximum machine speed:1200 | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | Certification: | 3C,ISQ,CE |
Factory price elastic making machine, elastic machine price
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

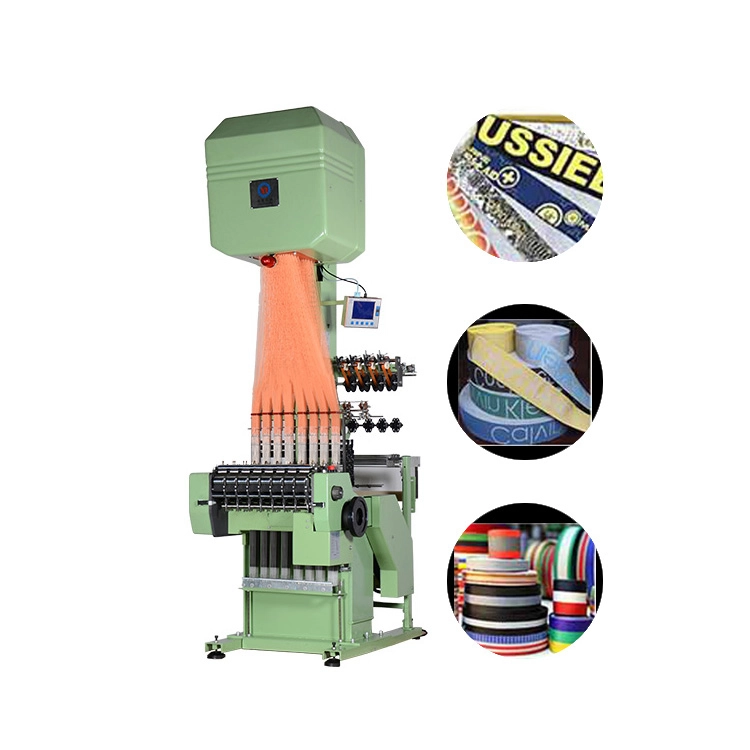

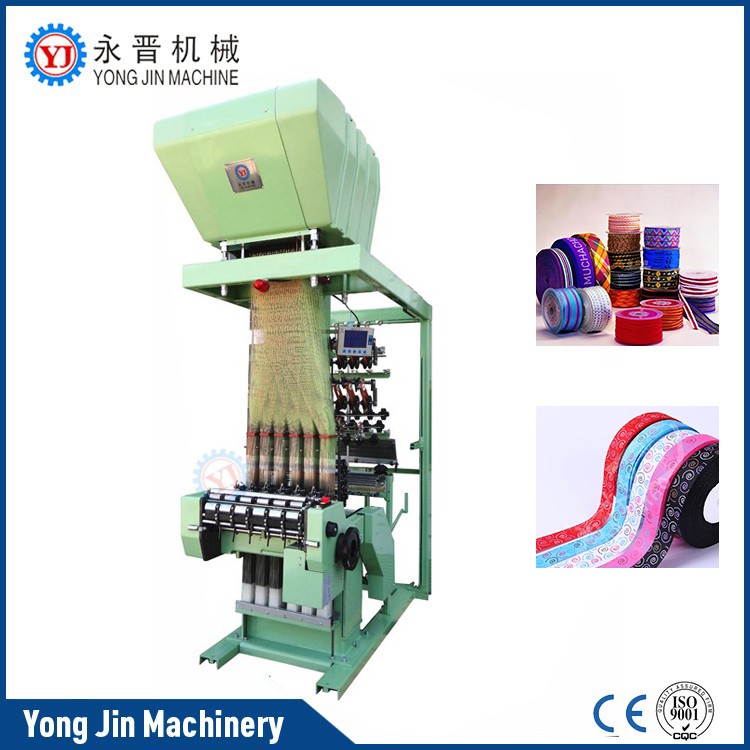

It can be used to produce the patterns, characters and bytes for the jacquard elastic and non-elastic narrow-breadth knitting fabric and ornaments.The patterns scope cover from 192 ropes and 12 pieces in iron frame control. It can be applied to produce jacquard elastic and non-elastic narrow-breadth knitting fabric and ornaments such as chest ribbons, elastic braids for clothes, satin ribbons, zipper ribbons, shoelaces that are widely used in ready garments, headwear,hair ornaments, gifts, medical products, belts ,gloves, raincoats, footwear,cameras, watches and leather bags, and so on.
the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.
TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.
TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
https://youtu.be/80VmuYpsSWg
| Model | TNF8/27A | TNF6/42A | TNF6/42B | TNF4/66A |
| Number of hooks | 192/240 | 192/240/320/384 | 384/448/480/512 | 192/240/320/384 |
| Number of tapes | 8 | 6 | 6 | 4 |
| Width of reed | 27 | 42 | 42 | 66 |
| Maximum of tapes | 25 | 40 | 40 | 62 |
| Number of frame | 12 | 12 | 12 | 12 |
| Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Model | TNF4/66B | TNF6/55A | ||
| Number of hooks | 384/448/320/512/640/720 | 192 | ||
| Number of tapes | 4 | 6 | ||
| Width of reed | 66 | 27 | ||
| Maximum of tapes | 64 | 25 | ||
| Number of frame | 12 | 12 | ||
| Circulation | 1:8/16-32 | 1:8/16-32 | ||
| Speed | 500-1200rpm | 500-1200rpm | ||
| Main Features |
|
1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine. |
|
2.The integration solenoid valve setting is small in size and sensitive while working. |
|
3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain. |
|
4.The tension of warp is controlled automatically with the help of advanced technology |
|
5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity. |
|
6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking. |
|
7.The woven flower shape is showed on windows directly and clearly. |
|
8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens. |
