Yongjin - automatic octopus heddle textile machine price of modern weaving machine YJ-NF 4/66
Applied in our manufacturing process, the technologies have speeded up the whole process and guaranteed the automatic octopus heddle textile machine price of modern weaving machine quality.In the application range(s) of Weaving Machines, the product is of great use.
5.0
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Guangzhou Yongjin Machinery Co., Ltd. has been strengthening the development of new products and has gained promising results. We pride ourselves on our personalized and efficient service. Therefore, for those buyers looking to buy automatic octopus heddle textile machine price of modern weaving machine in bulk quantity for their business, buying them from a reputable manufacturer would be a wise choice.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile Industry | Showroom Location: | Turkey, Thailand, Bangladesh |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | Motor | Condition: | New, New |
| Type: | Shuttle Loom | Application: | Produce Jacquard Elastic, To produce narrow fabrics straps/belt/webbing/tape and so on |
| Production Capacity: | 300sets / Month, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | YongJin | Dimension(L*W*H): | 1.5m*0.98m*2.1m, 1.5*0.98*2.1m |
| Weight: | 500 KG | Power: | 1.5kw |
| Warranty: | 2 Years, 2 Years | Key Selling Points: | High Productivity |
| Model Number: | YJ-NF 4/66 | color: | Green |
| Export Markets: | Southeast Asia, the Middle East, Europe and America | Voltage: | 380V |
| After Warranty Service: | Video technical support, Online support | Local Service Location: | Turkey, Thailand |
| Certification: | ISO9001 CE |
Product Description
We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )

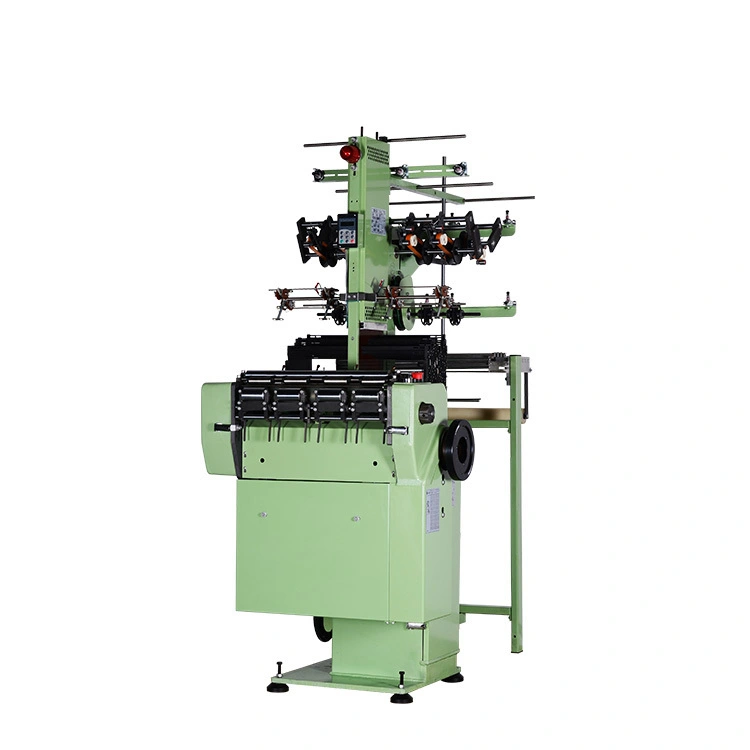

This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
https://youtu.be/80VmuYpsSWg
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
https://youtu.be/80VmuYpsSWg
Main Features |
1. The machine is suitable for making elastic or non elastic narrow fabrics, like underwear ribbon, shoose lace, shoulder strap, gifts lace. |
2. The width of machine body is 780mm, and the capacity is 1.5 times that of the conventional model. |
3. High speed, can be up to 1100-1300rpm. |
4. Independent R & D and production of the machine, effectively control the quality of parts, so that the machine life is long, stable and reliable. |
5 Stepless frequency conversion motor, easy to operation, saving labor, protecting the yarns. |
6. The main brake system (patent no. ZL201320454993.0) is stable and reliable, can protect yarns. |
Product Paramenters
Model | NF2/130 | NF2/175 | NF2/210 | NF4/66 | NF4/84 | NF4/110 |
Number of tapes | 2 | 2 | 2 | 4 | 4 | 4 |
Width of reed | 130 | 175 | 210 | 66 | 84 | 110 |
Maximum of tapes | 128 | 170 | 200 | 65 | 80 | 100 |
Number of frames | 20 | 20 | 20 | 20 | 20 | 20 |
Speed | 300-1200 rpm | 200-800 rpm | 200-500 rpm | 600-1500 rpm | 500-1200 rpm | 500-1000 rpm |
Model | NF6/42 | NF6/66 | NF6/80 | NF8/27 | NF8/42 | NF8/55 |
Number of tapes | 6 | 6 | 6 | 8 | 8 | 8 |
Width of reed | 42 | 66 | 80 | 27 | 42 | 55 |
Maximum of tapes | 40 | 65 | 78 | 25 | 40 | 53 |
Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
Speed | 800-1700 rpm | 500-1200 rpm | 500-1000 rpm | 800-1700 rpm | 500-1200 rpm | 500-1000 rpm |
Model | NF10/27 | NF12/27 | NF14/25 | NF6/42-2 | NF8/27-2 | NF16/15 |
Number of tapes | 10 | 12 | 14 | 12 | 16 | 16 |
Width of reed | 27 | 27 | 25 | 42 | 27 | 15 |
Maximum of tapes | 25 | 25 | 23 | 40 | 25 | 13 |
Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
Speed | 500-1200 rpm | 500-1000 rpm | 500-1000 rpm | 500-1200 rpm | 500-1200 rpm | 500-1200 rpm |
Recommend Products
Company Profile
Product packaging
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory with our own trading department.
Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.
Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.
Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.
Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.
Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
A1: We are a factory with our own trading department.
Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.
Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.
Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.
Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.
Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
