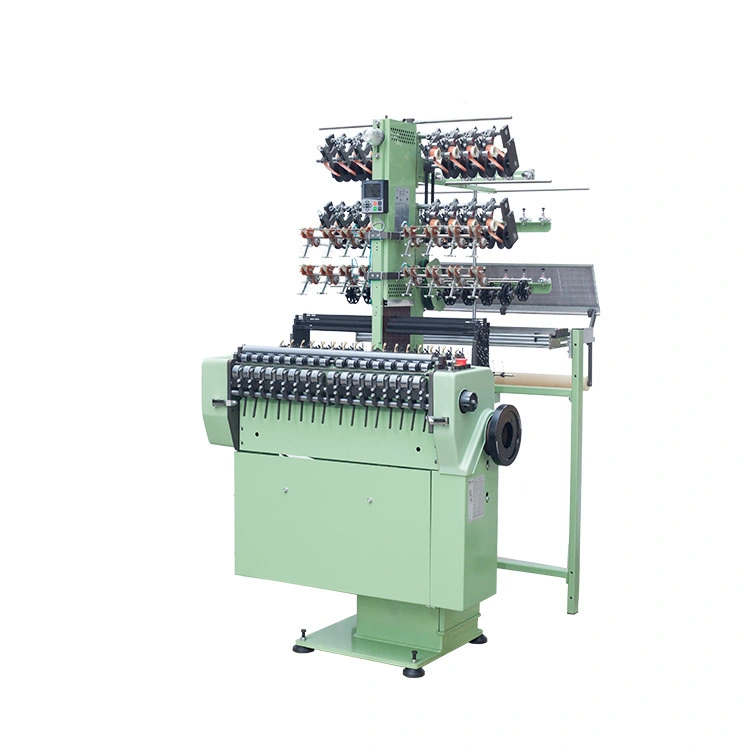

Yongjin - Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine YJ-NF 16/15 1

Yongjin - Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine YJ-NF 16/15 2

Yongjin - Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine YJ-NF 16/15 3

Yongjin - Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine YJ-NF 16/15 4

Yongjin - Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine YJ-NF 16/15 5

Yongjin - Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine YJ-NF 16/15 6

Yongjin - Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine YJ-NF 16/15

Buy the best quality of Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine from some of the best sellers and manufacturers from Yongjin.We can offer you the best quality of Weaving Machines at prices that will meet your budget.We make sure that everything that is being done by Yongjin does the work in a professional way.

Customization:

Back creel (Min. Order: 1 sets),Take off device (Min. Order: 1 sets),Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Guangzhou Yongjin Machinery Co., Ltd. has been one of the market leaders due to providing high-quality products to clients and it is very possible for the company to achieve a greater advancement in the future. It is delicately designed to comply with the industry standard. Guangzhou Yongjin Machinery Co., Ltd. will continue to gather more industry elites and improve our technology to upgrade ourselves. We hope to achieve the goal of realizing independent production without relying on others' technologies.

Applicable Industries:	Garment Shops, Manufacturing Plant, Textile Industry	Showroom Location:	Turkey, Viet Nam, Indonesia, Thailand, Bangladesh
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty of core components:	1 Year
Core Components:	Engine, Bearing, Gearbox, Motor, Gear, Pump	Condition:	New
Type:	Shuttle Less Loom	Application:	elastic non-elastic webbing
Production Capacity:	The maximum machine speed:1200	Place of Origin:	Guangdong, China
Brand Name:	YongJin	Dimension(LWH):	150012002100mm
Weight:	500 KG	Power:	1.5kw
Warranty:	1 Year	Key Selling Points:	Automatic
Model:	NF16/15	Length of frame:	780mm
Number of tapes:	16	Width of reed:	15
Maximum of tapes:	13	Number of frame:	20
Circulation:	1:8/16-48	Speed:	800-1200rpm
Power/Voltage:	1.5kw/380v	Weight of machine:	500kg

Product Description

We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )

Main Features

1. The machine is suitable for making elastic or non elastic narrow fabrics, like underwear ribbon, shoose lace, shoulder strap, gifts lace.

2. The width of machine body is 780mm, and the capacity is 1.5 times that of the conventional model.

3. High speed, can be up to 1100-1300rpm.

4. Independent R & D and production of the machine, effectively control the quality of parts, so that the machine life is long, stable and reliable.

5 Stepless frequency conversion motor, easy to operation, saving labor, protecting the yarns.

6. The main brake system (patent no. ZL201320454993.0) is stable and reliable, can protect yarns.

Yongjin - Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine YJ-NF 16/15 7

Yongjin - Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine YJ-NF 16/15 8

Yongjin - Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine YJ-NF 16/15 9

Yongjin - Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine YJ-NF 16/15 10

This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.

Video link
https://youtu.be/80VmuYpsSWg

Yongjin - Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine YJ-NF 16/15 11

Product Paramenters

Model	NF2/130	NF2/175	NF2/210	NF4/66	NF4/84	NF4/110
Number of tapes	2	2	2	4	4	4
Width of reed	130	175	210	66	84	110
Maximum of tapes	128	170	200	65	80	100
Number of frames	20	20	20	20	20	20
Speed	300-1200 rpm	200-800 rpm	200-500 rpm	600-1500 rpm	500-1200 rpm	500-1000 rpm

Model	NF6/42	NF6/66	NF6/80	NF8/27	NF8/42	NF8/55
Number of tapes	6	6	6	8	8	8
Width of reed	42	66	80	27	42	55
Maximum of tapes	40	65	78	25	40	53
Number of frame	20	20	20	20	20	20
Speed	800-1700 rpm	500-1200 rpm	500-1000 rpm	800-1700 rpm	500-1200 rpm	500-1000 rpm

Model	NF10/27	NF12/27	NF14/25	NF6/42-2	NF8/27-2	NF16/15
Number of tapes	10	12	14	12	16	16
Width of reed	27	27	25	42	27	15
Maximum of tapes	25	25	23	40	25	13
Number of frame	20	20	20	20	20	20
Speed	500-1200 rpm	500-1000 rpm	500-1000 rpm	500-1200 rpm	500-1200 rpm	500-1200 rpm

Yongjin - Yongjin manufacturer direct sale high speed industrial narrow fabric shuttleless needle loom weaving machine YJ-NF 16/15 12
