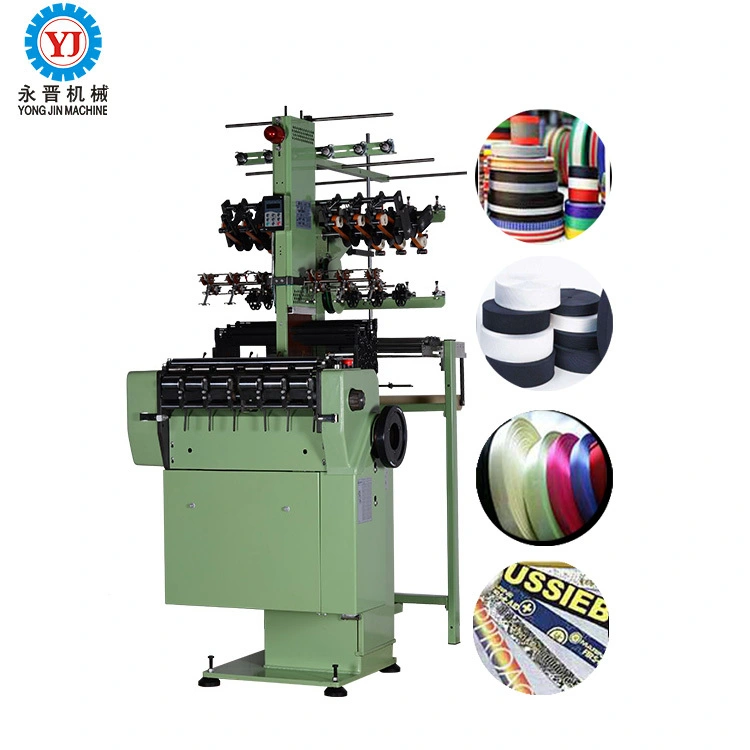

Yongjin - High speed satin ribbon tape weaving machine, high quality satin tape needle loom,satin elastic machine making YJ-NF 6/42 1

Yongjin - High speed satin ribbon tape weaving machine, high quality satin tape needle loom,satin elastic machine making YJ-NF 6/42 2

Yongjin - High speed satin ribbon tape weaving machine, high quality satin tape needle loom,satin elastic machine making YJ-NF 6/42 3

Yongjin - High speed satin ribbon tape weaving machine, high quality satin tape needle loom,satin elastic machine making YJ-NF 6/42 4

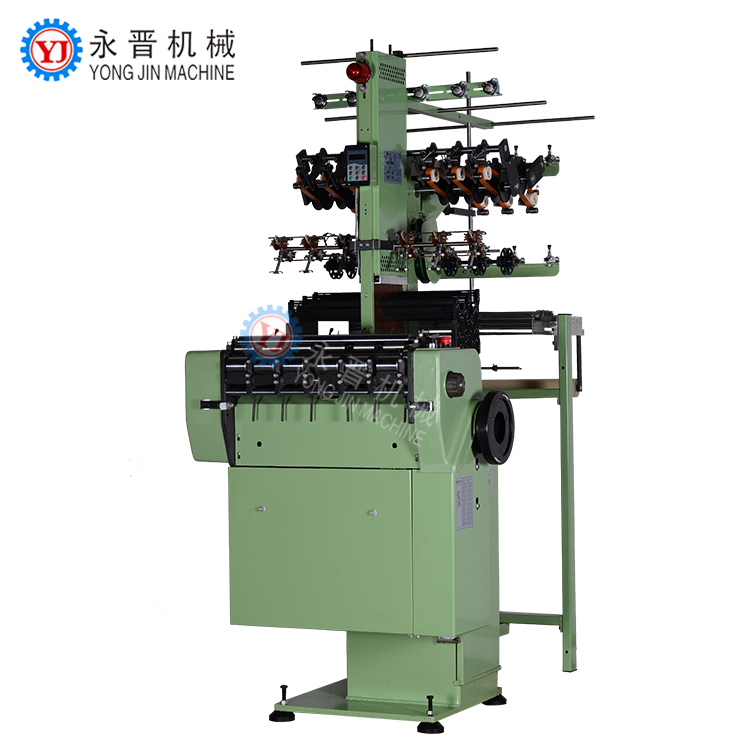

Yongjin - High speed satin ribbon tape weaving machine, high quality satin tape needle loom,satin elastic machine making YJ-NF 6/42

Our employees are well trained to be skilled at applying technology to the High speed satin ribbon tape weaving machine, high quality satin tape needle loom,satin elastic machine making manufacturing process. It has been continually proved that it can be widely used in the application field(s) of Weaving Machines.

Customization:

Customized logo (Min. Order: 1 sets),Back creel (Min. Order: 1 sets),Take off device (Min. Order: 1 sets)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Guangzhou Yongjin Machinery Co., Ltd. comes here today with the great news that we have successfully developed weaving machine, jacquard loom, needle loom.It is a kind of new product made by state-of-the-art technologies. The product is endowed with stable and multi-functional performance. It is mainly used in the application field(s) of Weaving Machines. We offer a range of design services to help you get exactly what you want.

Applicable Industries:	Manufacturing Plant	Showroom Location:	Turkey, Viet Nam, Thailand
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty of core components:	1 Year
Core Components:	Motor	Condition:	New, New
Type:	Shuttle Less Loom	Application:	Produce narrow fabrics, To produce narrow fabrics straps/belt/webbing/tape and so on
Production Capacity:	Maximum machine speed:1700, 300sets / month	Place of Origin:	Guangdong, China
Brand Name:	YongJin, YongJin	Dimension(LWH):	1.411.8, 1.411.8
Weight:	450kg	Power:	2.2KW
Warranty:	1 Year	Key Selling Points:	Automatic
After-sales Service Provided:	Engineers available to service machinery overseas, Video technical support, Online support	Commodity name:	GuangZhou manufacturer supply underwear elastic tape weaving machine
Model Number:	YJ-NF 6/42	Place of origin:	GuangZhou, China
Export Markets:	Southeast Asia, the Middle East, Europe and America	After Warranty Service:	Video technical support, Online support
Local Service Location:	Turkey, Thailand	Certification:	ISO,3C

High speed satin ribbon tape weaving machine, high quality satin tape needle loom,satin elastic machine making

We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

Product Overviews

Yongjin - High speed satin ribbon tape weaving machine, high quality satin tape needle loom,satin elastic machine making YJ-NF 6/42 5

Parameters

Model	NF2/130	NF2/175	NF2/210	NF4/66	NF4/84	NF4/110
Number of tapes	2	2	2	4	4	4
Width of reed	130	175	210	66	84	110
Maximum of tapes	128	170	200	65	80	100
Number of frame	20	20	20	20	20	20
Speed	300-1200 rpm	200-800 rpm	200-500 rpm	600-1500 rpm	500-1200 rpm	500-1000 rpm
Model	NF6/42	NF6/66	NF6/80	NF8/27	NF8/42	NF8/55
Number of tapes	6	6	6	8	8	8
Width of reed	42	66	80	27	42	55
Maximum of tapes	40	65	78	25	40	53
Number of frame	20	20	20	20	20	20
Speed	800-1700 rpm	500-1200 rpm	500-1000 rpm	800-1700 rpm	500-1200 rpm	500-1000 rpm
Model	NF10/27	NF12/27	NF14/25	NF6/42-2	NF8/27-2	NF16/15
Number of tapes	10	12	14	12	16	16
Width of reed	27	27	25	42	27	15
Maximum of tapes	25	25	23	40	25	13
Number of frame	20	20	20	20	20	20
Speed	500-1200 rpm	500-1000 rpm	500-1000 rpm	500-1200 rpm	500-1200 rpm	500-1200 rpm

YJ-NF series are looms for narrow-width ribbons, which are featured by their high quality, high difficulty and changeability.They can be used to produce various kinds of elastic and non-elastic ribbons, such as chest ribbons, elastic braids for clothes, satin ribbons, zipper ribbons, shoelaces, etc., and can be applied to ready-made clothes, hats, hair accessories, gifts, medical products, leather belts, gloves, raincoats, footwear,cameras, watches and leather bags. With the advanced technology introduced from abroad, this machine is the one for special use to manufacture ribbons of compact design. It is featured by such superior advantages as double-layer weave, double hook, and double weft, and characterized by high efficiency, high economic benefit, convenient operation,good-looking appearance, and smooth movement of comprehensive frames.It is equipped with advanced automatic weft feeding device and double variation speed braking motor which ensures fine tuning of weft feeding when non-stop of machines.When the fabric is adjusted, you can opera at lower speed by fine motion.It is especially applicable for bra ribbons, chest ribbons and common zipper ribbons.It is honored by its wide applicability and wide range of use.

Main Features

Main Features
1.The latch-type pattern block is characterized by its precision, firmness, durability, ease of dismounting, no noise in running, and assurance of running at a high speed.
2.The open iron frame construction is a special design whose elastic gel is driven by the upper elasticity. It can run without any noise and progress at high speed.And it can reduce the gravity center , featuring increase of force, reduction of the force on and between the iron frame and the cutters which can assure that the machine runs at a high speed and keep a long service of life.
3.The machine is precisely made, featuring compatibility, durability, ease of operation, free adjustment, fast supply of spare parts, and easse of dismounting and maintenance.
4.The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester, enhancing the lubrication between the cutters and the chained pattern blocks.
5.The variation speed braking motor can make stepless speed regulating and be operated at low soeed, which help lessen labor intensity.
6.With “double crocket hook single needle” and “double crocket hook double needle” devices, it can be applied to producing the fabric products like chest ribbons, shoulder ribbons, curtain ribbons, etc.

Main Features

1.The latch-type pattern block is characterized by its precision, firmness, durability, ease of dismounting, no noise in running, and assurance of running at a high speed.

2.The open iron frame construction is a special design whose elastic gel is driven by the upper elasticity. It can run without any noise and progress at high speed.And it can reduce the gravity center , featuring increase of force, reduction of the force on and between the iron frame and the cutters which can assure that the machine runs at a high speed and keep a long service of life.

3.The machine is precisely made, featuring compatibility, durability, ease of operation, free adjustment, fast supply of spare parts, and easse of dismounting and maintenance.

4.The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester, enhancing the lubrication between the cutters and the chained pattern blocks.

5.The variation speed braking motor can make stepless speed regulating and be operated at low soeed, which help lessen labor intensity.

6.With “double crocket hook single needle” and “double crocket hook double needle” devices, it can be applied to producing the fabric products like chest ribbons, shoulder ribbons, curtain ribbons, etc.
