Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 1

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 2

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66

The technologies are applied to the manufacturing process, some of which contribute to the high efficiency of Yongjin maquinas para fabricar cintas de bolso de naylom manufacturing and others ensure the stable and durable performance of the product.At present, the product is widely used in the field(s) of Weaving Machines with its multi-functional characteristics.

Customization:

Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

As Guangzhou Yongjin Machinery Co., Ltd. continues to develop, we invest heavily in product development every year in order to keep us competitive in the industry. This year, we have successfully worked out the Yongjin maquinas para fabricar cintas de bolso de naylom. YJ-NF 4/66 For the growth and development of our company, Guangzhou Yongjin Machinery Co., Ltd. will never stop upgrading and developing technologies to enhance our core competitiveness. Our vision is to become a famous enterprise in the global market.

Applicable Industries:	Garment Shops, Manufacturing Plant, Textile Industry	Showroom Location:	Turkey, Thailand, Bangladesh
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty of core components:	1 Year
Core Components:	Motor	Condition:	New, New
Type:	Shuttleless Loom	Application:	elastic non-elastic webbing, To produce narrow fabrics straps/belt/webbing/tape and so on
Production Capacity:	Maximum machine speed:1200, 300sets / month	Place of Origin:	Guangdong, China
Brand Name:	YongJin, YongJin	Dimension(LWH):	1.5m0.98m2.1m, 1.5m0.98m2.1m
Weight:	500kg	Power:	1.5KW
Warranty:	2 years	Key Selling Points:	High Productivity
After-sales Service Provided:	Engineers available to service machinery overseas	Commodity name:	Fast delivery ribbon bow making machine,satin ribbon making machine
Model Number:	YJ-NF 4/66	Place of origin:	GuangZhou, China
Export Markets:	Southeast Asia, the Middle East, Europe and America	After Warranty Service:	Video technical support, Online support
Local Service Location:	Turkey, Thailand	Certification:	ISO,3C

Product Description

We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 3

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 4

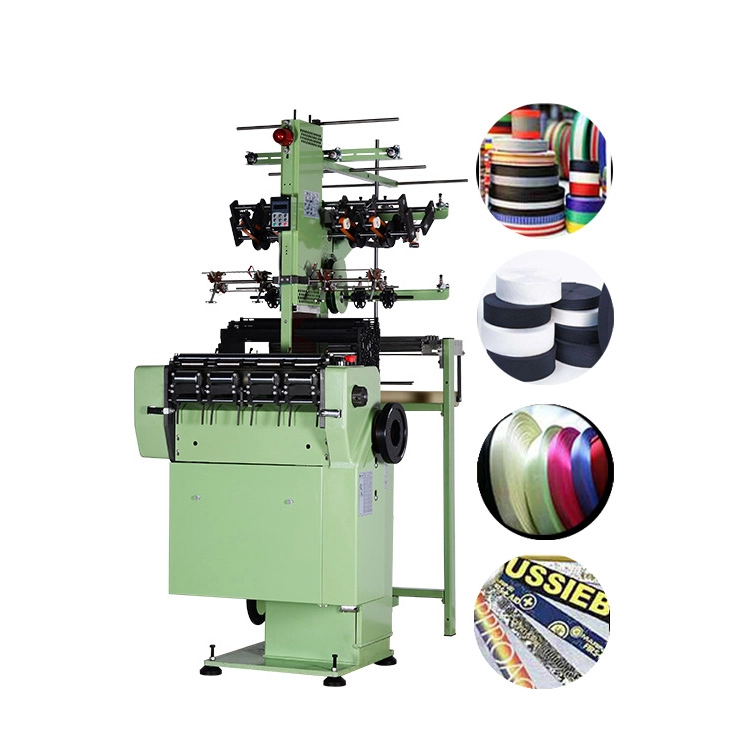

This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.

Video link
https://youtu.be/80VmuYpsSWg

Main Features

1. The machine is suitable for making elastic or non elastic narrow fabrics, like underwear ribbon, shoose lace, shoulder strap, gifts lace.

2. The width of machine body is 780mm, and the capacity is 1.5 times that of the conventional model.

3. High speed, can be up to 1100-1300rpm.

4. Independent R & D and production of the machine, effectively control the quality of parts, so that the machine life is long, stable and reliable.

5 Stepless frequency conversion motor, easy to operation, saving labor, protecting the yarns.

6. The main brake system (patent no. ZL201320454993.0) is stable and reliable, can protect yarns.

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 5

Product Paramenters

Model	NF2/130	NF2/175	NF2/210	NF4/66	NF4/84	NF4/110
Number of tapes	2	2	2	4	4	4
Width of reed	130	175	210	66	84	110
Maximum of tapes	128	170	200	65	80	100
Number of frames	20	20	20	20	20	20
Speed	300-1200 rpm	200-800 rpm	200-500 rpm	600-1500 rpm	500-1200 rpm	500-1000 rpm

Model	NF6/42	NF6/66	NF6/80	NF8/27	NF8/42	NF8/55
Number of tapes	6	6	6	8	8	8
Width of reed	42	66	80	27	42	55
Maximum of tapes	40	65	78	25	40	53
Number of frame	20	20	20	20	20	20
Speed	800-1700 rpm	500-1200 rpm	500-1000 rpm	800-1700 rpm	500-1200 rpm	500-1000 rpm

Model	NF10/27	NF12/27	NF14/25	NF6/42-2	NF8/27-2	NF16/15
Number of tapes	10	12	14	12	16	16
Width of reed	27	27	25	42	27	15
Maximum of tapes	25	25	23	40	25	13
Number of frame	20	20	20	20	20	20
Speed	500-1200 rpm	500-1000 rpm	500-1000 rpm	500-1200 rpm	500-1200 rpm	500-1200 rpm

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 6

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 7

Recommend Products

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 8

Company Profile

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 9

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 10

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 11

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 12

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 13

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 14

Product packaging

Yongjin - Yongjin maquinas para fabricar cintas de bolso de naylom YJ-NF 4/66 15

FAQ

Q1: Are you a factory or trading company?
A1: We are a factory with our own trading department.

Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.

Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.

Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.

Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.

If you have more questions, write to us. We sincerely hope to cooperate with friends from all walks of life, work together to create a better future!
