Yongjin - High speed automatic medical bandage textile loom,automatic gauze surgincal bandage weaving machine YJ-NF 4/66
Guangzhou Yongjin Machinery Co., Ltd. after long-term market research, we have created a brand-new product that is different from its peers. It's designed out of the needs of our customers. Guangzhou Yongjin Machinery Co., Ltd. always stick to the market-oriented business philosophy and regard 'honesty & sincerity' as the enterprise tenet. We are trying to establish a sound distribution network and aim to provide customers all over the world with the best services.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Condition: | New, New | Type: | Shuttleless Loom |
| Application: | elastic non-elastic webbing, To produce narrow fabrics straps/belt/webbing/tape and so on | Production Capacity: | The maximum machine speed:1200, 300sets / month |
| Place of Origin: | Guangdong, China | Brand Name: | YongJin, YongJin |
| Dimension(L*W*H): | 1.5m*0.98m*2.1m, 1.5m*0.98m*2.1m | Weight: | 500kg |
| Power: | 1.5KW | Warranty: | 1 Year, 2 years |
| Key Selling Points: | Automatic | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | After-sales Service Provided: | Video technical support, Online support, Engineers available to service machinery overseas |
| Certification: | ISO,3C | Commodity name: | Fast delivery ribbon bow making machine,satin ribbon making machine |
| Model Number: | YJ-NF 4/66 | Place of origin: | GuangZhou, China |

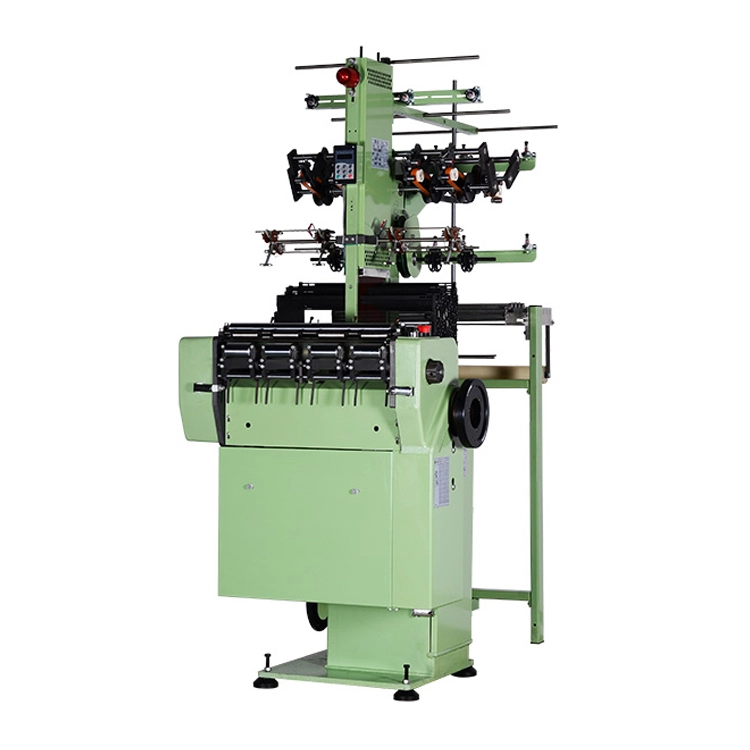

High speed automatic medical bandage textile loom,automatic gauze surgincal bandage weaving machine
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
| Model | NF2/130 | NF2/175 | NF2/210 | NF4/66 | NF4/84 | NF4/110 |
Number of tapes | 2 | 2 | 2 | 4 | 4 | 4 |
| Width of reed | 130 | 175 | 210 | 66 | 84 | 110 |
| Maximum of tapes | 128 | 170 | 200 | 65 | 80 | 100 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 300-1200 rpm | 200-800 rpm | 200-500 rpm | 600-1500 rpm | 500-1200 rpm | 500-1000 rpm |
| Model | NF6/42 | NF6/66 | NF6/80 | NF8/27 | NF8/42 | NF8/55 |
| Number of tapes | 6 | 6 | 6 | 8 | 8 | 8 |
| Width of reed | 42 | 66 | 80 | 27 | 42 | 55 |
| Maximum of tapes | 40 | 65 | 78 | 25 | 40 | 53 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 800-1700 rpm | 500-1200 rpm | 500-1000 rpm | 800-1700 rpm | 500-1200 rpm | 500-1000 rpm |
| Model | NF10/27 | NF12/27 | NF14/25 | NF6/42-2 | NF8/27-2 | NF16/15 |
| Number of tapes | 10 | 12 | 14 | 12 | 16 | 16 |
| Width of reed | 27 | 27 | 25 | 42 | 27 | 15 |
| Maximum of tapes | 25 | 25 | 23 | 40 | 25 | 13 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 500-1200 rpm | 500-1000 rpm | 500-1000 rpm | 500-1200 rpm | 500-1200 rpm | 500-1200 rpm |
YJ-NF series are looms for narrow-width ribbons, which are featured by their high quality, high difficulty and changeability.They can be used to produce various kinds of elastic and non-elastic ribbons, such as chest ribbons, elastic braids for clothes, satin ribbons, zipper ribbons, shoelaces, etc., and can be applied to ready-made clothes, hats, hair accessories, gifts, medical products, leather belts, gloves, raincoats, footwear,cameras, watches and leather bags. With the advanced technology introduced from abroad, this machine is the one for special use to manufacture ribbons of compact design. It is featured by such superior advantages as double-layer weave, double hook, and double weft, and characterized by high efficiency, high economic benefit, convenient operation,good-looking appearance, and smooth movement of comprehensive frames.It is equipped with advanced automatic weft feeding device and double variation speed braking motor which ensures fine tuning of weft feeding when non-stop of machines.When the fabric is adjusted, you can opera at lower speed by fine motion.It is especially applicable for bra ribbons, chest ribbons and common zipper ribbons.It is honored by its wide applicability and wide range of use.
This machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Advantage:
1) Yongjin needle loom is with stable quality, low noise, and durable working condition. It supplies customer high economic efficiency.
2) Automatic lubrication device and automatic tension feeding system provide effective control over high quality fabric while saving time and labor for the user.
3) Drive belt and change gear to perform stabilized transmission of bottom weft and provide wider range of fabrics which be more superior in quality.
4) Convertible machine parts supported with various devices to provide wider range of fabrics multi-purpose for single machine as well.
5) Heald frame in double-load, double shedding lever, twin pattern chain transmission configuration of shaft and gear has been reinforced.
