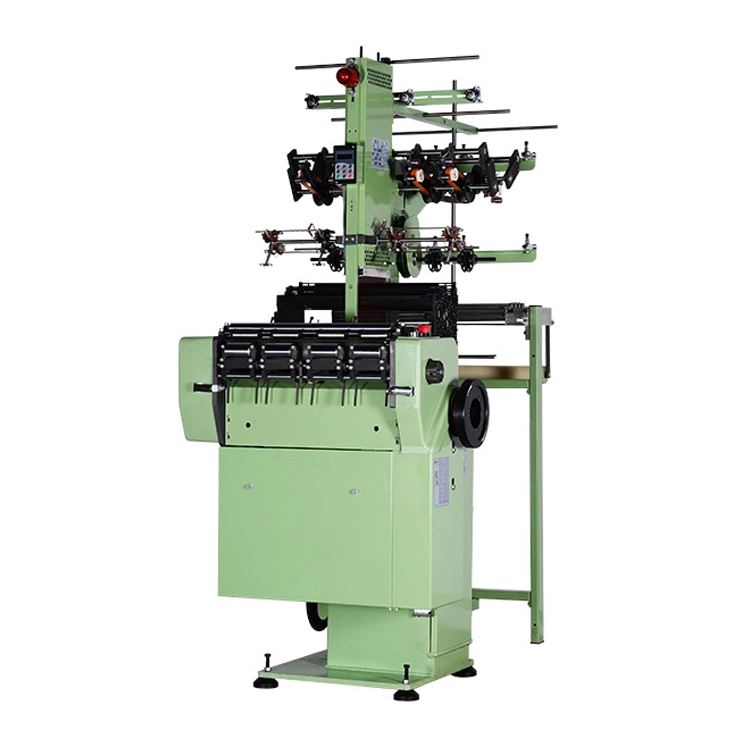

Yongjin - Narrow Fabric needle loom polyester weaving ribbons machine,woven bandage making machine YJ-NF 4/66
As the competition of the market becomes fiercer and fiercer, Guangzhou Yongjin Machinery Co., Ltd. has paid more attention to the importance of the R&D of new products. In the past few months, we have been devoted to new product development and have successfully developed Narrow Fabric needle loom polyester weaving ribbons machine,woven bandage making machine. YJ-NF 4/66 We strictly stick to the concept of scientific design, which contributes to the unique appearance and easy-to-use performance of our weaving machine, jacquard loom, needle loom. Also, we never use inferior raw materials and ensure they are all tested by our QC inspectors, thereby, guaranteeing Weaving Machines quality. We believe that our product with so many advantages can bring benefits to all customers.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Condition: | New, New | Type: | Shuttle Loom |
| Application: | elastic non-elastic webbing, To produce narrow fabrics straps/belt/webbing/tape and so on | Production Capacity: | Maximum machine speed:1200, 300sets / month |
| Place of Origin: | Guangdong, China | Brand Name: | YongJin, YongJin |
| Dimension(L*W*H): | 1.5m*0.98m*2.1m, 1.5m*0.98m*2.1m | Weight: | 500kg |
| Power: | 1.5KW | Warranty: | 1 Year, 2 years |
| Key Selling Points: | Automatic | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | After-sales Service Provided: | Video technical support, Online support, Engineers available to service machinery overseas |
| Certification: | ISO,3C | Commodity name: | Fast delivery ribbon bow making machine,satin ribbon making machine |
| Model Number: | YJ-NF 4/66 | Place of origin: | GuangZhou, China |
Narrow Fabric needle loom polyester weaving ribbons machine,woven bandage making machine
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
| Model | NF2/130 | NF2/175 | NF2/210 | NF4/66 | NF4/84 | NF4/110 |
Number of tapes | 2 | 2 | 2 | 4 | 4 | 4 |
| Width of reed | 130 | 175 | 210 | 66 | 84 | 110 |
| Maximum of tapes | 128 | 170 | 200 | 65 | 80 | 100 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 300-1200 rpm | 200-800 rpm | 200-500 rpm | 600-1500 rpm | 500-1200 rpm | 500-1000 rpm |
| Model | NF6/42 | NF6/66 | NF6/80 | NF8/27 | NF8/42 | NF8/55 |
| Number of tapes | 6 | 6 | 6 | 8 | 8 | 8 |
| Width of reed | 42 | 66 | 80 | 27 | 42 | 55 |
| Maximum of tapes | 40 | 65 | 78 | 25 | 40 | 53 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 800-1700 rpm | 500-1200 rpm | 500-1000 rpm | 800-1700 rpm | 500-1200 rpm | 500-1000 rpm |
| Model | NF10/27 | NF12/27 | NF14/25 | NF6/42-2 | NF8/27-2 | NF16/15 |
| Number of tapes | 10 | 12 | 14 | 12 | 16 | 16 |
| Width of reed | 27 | 27 | 25 | 42 | 27 | 15 |
| Maximum of tapes | 25 | 25 | 23 | 40 | 25 | 13 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 500-1200 rpm | 500-1000 rpm | 500-1000 rpm | 500-1200 rpm | 500-1200 rpm | 500-1200 rpm |
YJ-NF series are looms for narrow-width ribbons, which are featured by their high quality, high difficulty and changeability.They can be used to produce various kinds of elastic and non-elastic ribbons, such as chest ribbons, elastic braids for clothes, satin ribbons, zipper ribbons, shoelaces, etc., and can be applied to ready-made clothes, hats, hair accessories, gifts, medical products, leather belts, gloves, raincoats, footwear,cameras, watches and leather bags. With the advanced technology introduced from abroad, this machine is the one for special use to manufacture ribbons of compact design. It is featured by such superior advantages as double-layer weave, double hook, and double weft, and characterized by high efficiency, high economic benefit, convenient operation,good-looking appearance, and smooth movement of comprehensive frames.It is equipped with advanced automatic weft feeding device and double variation speed braking motor which ensures fine tuning of weft feeding when non-stop of machines.When the fabric is adjusted, you can opera at lower speed by fine motion.It is especially applicable for bra ribbons, chest ribbons and common zipper ribbons.It is honored by its wide applicability and wide range of use.
This machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
| Main Features |
1.The latch-type pattern block is characterized by its precision, firmness, durability, ease of dismounting, no noise in running, and assurance of running at a high speed. |
2.The open iron frame construction is a special design whose elastic gel is driven by the upper elasticity. It can run without any noise and progress at high speed.And it can reduce the gravity center , featuring increase of force, reduction of the force on and between the iron frame and the cutters which can assure that the machine runs at a high speed and keep a long service of life. |
3.The machine is precisely made, featuring compatibility, durability, ease of operation, free adjustment, fast supply of spare parts, and easse of dismounting and maintenance. |
4.The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester, enhancing the lubrication between the cutters and the chained pattern blocks. |
5.The variation speed braking motor can make stepless speed regulating and be operated at low soeed, which help lessen labor intensity. |
6.With “double crocket hook single needle” and “double crocket hook double needle” devices, it can be applied to producing the fabric products like chest ribbons, shoulder ribbons, curtain ribbons, etc. |
