Make high-quality Warping Machine. Devote to global weaving industry. - Yongjin Machinery

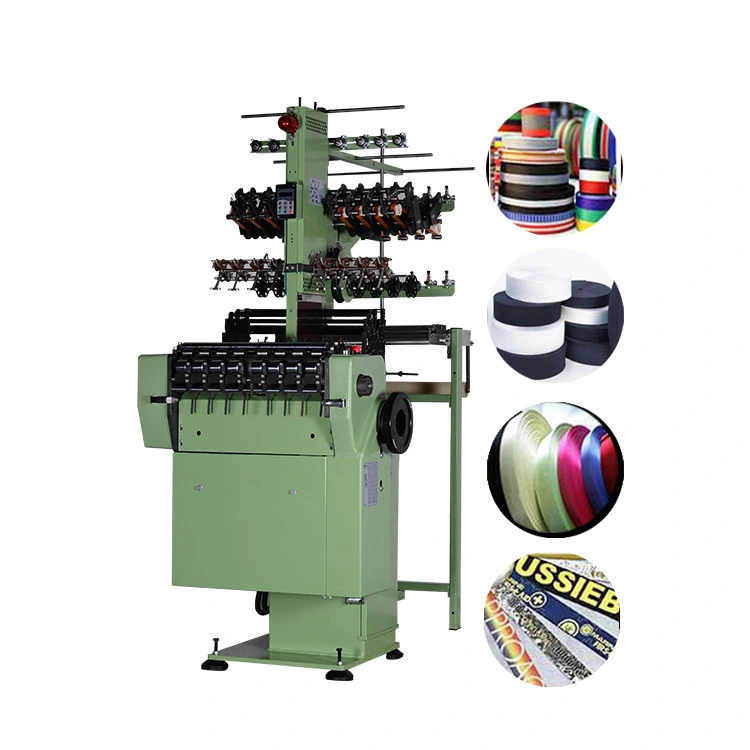

Yongjin - Heavy duty needle loom narrow flat webbing sling &belt,fabric elastic band production machine YJ-NF 8/27 1

Yongjin - Heavy duty needle loom narrow flat webbing sling &belt,fabric elastic band production machine YJ-NF 8/27 2

Yongjin - Heavy duty needle loom narrow flat webbing sling &belt,fabric elastic band production machine YJ-NF 8/27

Driven by business needs, we have been constantly optimizing and upgrading our technologies.These technologies contribute to our high-efficiency manufacturing process.In the application field(s) of Weaving Machines, the weaving machine, jacquard loom, needle loom proves to be very useful.

Customization:

Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Heavy duty needle loom narrow flat webbing sling &belt,fabric elastic band production machine companies spend so much time coming up with various products to reach diverse consumer needs. Heavy duty needle loom narrow flat webbing sling &belt,fabric elastic band production machine is the result of high-end technologies.With the continual of enlarging of its application range in Weaving Machines, its demands are increasing rapidly every year. In the future,Guangzhou Yongjin Machinery Co., Ltd. will continue to introduce outstanding talents and learn advanced technology, win the initiative in market competition, and clear road obstacles to achieve the goal of becoming a world-class enterprise.

Applicable Industries:	Garment Shops, Manufacturing Plant, Textile industry	Showroom Location:	Turkey, Viet Nam, Indonesia, Thailand, Bangladesh
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty of core components:	1 Year
Core Components:	Motor	Condition:	New, New
Type:	Shuttleless Loom	Application:	To produce narrow fabrics straps/belt and so on, To produce narrow fabrics straps/belt/webbing/tape and so on
Production Capacity:	The maximum machine speed:1500, 300sets / month	Place of Origin:	Guangdong, China
Brand Name:	YongJin, YongJin	Dimension(LWH):	1.5m0.98m2.1m, 1.5m0.98m2.1m
Weight:	500kg	Power:	1.5KW
Warranty:	1 Year	Key Selling Points:	Automatic
After-sales Service Provided:	Engineers available to service machinery overseas, Video technical support, Online support	Commodity name:	computerized flat knitting hydraulic loom / textile weaving machine
Model Number:	YJ-NF 8/27	Place of origin:	GuangZhou, China
Export Markets:	Southeast Asia, the Middle East, Europe and America	After Warranty Service:	Video technical support, Online support
Local Service Location:	Turkey, Pakistan	Certification:	ISO,3C

Heavy duty needle loom narrow flat webbing sling &belt,fabric elastic band production machine

We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

Product Overviews

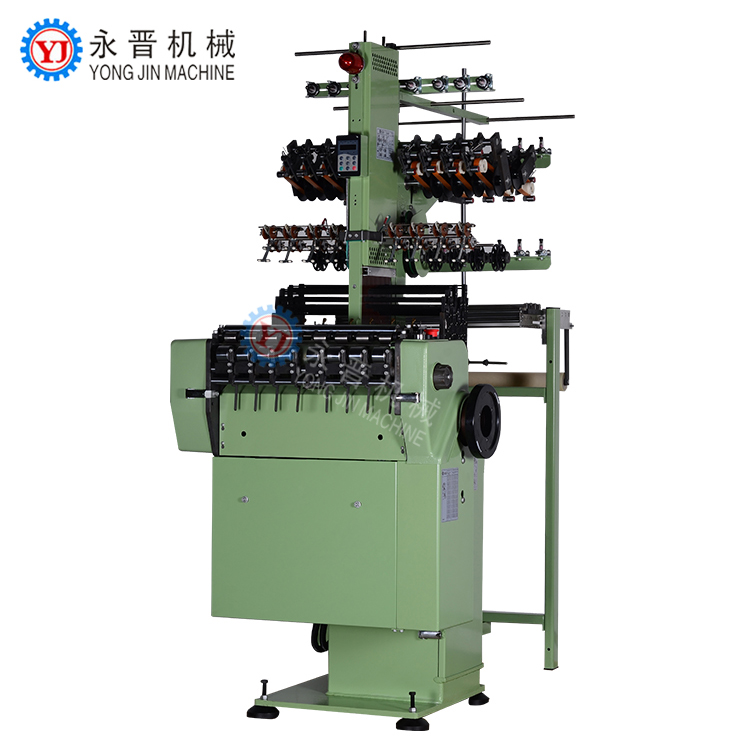

Yongjin - Heavy duty needle loom narrow flat webbing sling &belt,fabric elastic band production machine YJ-NF 8/27 3

Yongjin - Heavy duty needle loom narrow flat webbing sling &belt,fabric elastic band production machine YJ-NF 8/27 4

Yongjin - Heavy duty needle loom narrow flat webbing sling &belt,fabric elastic band production machine YJ-NF 8/27 5

Parameters

Model	NF2/130	NF2/175	NF2/210	NF4/66	NF4/84	NF4/110
Number of tapes	2	2	2	4	4	4
Width of reed	130	175	210	66	84	110
Maximum of tapes	128	170	200	65	80	100
Number of frame	20	20	20	20	20	20
Speed	300-1200 rpm	200-800 rpm	200-500 rpm	600-1500 rpm	500-1200 rpm	500-1000 rpm
Model	NF6/42	NF6/66	NF6/80	NF8/27	NF8/42	NF8/55
Number of tapes	6	6	6	8	8	8
Width of reed	42	66	80	27	42	55
Maximum of tapes	40	65	78	25	40	53
Number of frame	20	20	20	20	20	20
Speed	800-1700 rpm	500-1200 rpm	500-1000 rpm	800-1700 rpm	500-1200 rpm	500-1000 rpm
Model	NF10/27	NF12/27	NF14/25	NF6/42-2	NF8/27-2	NF16/15
Number of tapes	10	12	14	12	16	16
Width of reed	27	27	25	42	27	15
Maximum of tapes	25	25	23	40	25	13
Number of frame	20	20	20	20	20	20
Speed	500-1200 rpm	500-1000 rpm	500-1000 rpm	500-1200 rpm	500-1200 rpm	500-1200 rpm

Main Features

Main Features

1. The machine is suitable for making elastic or non elastic narrow fabrics, like underwear ribbon, shoose lace, shoulder strap, gifts lace.

2. The width of machine body is 780mm, and the capacity is 1.5 times that of the conventional model.

3. High speed, can be up to 1100-1300rpm.

4. Independent R & D and production of the machine, effectively control the quality of parts, so that the machine life is long, stable and reliable.

5 Stepless frequency conversion motor, easy to operation, saving labor, protecting the yarns.

6. The main brake system (patent no. ZL201320454993.0) is stable and reliable, can protect yarns.

Detailed Images

Yongjin - Heavy duty needle loom narrow flat webbing sling &belt,fabric elastic band production machine YJ-NF 8/27 6

Yongjin - Heavy duty needle loom narrow flat webbing sling &belt,fabric elastic band production machine YJ-NF 8/27 7

Yongjin - Heavy duty needle loom narrow flat webbing sling &belt,fabric elastic band production machine YJ-NF 8/27 8
