Thanks to the efforts of our staff,Guangzhou Yongjin Machinery Co., Ltd. can launch our polyester fabric weaving machine philippines+textile machines non woven release meeting as scheduled. Our Belt Making Machines is supplied with a competitive price . Now you can easily find the best suppliers to get the top of the line quality of polyester fabric weaving machine philippines+textile machines non woven and get lower prices. After years of growth and development,Guangzhou Yongjin Machinery Co., Ltd. have constructed characteristic corporate culture systems and confirmed our business principle of 'customer first'. We will always focus on customers' needs and promise that we will provide the most satisfying and valuable products.

Product Description

We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )

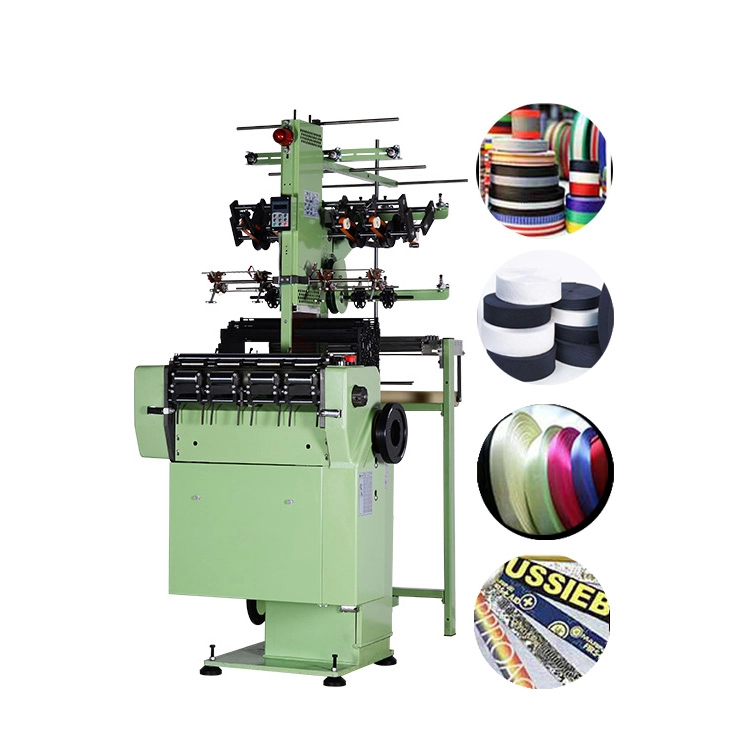

This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.

Video link
https://youtu.be/80VmuYpsSWg

Main Features

1. The machine is suitable for making elastic or non elastic narrow fabrics, like underwear ribbon, shoose lace, shoulder strap, gifts lace.

2. The width of machine body is 780mm, and the capacity is 1.5 times that of the conventional model.

3. High speed, can be up to 1100-1300rpm.

4. Independent R & D and production of the machine, effectively control the quality of parts, so that the machine life is long, stable and reliable.

5 Stepless frequency conversion motor, easy to operation, saving labor, protecting the yarns.

6. The main brake system (patent no. ZL201320454993.0) is stable and reliable, can protect yarns.

Product Paramenters

Model	NF2/130	NF2/175	NF2/210	NF4/66	NF4/84	NF4/110
Number of tapes	2	2	2	4	4	4
Width of reed	130	175	210	66	84	110
Maximum of tapes	128	170	200	65	80	100
Number of frames	20	20	20	20	20	20
Speed	300-1200 rpm	200-800 rpm	200-500 rpm	600-1500 rpm	500-1200 rpm	500-1000 rpm

Model	NF6/42	NF6/66	NF6/80	NF8/27	NF8/42	NF8/55
Number of tapes	6	6	6	8	8	8
Width of reed	42	66	80	27	42	55
Maximum of tapes	40	65	78	25	40	53
Number of frame	20	20	20	20	20	20
Speed	800-1700 rpm	500-1200 rpm	500-1000 rpm	800-1700 rpm	500-1200 rpm	500-1000 rpm

Model	NF10/27	NF12/27	NF14/25	NF6/42-2	NF8/27-2	NF16/15
Number of tapes	10	12	14	12	16	16
Width of reed	27	27	25	42	27	15
Maximum of tapes	25	25	23	40	25	13
Number of frame	20	20	20	20	20	20
Speed	500-1200 rpm	500-1000 rpm	500-1000 rpm	500-1200 rpm	500-1200 rpm	500-1200 rpm

Recommend Products

Company Profile

Product packaging

FAQ

Q1: Are you a factory or trading company?
A1: We are a factory with our own trading department.

Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.

Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.

Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.

Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
