Yongjin - Factory price weaving machine no 4 textile machine YJ-NF 4/66
Guangzhou Yongjin Machinery Co., Ltd. devotes many years to developing and producing superb Factory price weaving machine no 4 textile machine as well as offering professional customer service. Talents and technology are indispensable supporting factors for the Factory price weaving machine no 4 textile machine to be widely praised. So, shake hands with us, expand your business, and increase your clientele.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Condition: | New, New | Type: | Shuttle Loom |
| Application: | To produce jacquard elastic, To produce narrow fabrics straps/belt/webbing/tape and so on | Production Capacity: | The maximum machine speed:1700, 300sets / month |
| Place of Origin: | Guangdong, China | Brand Name: | YongJin, YongJin |
| Dimension(L*W*H): | 1.4*1*1.8, 1.4*1*1.8 | Weight: | 450kg |
| Power: | 2.2KW | Warranty: | 1 Year |
| Key Selling Points: | Automatic | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | After-sales Service Provided: | Video technical support, Online support, Engineers available to service machinery overseas |
| Certification: | ISO,3C | Commodity name: | High speed jet loom price,narrow circular home knitting machines sale |
| Model Number: | YJ-NF 4/66 | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America |

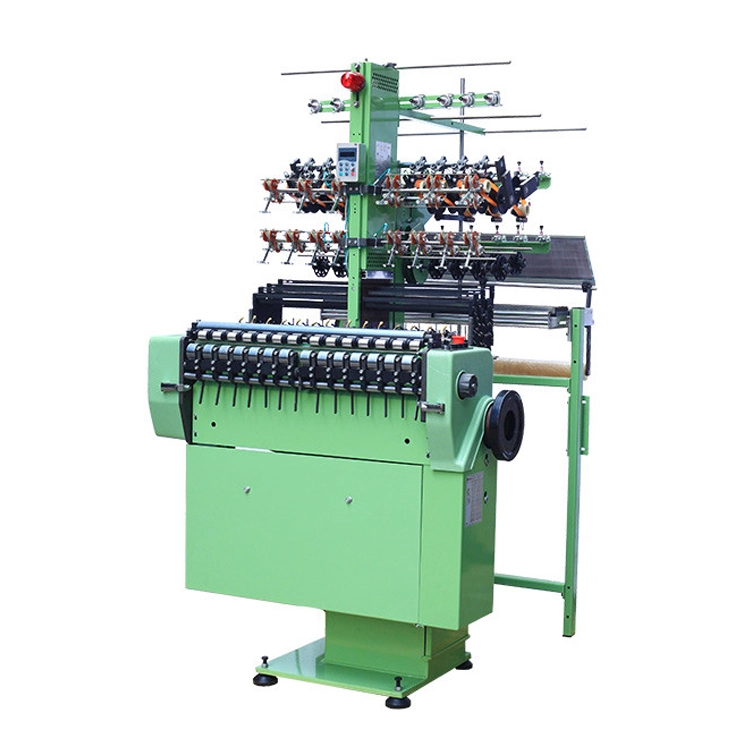

Factory price weaving machine no 4 textile machine
We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )
| Product show | jet loom price |
| Model | NF2/130 | NF2/175 | NF2/210 | NF4/66 | NF4/84 | NF4/110 |
Number of tapes | 2 | 2 | 2 | 4 | 4 | 4 |
| Width of reed | 130 | 175 | 210 | 66 | 84 | 110 |
| Maximum of tapes | 128 | 170 | 200 | 65 | 80 | 100 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 300-1200 rpm | 200-800 rpm | 200-500 rpm | 600-1500 rpm | 500-1200 rpm | 500-1000 rpm |
| Model | NF6/42 | NF6/66 | NF6/80 | NF8/27 | NF8/42 | NF8/55 |
| Number of tapes | 6 | 6 | 6 | 8 | 8 | 8 |
| Width of reed | 42 | 66 | 80 | 27 | 42 | 55 |
| Maximum of tapes | 40 | 65 | 78 | 25 | 40 | 53 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 800-1700 rpm | 500-1200 rpm | 500-1000 rpm | 800-1700 rpm | 500-1200 rpm | 500-1000 rpm |
| Model | NF10/27 | NF12/27 | NF14/25 | NF6/42-2 | NF8/27-2 | NF16/15 |
| Number of tapes | 10 | 12 | 14 | 12 | 16 | 16 |
| Width of reed | 27 | 27 | 25 | 42 | 27 | 15 |
| Maximum of tapes | 25 | 25 | 23 | 40 | 25 | 13 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 500-1200 rpm | 500-1000 rpm | 500-1000 rpm | 500-1200 rpm | 500-1200 rpm | 500-1200 rpm |
| Main Features |
1.The latch-type pattern block is characterized by its precision, firmness, durability, ease of dismounting, no noise in running, and assurance of running at a high speed. |
2.The open iron frame construction is a special design whose elastic gel is driven by the upper elasticity. It can run without any noise and progress at high speed.And it can reduce the gravity center , featuring increase of force, reduction of the force on and between the iron frame and the cutters which can assure that the machine runs at a high speed and keep a long service of life. |
3.The machine is precisely made, featuring compatibility, durability, ease of operation, free adjustment, fast supply of spare parts, and easse of dismounting and maintenance. |
4.The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester, enhancing the lubrication between the cutters and the chained pattern blocks. |
5.The variation speed braking motor can make stepless speed regulating and be operated at low soeed, which help lessen labor intensity. |
6.With “double crocket hook single needle” and “double crocket hook double needle” devices, it can be applied to producing the fabric products like chest ribbons, shoulder ribbons, curtain ribbons, etc. |
| Application | jet loom price |
Application:
It can be used to produce various of elastic and non-elastic ribbons, such as chest ribbons , elastic
braids for clothes ,satin ribbons, zipper ribbons, shoelaces that are widely used in ready garments, headwear, hair ornaments, gifts, medical products, belts, gloves and so on.
Advantage:
1,The latch-type pattern block is characterized by its precision ,firmness,durability, ease of
dismounting, no noise in running ,and assurance of running at a high speed.
2,The open iron frame construction is a special design whose elastic gel is driven by the upper elas- ticity .it can reduce the gravity center,featuring increase of force,reduction of the force on and
between the iron frame and the cutters which can assure that the machine runs at a high speed
and keep a long service of life.
3,The machine is precisely made, featuring compatibility, durability, ease of operation, free adjustm- ent, fast supply of spare parts, and ease of dismounting and maintenance.
4,The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester,
enhancing the lubrication between the cutters and the chained pattern blocks.
5,With “double crocket hook single needle”and “double crocket hook double needle” devices, it can be applied to producing the fabric products like chest ribbons, shoulder ribbons, curtain ribbons and so on.
| Products association | Click for more information |
Electronic jacquard loom machine |
Narrow fabric weaving loom |
| About us | Warmly welcome to visit our factory |
Strict and complete production process:
We have implemented a strict and complete production process, which strictly following
the ISO 9001 standards for the production. What’s more, all of our products have been
strictly inspected before shipment.
| Company Culture | Win-win cooperation |
| Shipping & Payment |
| Packing | 1 set of loom per standard wooden case |
| Payment terms | T/T, L/C.Western Union. |
Delivery of time | The delivery time is 20 days for one 20ft container.25 days for one 40ft container
|
Port | Guangzhou port.
|
