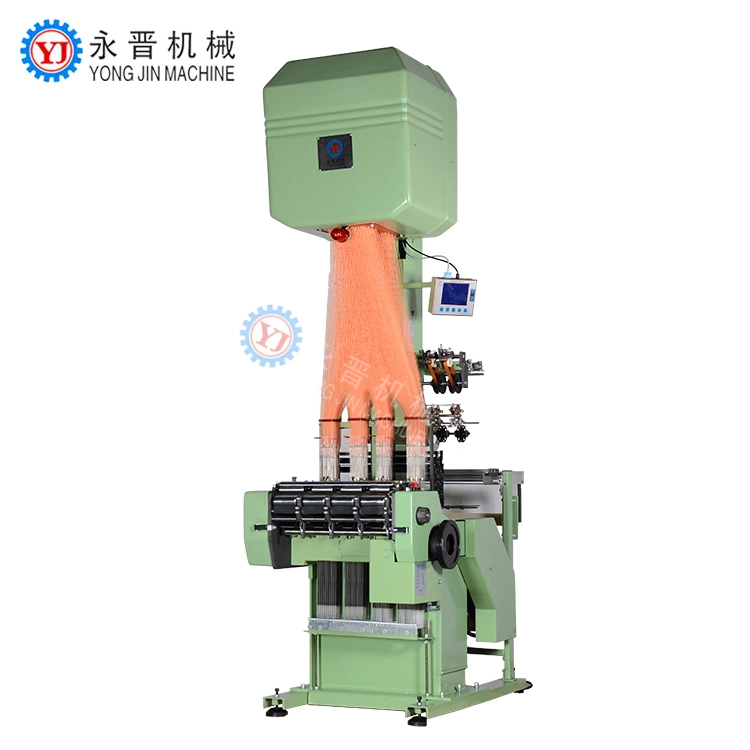

Yongjin - fabric webbing loom elastic band machines sell for under garments Flat Computerized Jacquard Loom
We feature a broad range of hi-quality fabric webbing loom elastic band machines sell for under garments for peolpe of all age group. fabric webbing loom elastic band machines sell for under garments performs powerful function and has strong advantages. With regard to its design, fabric webbing loom elastic band machines sell for under garments is designed by a team of our designers who are always close to the industry trend and keep alert to the changes.
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Turkey, Viet Nam, Thailand |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | Bearing, Gearbox, Motor, Gear | Condition: | New, New |
| Type: | Jacquard Loom | Application: | Used to product narrow fabric with jacquare, It can be used To produce jacquard elastic and non-elastic webbing |
| Production Capacity: | max speed :1200rpm, 300sets / month | Place of Origin: | China |
| Brand Name: | Yong jin, YongJin | Dimension(L*W*H): | 1500*1000*2600, 1.5*0.98*2.6m |
| Weight: | 950kg | Power: | 2.2kw |
| Warranty: | 1 Year | Key Selling Points: | Easy to Operate |
| After-sales Service Provided: | Engineers available to service machinery overseas, Free spare parts, Online support | Commodity name: | fabric webbing loom elastic band machines sell for under garments |
| Model Number: | YJ-TNF | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand |
fabric webbing loom elastic band machines sell for under garments
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
| Model | TNF8/27A | TNF6/42A | TNF6/42B | TNF4/66A |
| Number of hooks | 192/240 | 192/240/320/384 | 384/448/480/512 | 192/240/320/384 |
| Number of tapes | 8 | 6 | 6 | 4 |
| Width of reed | 27 | 42 | 42 | 66 |
| Maximum of tapes | 25 | 40 | 40 | 62 |
| Number of frame | 12 | 12 | 12 | 12 |
| Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Model | TNF4/66B | TNF6/55A | ||
| Number of hooks | 384/448/320/512/640/720 | 192 | ||
| Number of tapes | 4 | 6 | ||
| Width of reed | 66 | 27 | ||
| Maximum of tapes | 64 | 25 | ||
| Number of frame | 12 | 12 | ||
| Circulation | 1:8/16-32 | 1:8/16-32 | ||
| Speed | 500-1200rpm | 500-1200rpm | ||
| Main Features |
|
1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine. |
|
2.The integration solenoid valve setting is small in size and sensitive while working. |
|
3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain. |
|
4.The tension of warp is controlled automatically with the help of advanced technology |
|
5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity. |
|
6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking. |
|
7.The woven flower shape is showed on windows directly and clearly. |
|
8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens. |
