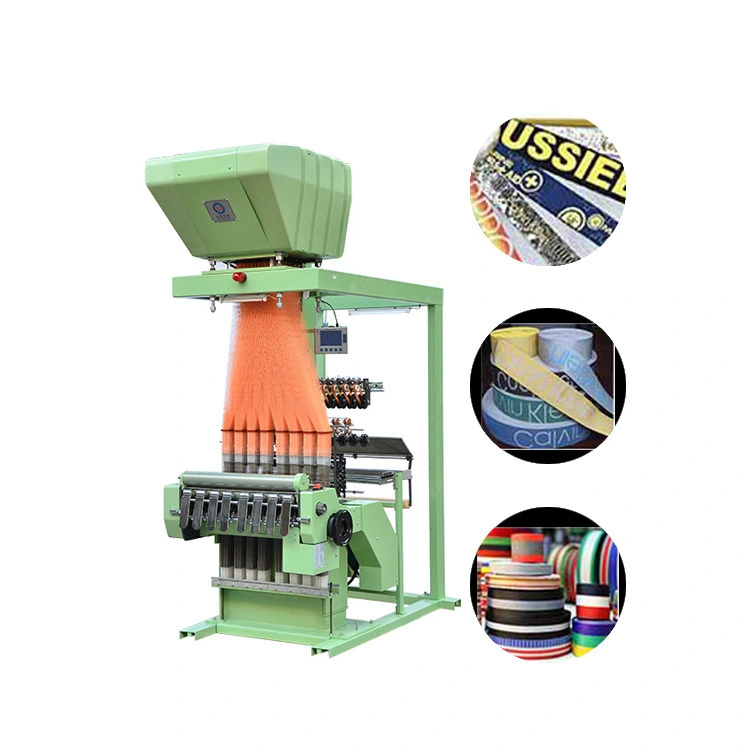

Yongjin - elastic band crochet knitting machine Flat Computerized Jacquard Loom
Guangzhou Yongjin Machinery Co., Ltd. has made immense progress in the development of roducts. elastic band crochet knitting machine is the product of our company made by the state-of-the-art technologies. elastic band crochet knitting machine can help companies stand out in a fiercely competitive environment and become the industry leader in one fell swoop. Contact us directly by email or phone call to get more information about our products or services.
| Applicable Industries: | Manufacturing Plant | Condition: | New, New |
| Product Type: | Belt, Elastic Band, jacquard band | Type: | jacquard |
| Production Capacity: | The maximum machine speed:1700, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | YongJin, YongJin | Power: | 2.2KW |
| Knitting Style: | Flat | Knitting Method: | Double&single |
| Computerized: | Yes | Weight: | 890 KG |
| Dimension(L*W*H): | 1.4*1.2*2, 3*0.98*2.6m | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Gauge: | 192-720 hooks |
| Knitting width: | 40mm | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
| Warranty of core components: | 1 Year | Core Components: | Motor |
| Commodity name: | Elastic band crochet knitting machine | Model Number: | YJ-TNF |
| Application: | It can be used To produce jacquard elastic and non-elastic webbing | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America | Showroom Location: | Turkey, Thailand |
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
| Model | TNF8/27A | TNF6/42A | TNF6/42B | TNF4/66A |
| Number of hooks | 192/240 | 192/240/320/384 | 384/448/480/512 | 192/240/320/384 |
| Number of tapes | 8 | 6 | 6 | 4 |
| Width of reed | 27 | 42 | 42 | 66 |
| Maximum of tapes | 25 | 40 | 40 | 62 |
| Number of frame | 12 | 12 | 12 | 12 |
| Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Model | TNF4/66B | TNF6/55A | ||
| Number of hooks | 384/448/320/512/640/720 | 192 | ||
| Number of tapes | 4 | 6 | ||
| Width of reed | 66 | 27 | ||
| Maximum of tapes | 64 | 25 | ||
| Number of frame | 12 | 12 | ||
| Circulation | 1:8/16-32 | 1:8/16-32 | ||
| Speed | 500-1200rpm | 500-1200rpm | ||

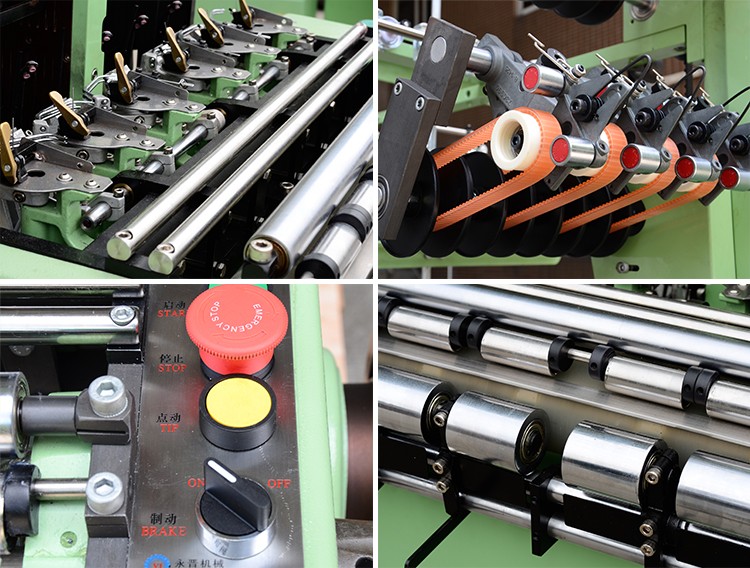

| Main Features |
|
1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine. |
|
2.The integration solenoid valve setting is small in size and sensitive while working. |
|
3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain. |
|
4.The tension of warp is controlled automatically with the help of advanced technology |
|
5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity. |
|
6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking. |
|
7.The woven flower shape is showed on windows directly and clearly. |
|
8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens. |
