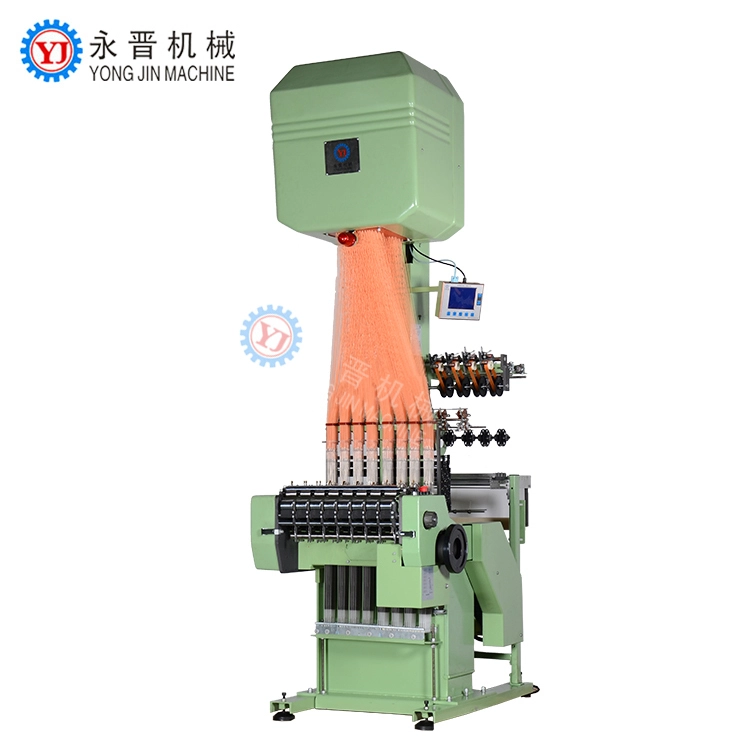

Yongjin - Computeriezd high speed narrow jacquard webbing tape weaving needle loom machine in china YJ-TNF 8/27
With immense market knowledge, we have been able to provide optimum quality Computeriezd high speed narrow jacquard webbing tape weaving needle loom machine in china. Computeriezd high speed narrow jacquard webbing tape weaving needle loom machine in china is a good example to showcase our research and development capability. In the future,Computeriezd high speed narrow jacquard webbing tape weaving needle loom machine in china will always adhere to the road of quality development, increase the investment in technology and talent introduction, always improve the core competitiveness of the enterprise, to achieve the goal of sustainable development.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | Engine, Bearing, Gearbox, Motor, Gear, Pump | Condition: | New, New |
| Type: | Jacquard Loom | Application: | Elastic and non-elastic belt, It can be used To produce jacquard elastic and non-elastic webbing |
| Production Capacity: | 500-1200rpm, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | Yongjin, YongJin | Dimension(L*W*H): | 1500*980*2600mm, 1.5*0.98*2.6m |
| Weight: | 850kg | Power: | 2.2kw |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| After-sales Service Provided: | Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service | Commodity name: | Long life elastic band & tape crochet knitting machine |
| Model Number: | YJ-TNF8/27 | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | Certification: | ISO,3C |
Computeriezd high speed narrow jacquard webbing tape weaving needle loom machine in china
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
It can be used to produce the patterns, characters and bytes for the jacquard elastic and non-elastic narrow-breadth knitting fabric and ornaments.The patterns scope cover from 192 ropes and 12 pieces in iron frame control. It can be applied to produce jacquard elastic and non-elastic narrow-breadth knitting fabric and ornaments such as chest ribbons, elastic braids for clothes, satin ribbons, zipper ribbons, shoelaces that are widely used in ready garments, headwear,hair ornaments, gifts, medical products, belts ,gloves, raincoats, footwear,cameras, watches and leather bags, and so on.
| Model | TNF8/27A | TNF6/42A | TNF6/42B | TNF4/66A |
| Number of hooks | 192/240 | 192/240/320/384 | 384/448/480/512 | 192/240/320/384 |
| Number of tapes | 8 | 6 | 6 | 4 |
| Width of reed | 27 | 42 | 42 | 66 |
| Maximum of tapes | 25 | 40 | 40 | 62 |
| Number of frame | 12 | 12 | 12 | 12 |
| Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Model | TNF4/66B | TNF6/55A | ||
| Number of hooks | 384/448/320/512/640/720 | 192 | ||
| Number of tapes | 4 | 6 | ||
| Width of reed | 66 | 27 | ||
| Maximum of tapes | 64 | 25 | ||
| Number of frame | 12 | 12 | ||
| Circulation | 1:8/16-32 | 1:8/16-32 | ||
| Speed | 500-1200rpm | 500-1200rpm | ||
| Main Features |
|
1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine. |
|
2.The integration solenoid valve setting is small in size and sensitive while working. |
|
3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain. |
|
4.The tension of warp is controlled automatically with the help of advanced technology |
|
5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity. |
|
6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking. |
|
7.The woven flower shape is showed on windows directly and clearly. |
|
8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens. |
