Make high-quality Warping Machine. Devote to global weaving industry. - Yongjin Machinery

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 1

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 2

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 3

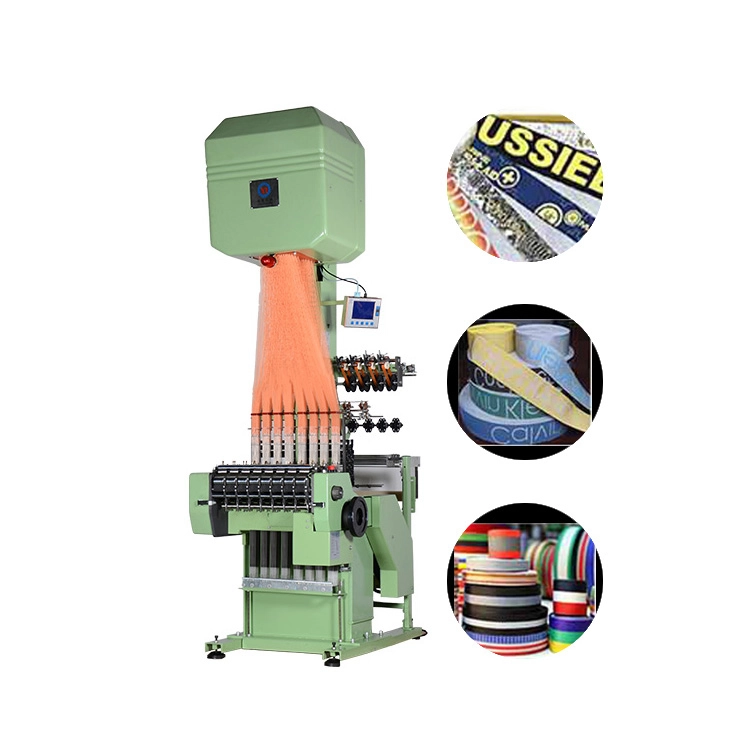

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27

Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine Integrate advanced technology of the enterprise, excellent performance, and the sales volume has been high, helping the enterprise to become the industry leader.Moreover,to take care of different needs, product customization is provided.

Customization:

Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

There are so many different Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine products for different age groups and budgets. In recent years, we've updated technologies or higher-efficiency manufacturing of the product. Its application ranges have been expanded to the field(s) of Weaving Machines. Guangzhou Yongjin Machinery Co., Ltd. will always stick to the business principle of 'quality first, customers foremost' and strive towards building an even more competitive and capable company aiming for an even better future.

Applicable Industries:	Garment Shops, Manufacturing Plant	Showroom Location:	Turkey, Thailand, Bangladesh
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty of core components:	1 Year
Core Components:	Motor	Condition:	New, New
Type:	Jacquard Loom	Application:	Elastic and non-elastic belts, It can be used To produce jacquard elastic and non-elastic webbing
Production Capacity:	500-1200rpm, 300sets / month	Place of Origin:	Guangdong, China
Brand Name:	Yongjin, YongJin	Dimension(LWH):	15009802600mm, 1.50.982.6m
Weight:	850kg	Power:	2.2kw
Warranty:	1 Year	Key Selling Points:	High Productivity
After-sales Service Provided:	Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service	Commodity name:	Long life elastic band & tape crochet knitting machine
Model Number:	YJ-TNF8/27	Place of origin:	GuangZhou, China
Export Markets:	Southeast Asia, the Middle East, Europe and America	After Warranty Service:	Video technical support, Online support
Local Service Location:	Turkey, Thailand	Certification:	ISO,3C

Product Description

We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 4

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 5

This is jacquard loom to produce shoulder strap, belt, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.

TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.

TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.

Video link
https://youtu.be/80VmuYpsSWg

Main Features

1. Harness minimum 192 hooks, maximum 1056 hooks, can make diversify tapes.

2. The machine installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

3. Independent development jacquard head, high precision & wear-resistant.

4. Bakeltie board & Harness are imported from Switzerland, the heald is imported from Italy.

5 Using import bearing on machines, INA bearing from Germany & NSK bearing from Japan.

6. High speed, can be up to 900-1200rpm, increasing the capacity.

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 6

Product Paramenters

Model	TNF8/27A	TNF6/42A	TNF6/42B	TNF4/66A
Number of hooks	192/240	192/240/320/384	384/448/480/512	192/240/320/384
Number of tapes	8	6	6	4
Width of reed	27	42	42	66
Maximum of tapes	25	40	40	62
Number of frame	12	12	12	12
Circulation	1:8/16-32	1:8/16-32	1:8/16-32	1:8/16-32
Speed	500-1200rpm	500-1200rpm	500-1200rpm	500-1200rpm

Model	TNF4/66B	TNF6/55A
Number of hooks	384/448/320/512/640/720	192
Number of tapes	4	6
Width of reed	66	27
Maximum of tapes	64	25
Number of frame	12	12
Circulation	1:8/16-32	1:8/16-32
Speed	500-1200rpm	500-1200rpm

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 7

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 8

Recommend Products

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 9

Company Profile

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 10

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 11

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 12

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 13

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 14

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 15

Product packaging

Yongjin - Modern high speed computerized jacquard needle loom,nonwoven machine jacquard, jacquard tape elastic webbing machine YJ-TNF 8/27 16

FAQ

Q1: Are you a factory or trading company?
A1: We are a factory with our own trading department.

Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.

Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.

Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.

Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.

If you have more questions, write to us. We sincerely hope to cooperate with friends from all walks of life, work together to create a better future!
