Yongjin - Muller type needle loom,sale of weaving machines,computerized jacquard for power looms YJ-TNF 6/42
Guangzhou Yongjin Machinery Co., Ltd. has gained a remarkable position in the concerned industry through years of efforts, and there is a great possibility that the company will achieve a greater advancement in the future. Designed by professional designers, Muller type needle loom,sale of weaving machines,computerized jacquard for power looms is attractive in its appearance. Used in Weaving Machines,Muller type needle loom,sale of weaving machines,computerized jacquard for power loomshas a promising application prospect.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Condition: | New, New | Type: | Jacquard Loom |
| Application: | jacquard elastic and non-elastic webbing, It can be used To produce jacquard elastic and non-elastic webbing | Production Capacity: | The maximum machine speed:1700, 300sets / month |
| Place of Origin: | Guangdong, China | Brand Name: | YongJin, YongJin |
| Dimension(L*W*H): | 3*0.98*2.6m, 1.4*1.2*2 | Weight: | 1000-1100kg |
| Power: | 2.2KW | Warranty: | 1 Year |
| Key Selling Points: | Automatic | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | After-sales Service Provided: | Video technical support, Online support, Engineers available to service machinery overseas |
| Certification: | 3C | Commodity name: | twill fabric weaving machine in pakistan |
| Model Number: | YJ-TNF | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America |
Muller type needle loom,sale of weaving machines,computerized jacquard for power looms
We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )

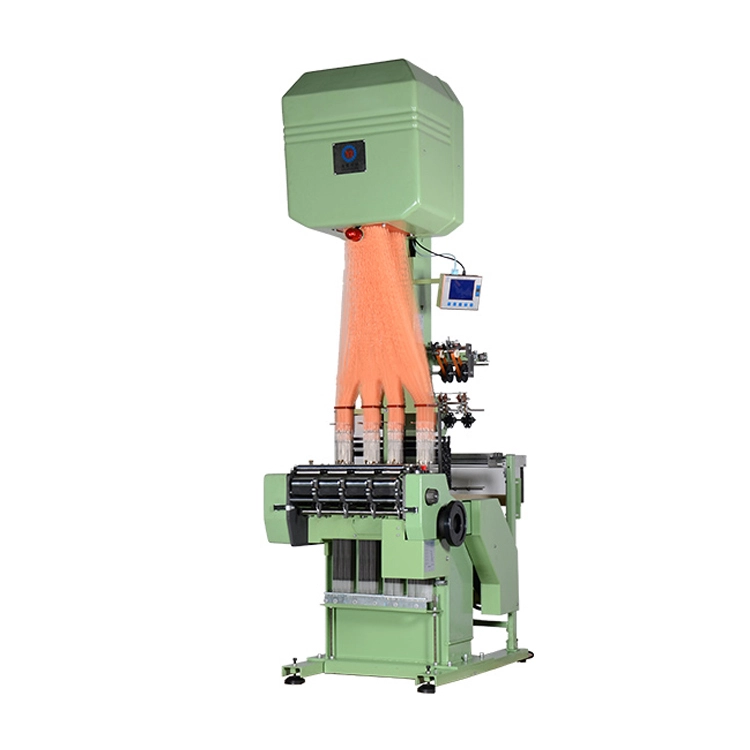

This is jacquard loom to produce shoulder strap, belt, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.
TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.
TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
https://youtu.be/80VmuYpsSWg
| Model | TNF8/27A | TNF6/42A | TNF6/42B | TNF4/66A |
| Number of hooks | 192/240 | 192/240/320/384 | 384/448/480/512 | 192/240/320/384 |
| Number of tapes | 8 | 6 | 6 | 4 |
| Width of reed | 27 | 42 | 42 | 66 |
| Maximum of tapes | 25 | 40 | 40 | 62 |
| Number of frame | 12 | 12 | 12 | 12 |
| Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Model | TNF4/66B | TNF6/55A | ||
| Number of hooks | 384/448/320/512/640/720 | 192 | ||
| Number of tapes | 4 | 6 | ||
| Width of reed | 66 | 27 | ||
| Maximum of tapes | 64 | 25 | ||
| Number of frame | 12 | 12 | ||
| Circulation | 1:8/16-32 | 1:8/16-32 | ||
| Speed | 500-1200rpm | 500-1200rpm | ||
| Main Features |
1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine. |
2.The integration solenoid valve setting is small in size and sensitive while working. |
3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain. |
4.The tension of warp is controlled automatically with the help of advanced technology |
5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity. |
6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking. |
7.The woven flower shape is showed on windows directly and clearly. |
8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens. |
 |
|
It can be applied to produce jacquard elastic and non-elastic knitting fabric and ornaments such as
chest ribbons , elastic braids for clothes ,satin ribbons, zipper ribbons, shoelaces that are widely used in ready garments, headwear, hair ornaments, gifts, medical products, belts, gloves and so on.
Advantage:
1,the open warp is horizontal construction. The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine
2,The integration solenoid valve setting is small in size and sensitive while working
3,Being the most advanced micro electronic jacquard unit ,its construction is simple and compact ,
and it is easy to maintain
4,The tension of warp is controlled automatically with the help of advanced technology
5,The women flower shape is showed on windows directly and clearly
6,The easy-dismounting construction of monofilament can lessen the workers’ labor intensity
7,The unique CAD printmaking system for woven tape is easy-to- use and is featured by the externally self-locking.
| Packing | 1 set of loom per standard wooden case |
| Payment terms | T/T, L/C.Western Union. |
Delivery of time | The delivery time is 20 days for one 20ft container.25 days for one 40ft container
|
Port | Guangzhou port.
|
