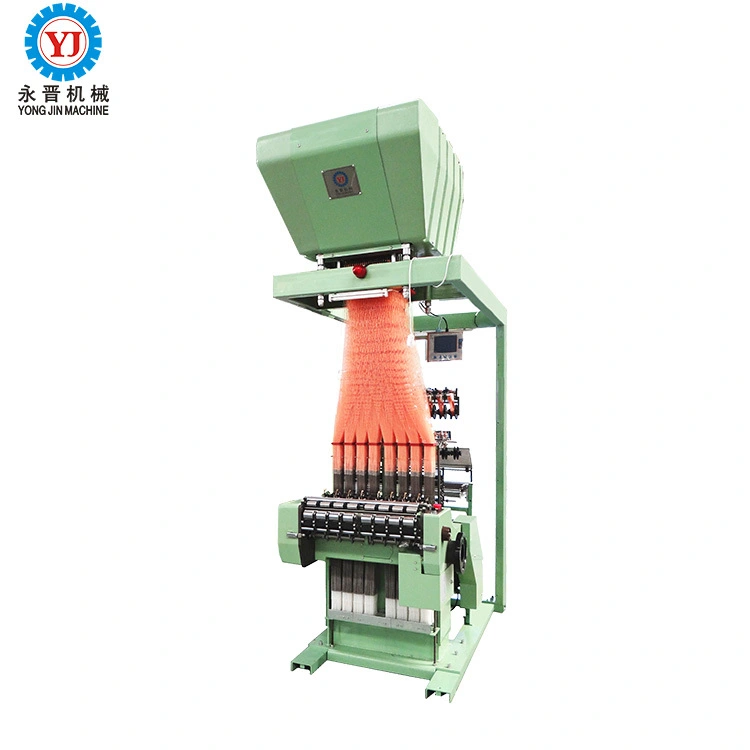

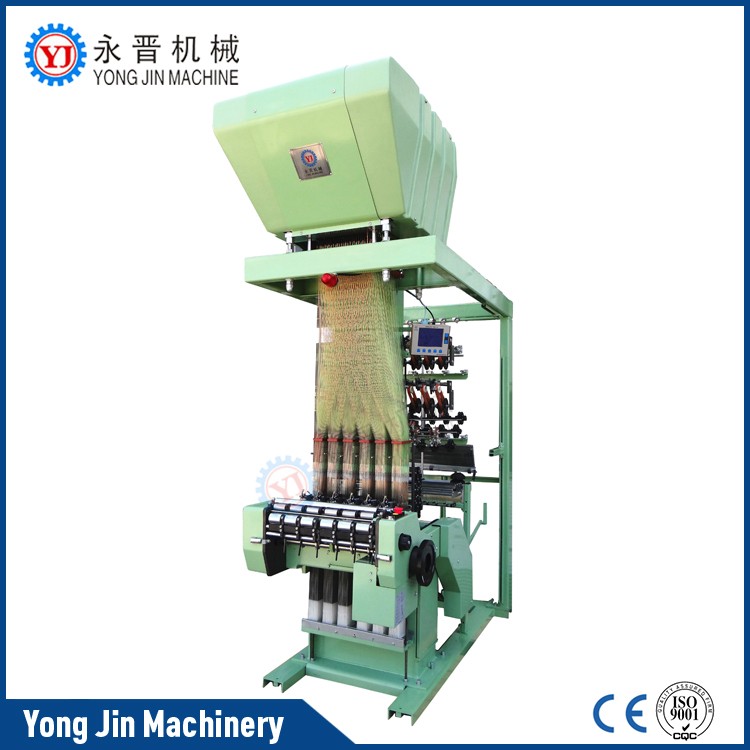

Yongjin - Narrow Fabric zipper tape cord weaving machine taiwan YJ-TNF 6/42
Guangzhou Yongjin Machinery Co., Ltd. has set up a team which is mainly engaged in product development. Thanks to their efforts, we have successfully developed weaving machine, jacquard loom, needle loom and planned to sell it to the overseas markets. Having carried out multiple tests, our technical staff has proved the use of technology ensures Narrow Fabric zipper tape cord weaving machine taiwan performance can be fully played out.Customers engaged in the field(s) of Weaving Machines speak highly of our product. Our featured Narrow Fabric zipper tape cord weaving machine taiwan providers ensure top quality product that will be ideal for all kinds of applications.
| Applicable Industries: | Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | Motor | Condition: | New, New |
| Type: | Shuttle Less Loom | Application: | To produce jacquard elastic and non-elastic tape, It can be used To produce jacquard elastic and non-elastic webbing |
| Production Capacity: | The maximum machine speed:1200, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | YongJin, YongJin | Dimension(L*W*H): | 3*0.98*2.6m, 3*0.98*2.6m |
| Weight: | 1000kg | Power: | 2.2KW |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| After-sales Service Provided: | Engineers available to service machinery overseas, Video technical support, Online support | Commodity name: | Narrow Fabric zipper tape cord weaving machine taiwan |
| Model Number: | YJ-TNF6/42 | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | Certification: | 3C |
Narrow Fabric zipper tape cord weaving machine taiwan
We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )
| Model | TNF6/42-384B | TNF6/42-448B | TNF6/42-480B | TNF6/42-512B |
| Number of hooks | 384 | 448 | 480 | 512 |
| Number of tapes | 6 | 6 | 6 | 6 |
| Width of reed | 42 | 42 | 42 | 42 |
| Maximum of tapes | 40 | 40 | 40 | 40 |
| Number of frame | 12 | 12 | 12 | 12 |
| Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Width of machine | 980mm | 980mm | 980mm | 980mm |
| Height of machine | 2600mm | 2600mm | 2600mm | 2600mm |
| Length of machine | 3000mm | 3000mm | 3000mm | 3000mm |
| Weight of machine | 1000kg | 1000kg | 1100kg | 1100kg |
| Power | 2.2kw | 2.2kw | 2.2kw | 2.2kw |
| Voltage | 380V | 380V | 380V | 380V |
 |
|
Application:

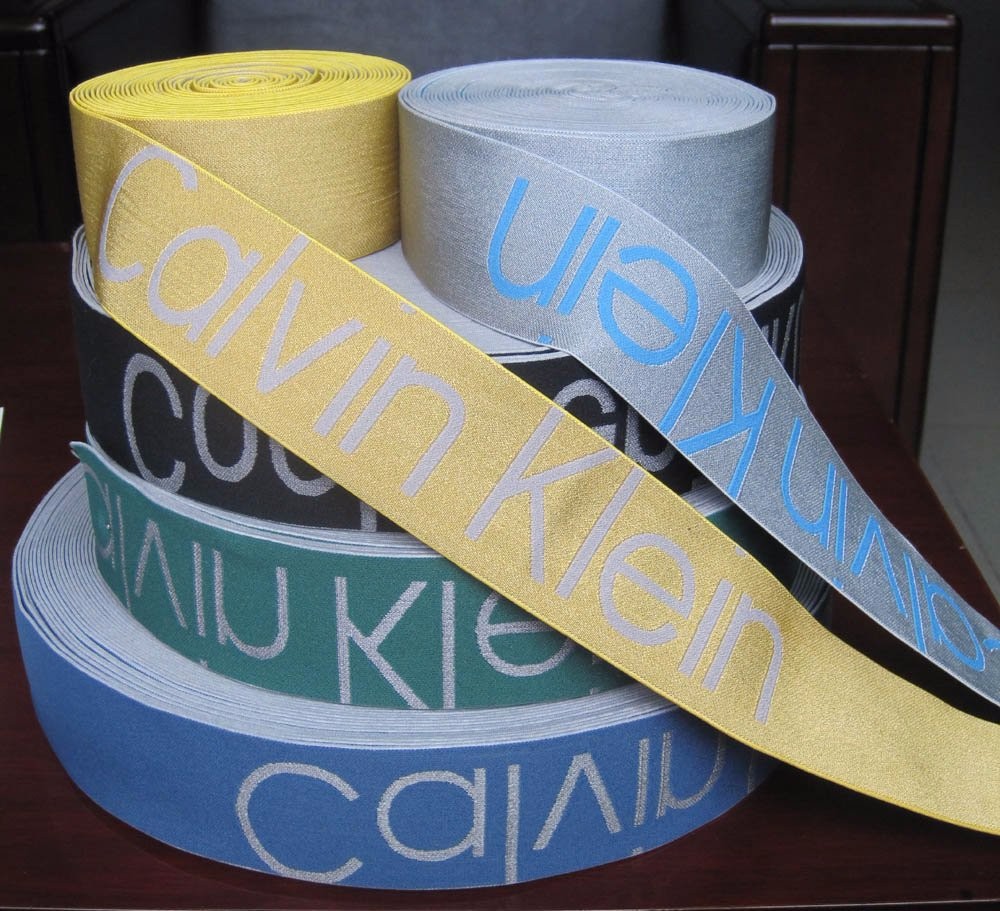

It can be applied to produce jacquard elastic and non-elastic knitting fabric and ornaments such as
chest ribbons , elastic braids for clothes ,satin ribbons, zipper ribbons, shoelaces that are widely used in ready garments, headwear, hair ornaments, gifts, medical products, belts, gloves and so on.
Advantage:
1,the open warp is horizontal construction. The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine
2,The integration solenoid valve setting is small in size and sensitive while working
3,Being the most advanced micro electronic jacquard unit ,its construction is simple and compact ,
and it is easy to maintain
4,The tension of warp is controlled automatically with the help of advanced technology
5,The women flower shape is showed on windows directly and clearly
6,The easy-dismounting construction of monofilament can lessen the workers’ labor intensity
7,The unique CAD printmaking system for woven tape is easy-to- use and is featured by the externally self-locking.
|
Packing |
1 set of loom per standard wooden case |
|
Payment terms |
T/T, L/C.Western Union. |
|
Delivery of time |
The delivery time is 20 days for one 20ft container.25 days for one 40ft container
|
|
Port |
Guangzhou port.
|
