Yongjin - small muller. shuttle loom woven label weaving loom YJ-V6/45
Our professional engineers have expertise in using technologies. It has a wide scope of range and is widely seen in the field(s) of Weaving Machines. After small muller. shuttle loom woven label weaving loom launching into the market, we have gained a lot of support and praise. Most customers think that this kind of products are in line with their expectations in terms of appearance and performance. For product inquiries, technical support, and other questions, you can reach us in any way stated on our 'Contact Us' page.
| Applicable Industries: | Garment Shops, Manufacturing Plant | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Condition: | New, New | Type: | Shuttleless Loom |
| Application: | elastic non-elastic webbing, It can be used To produce jacquard elastic and non-elastic webbing | Production Capacity: | The maximum machine speed:1700, 300sets / month |
| Place of Origin: | Guangdong, China | Brand Name: | YongJin, YongJin |
| Dimension(L*W*H): | 1.5m*0.98m*2.1m, 1.5m*0.98m*2.1m | Weight: | 890kg |
| Power: | 1.1KW | Warranty: | 1 Year, 2 Years |
| Key Selling Points: | Automatic | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | After-sales Service Provided: | Video technical support, Online support, Engineers available to service machinery overseas |
| Certification: | ISO,3C | Commodity name: | samll muller. shuttle loom woven label weaving loom |
| Model Number: | YJ-V 6/45 | Place of origin: | GuangZhou, China |

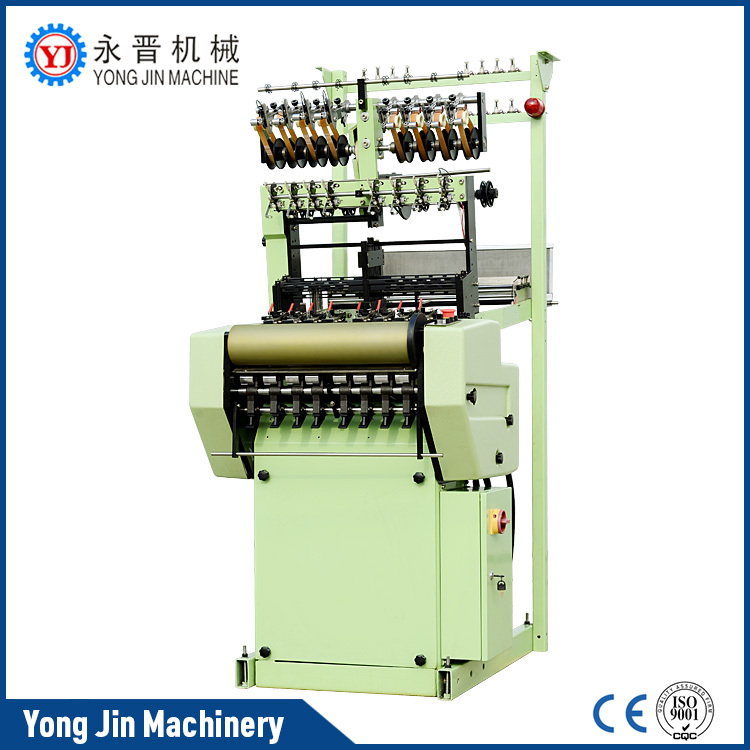

small muller. shuttle loom woven label weaving loom
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
https://youtu.be/80VmuYpsSWg
| Model | 2/110 | 4/65 | 6/50 | 8/30 | 12/15 | 8/30-2 | 12/18-2 |
| Length of frame | 550MM | ||||||
Number of tapes | 2 | 4 | 6 | 8 | 12 | 16 | 24 |
| Width of reed | 110 | 65 | 50 | 30 | 15 | 30 | 18 |
| Maximum of tapes | 100 | 63 | 48 | 28 | 13 | 28 | 16 |
| Number of frame | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Power/Voltage | 1.1KW/380V | ||||||
| Circulation | 1:8/16-48 | ||||||
| Speed | 800-1500rpm | ||||||
| Main Features |
1.It is small in size and good-looking in appearance. |
2.The principal axis is electromagnetic braking. It is easy-to-use and sensitive to start and stop, and not cause to any useless tapes. |
3.The single iron frame being divided on two sides and oriented in the middle, it can change to various flower shape and different kinds of tapes. |
4.It is featured by double weft and double hook and can weave every complex ribbon and double Z-type ribbon. |
5.The advanced automatic weft feeding device ensures fine tuning of weft feeding when non-stop of machine. |
6.The cam is characterized by its novel profile, no making too much noise and its high-quality lockrand. |
7.The number of lines of strips can be changed quickly and efficiently.Motor power is 1.1KW |
8.The coiling setting is small in size and easy-to-use, and the coiling tape setting will stop automatically. |
