Yongjin - hot sale high speed ytb 4/80 yitai loom for narrow belts making YJ-V6/45
In the past months,Guangzhou Yongjin Machinery Co., Ltd. has been devoted to serious design and innovative development of the new product. It is officially called hot sale high speed ytb 4/80 yitai loom for narrow belts making and releases to the market since today. We manufacture it in a variety of color and styles. Guangzhou Yongjin Machinery Co., Ltd. have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing, and gathering talents especially technical talents to develop our own core technologies.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Condition: | New, New | Type: | Shuttleless Loom |
| Application: | To produce narrow fabrics, It can be used To produce jacquard elastic and non-elastic webbing | Production Capacity: | The maximum machine speed:1700, 300sets / month |
| Place of Origin: | Guangdong, China | Brand Name: | YongJin, YongJin |
| Dimension(L*W*H): | 1.4*1*1.8, 1.4*1*1.8 | Weight: | 890kg |
| Power: | 2.2KW | Warranty: | 1 Year |
| Key Selling Points: | Automatic | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | After-sales Service Provided: | Video technical support, Online support, Engineers available to service machinery overseas |
| Certification: | 3C | Commodity name: | hot sale high speed ytb 4/80 yitai loom for narrow belts making |
| Model Number: | YJ-V 6/45 | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America |

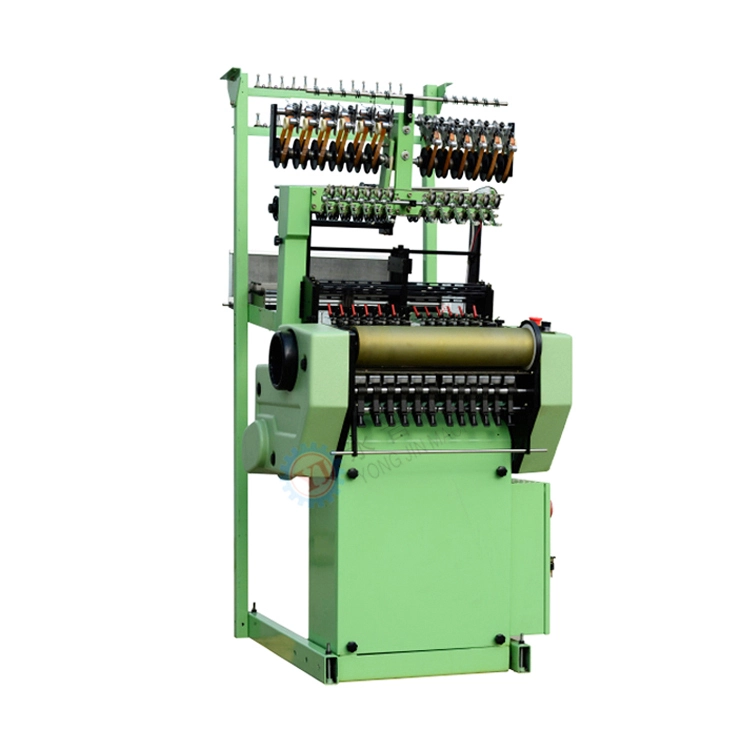

Hot sale high speed ytb 4/80 yitai loom for narrow belts making
We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )
| Model | 2/110 | 4/65 | 6/50 | 8/30 | 12/15 | 8/30-2 | 12/18-2 |
| Length of frame | 550MM | ||||||
Number of tapes | 2 | 4 | 6 | 8 | 12 | 16 | 24 |
| Width of reed | 110 | 65 | 50 | 30 | 15 | 30 | 18 |
| Maximum of tapes | 100 | 63 | 48 | 28 | 13 | 28 | 16 |
| Number of frame | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Power/Voltage | 1.1KW/380V | ||||||
| Circulation | 1:8/16-48 | ||||||
| Speed | 800-1500rpm | ||||||
| Main Features |
1.It is small in size and good-looking in appearance. |
2.The principal axis is electromagnetic braking. It is easy-to-use and sensitive to start and stop, and not cause to any useless tapes. |
3.The single iron frame being divided on two sides and oriented in the middle, it can change to various flower shape and different kinds of tapes. |
4.It is featured by double weft and double hook and can weave every complex ribbon and double Z-type ribbon. |
5.The advanced automatic weft feeding device ensures fine tuning of weft feeding when non-stop of machine. |
6.The cam is characterized by its novel profile, no making too much noise and its high-quality lockrand. |
7.The number of lines of strips can be changed quickly and efficiently.Motor power is 1.1KW |
8.The coiling setting is small in size and easy-to-use, and the coiling tape setting will stop automatically. |
 |
|
Application:
It can be applied to produce jacquard elastic and non-elastic knitting fabric and ornaments such as
chest ribbons , elastic braids for clothes ,satin ribbons, zipper ribbons, shoelaces that are widely used in ready garments, headwear, hair ornaments, gifts, medical products, belts, gloves and so on.
Advantage:
1,the open warp is horizontal construction. The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine
2,The integration solenoid valve setting is small in size and sensitive while working
3,Being the most advanced micro electronic jacquard unit ,its construction is simple and compact ,
and it is easy to maintain
4,The tension of warp is controlled automatically with the help of advanced technology
5,The women flower shape is showed on windows directly and clearly
6,The easy-dismounting construction of monofilament can lessen the workers’ labor intensity
7,The unique CAD printmaking system for woven tape is easy-to- use and is featured by the externally self-locking.
| Packing | 1 set of loom per standard wooden case |
| Payment terms | T/T, L/C.Western Union. |
Delivery of time | The delivery time is 20 days for one 20ft container.25 days for one 40ft container
|
Port | Guangzhou port.
|
CONTACT US
If you have more questions, write to us. We sincerely hope to cooperate with friends from all walks of life, work together to create a better future!
