Yongjin - 145 cm velvet shuttle looms+polyester small webbing machine YJ-TNF 8/27
Guangzhou Yongjin Machinery Co., Ltd. is always dedicated to the research and development, production and sale of the 145 cm velvet shuttle looms+polyester small webbing machine. 145 cm velvet shuttle looms+polyester small webbing machine can help companies stand out in a fiercely competitive environment and become the industry leader in one fell swoop. In the future,145 cm velvet shuttle looms+polyester small webbing machine will always adhere to the road of quality development, increase the investment in technology and talent introduction, always improve the core competitiveness of the enterprise, to achieve the goal of sustainable development.
| Applicable Industries: | Garment Shops, Building Material Shops | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | Bearing, Motor, Gear | Condition: | New, New |
| Type: | Shuttle Less Loom | Application: | To produce narrow fabrics, To produce narrow fabrics straps/belt/webbing/tape and so on |
| Production Capacity: | The maximum machine speed:1200, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | YongJin, YongJin | Dimension(L*W*H): | 1.5*0.98*2.6m, 1.5*0.98*2.6m |
| Weight: | 450kg | Power: | 2.2KW |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| After-sales Service Provided: | Engineers available to service machinery overseas, Video technical support, Online support | Commodity name: | machine weaving,jacquard weaving machine ,weaving machine wool |
| Model Number: | YJ-TNF 8/27 | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | Certification: | ISO,3C |
145 cm velvet shuttle looms+polyester small webbing machine
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

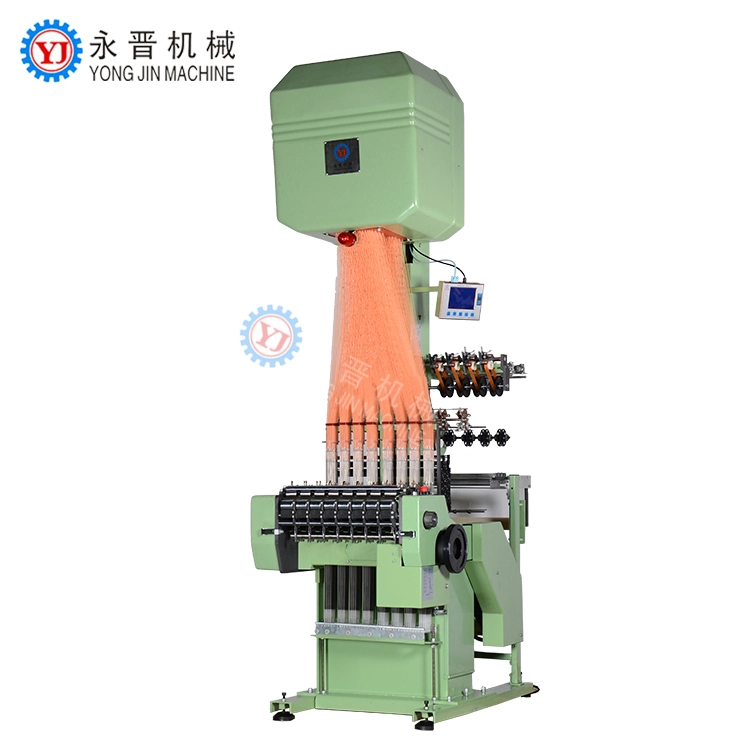

This is jacquard loom to produce shoulder strap, belt, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.
TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.
TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Advantage:
1) Yongjin needle loom is with stable quality, low noise, and durable working condition. It supplies customer high economic efficiency.
2) Automatic lubrication device and automatic tension feeding system provide effective control over high quality fabric while saving time and labor for the user.
3) Drive belt and change gear to perform stabilized transmission of bottom weft and provide wider range of fabrics which be more superior in quality.
4) Convertible machine parts supported with various devices to provide wider range of fabrics multi-purpose for single machine as well.
5) Heald frame in double-load, double shedding lever, twin pattern chain transmission configuration of shaft and gear has been reinforced.
| Model | TNF8/27A | TNF6/42A | TNF6/42B | TNF4/66A |
| Number of hooks | 192/240 | 192/240/320/384 | 384/448/480/512 | 192/240/320/384 |
| Number of tapes | 8 | 6 | 6 | 4 |
| Width of reed | 27 | 42 | 42 | 66 |
| Maximum of tapes | 25 | 40 | 40 | 62 |
| Number of frame | 12 | 12 | 12 | 12 |
| Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Model | TNF4/66B | TNF6/55A | ||
| Number of hooks | 384/448/320/512/640/720 | 192 | ||
| Number of tapes | 4 | 6 | ||
| Width of reed | 66 | 27 | ||
| Maximum of tapes | 64 | 25 | ||
| Number of frame | 12 | 12 | ||
| Circulation | 1:8/16-32 | 1:8/16-32 | ||
| Speed | 500-1200rpm | 500-1200rpm | ||
| Main Features |
| 1.Used to produce design,signs,characters of narrow fabrics and decorations,either elastic or non-elastic with jacquard.Such as underwear elastic,ribbon,shoes belt in garment industry,laces,ribbon in gifts industry. |
| 2.Operating speed is high,the maxium speed of up to 1200rpm,high efficiency,high yield. |
| 3.Special jacquard CAD patter design system,compatible with UPT,JC etc,.with wide adaptability. |
| 4.Stepless frequency conversion motor,easy to operate and save labor,energy saving adn environment protection. |
| 5.High standard parts with long lasting durability. |
| Parameters | |
| Model | TNF8/27 |
|
Number of spaces |
8 |
| Max steel gripper | 27mm |
| Max Tape Width | 25mm |
| Number of frame | 12 |
| Voltage | 380V |
| Circulation | 1:8/16-32 |
| Number of needles | 128-192 |
| Width of machine | 980mm |
| Max Machine Height | 3000mm |
| Mini Machine Height | 2600mm |
| Weight of machine | 890kg |
