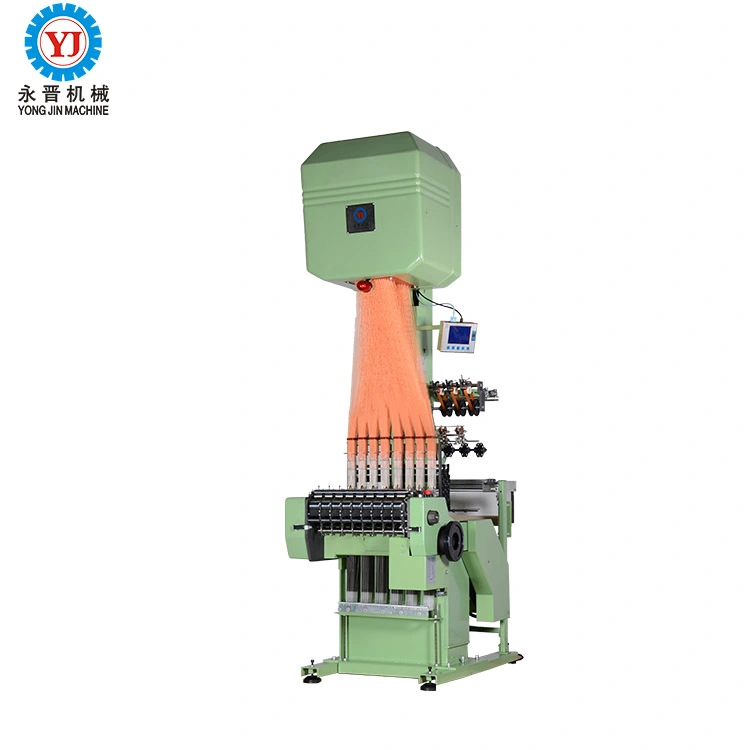

Yongjin - jacuard label knitting machine, jacquard elastic tape machines YJ-TNF 6/42

As Guangzhou Yongjin Machinery Co., Ltd. continues to develop, we invest heavily in product development every year in order to keep us competitive in the industry. This year, we have successfully worked out the jacuard label knitting machine, jacquard elastic tape machines. In today's era,jacuard label knitting machine, jacquard elastic tape machines has proved its value in the field(s) of Weaving Machines. With regard to its design, jacuard label knitting machine, jacquard elastic tape machines is designed by a team of our designers who are always close to the industry trend and keep alert to the changes.

Product Description

We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

This is jacquard loom to produce shoulder strap, belt, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.

TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.

TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.

Video link
https://youtu.be/80VmuYpsSWg

Product Paramenters

Model	TNF8/27A	TNF6/42A	TNF6/42B	TNF4/66A
Number of hooks	192/240	192/240/320/384	384/448/480/512	192/240/320/384
Number of tapes	8	6	6	4
Width of reed	27	42	42	66
Maximum of tapes	25	40	40	62
Number of frame	12	12	12	12
Circulation	1:8/16-32	1:8/16-32	1:8/16-32	1:8/16-32
Speed	500-1200rpm	500-1200rpm	500-1200rpm	500-1200rpm

Model	TNF4/66B	TNF6/55A
Number of hooks	384/448/320/512/640/720	192
Number of tapes	4	6
Width of reed	66	27
Maximum of tapes	64	25
Number of frame	12	12
Circulation	1:8/16-32	1:8/16-32
Speed	500-1200rpm	500-1200rpm

Main Features

1. The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine.
2. The integration solenoid valve setting is small in size and sensitive while working.
3. Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain.
4. The tension of warp is controlled automatically with the help of advanced technology.
5. The easy-dismounting construction of monofilament can lessen the workers’ labor intensity.
6. The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking.
7. The woven flower shape is showed on windows directly and clearly.
8. Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data. It can also show the fault point and its reason, and copy the data on time when accident happens.
