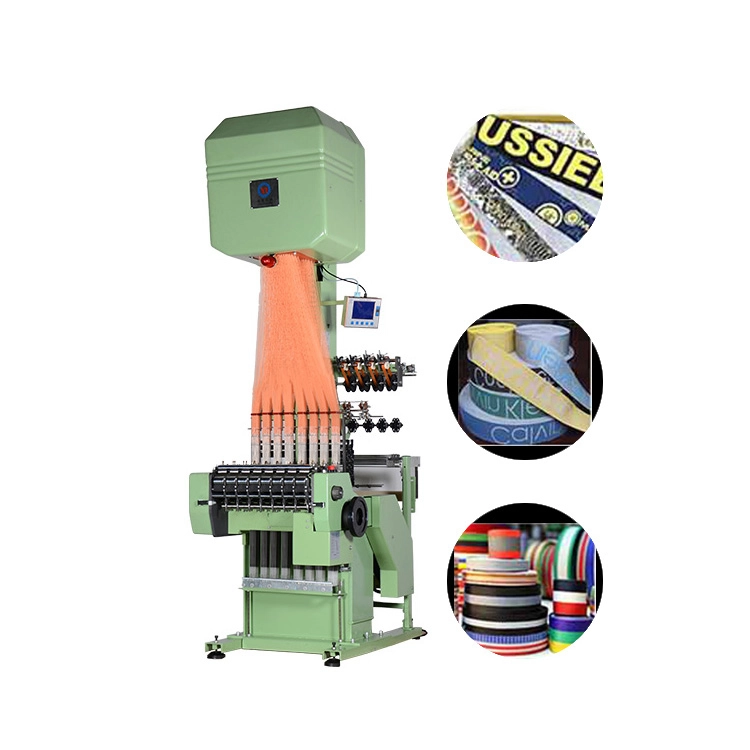

Yongjin - high speed computerized jacquard webbing strap making machine+computerized jacquard polyester belt machine YJ-TNF 6/42
high speed computerized jacquard webbing strap making machine+computerized jacquard polyester belt machine is carefully designed by skilled designers. It is designed to meet the industry criterion. Looking back to the good old days,Guangzhou Yongjin Machinery Co., Ltd. have done our best to achieve our goal of serving customers with the best quality products and services. In the future, we will keep improving our capabilities and upgrading technologies to provide more and better products to satisfy the growing needs of customers.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile Factory | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Condition: | New, New | Type: | Jacquard Loom |
| Application: | Produce Jacquard Elastic, It can be used To produce jacquard elastic and non-elastic webbing | Production Capacity: | 300sets / Month, 300sets / month |
| Place of Origin: | Guangdong, China | Brand Name: | Yongjin, YongJin |
| Dimension(L*W*H): | 1.4*1*1.8, 1.4*1.2*2 | Weight: | 500kg |
| Power: | 2.2KW | Warranty: | 1 Year |
| Key Selling Points: | Automatic | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | After-sales Service Provided: | Video technical support, Online support, Engineers available to service machinery overseas |
| Certification: | ISO9001 CE | Commodity name: | High adaptability weaving loom machine for bangladesh |
| Model Number: | YJ-TNF | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America |

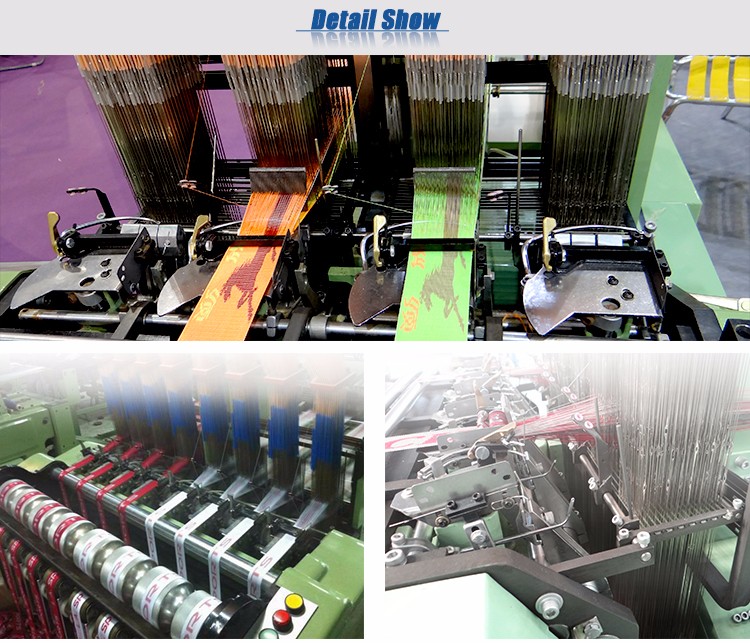

high speed computerized jacquard webbing strap making machine+computerized jacquard polyester belt machine
We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )
| Model | TNF8/27A | TNF6/42A | TNF6/42B | TNF4/66A |
| Number of hooks | 192/240 | 192/240/320/384 | 384/448/480/512 | 192/240/320/384 |
| Number of tapes | 8 | 6 | 6 | 4 |
| Width of reed | 27 | 42 | 42 | 66 |
| Maximum of tapes | 25 | 40 | 40 | 62 |
| Number of frame | 12 | 12 | 12 | 12 |
| Circulation | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 | 1:8/16-32 |
| Speed | 500-1200rpm | 500-1200rpm | 500-1200rpm | 500-1200rpm |
| Model | TNF4/66B | TNF6/55A | ||
| Number of hooks | 384/448/320/512/640/720 | 192 | ||
| Number of tapes | 4 | 6 | ||
| Width of reed | 66 | 27 | ||
| Maximum of tapes | 64 | 25 | ||
| Number of frame | 12 | 12 | ||
| Circulation | 1:8/16-32 | 1:8/16-32 | ||
| Speed | 500-1200rpm | 500-1200rpm | ||
| Main Features |
1.The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine. |
2.The integration solenoid valve setting is small in size and sensitive while working. |
3.Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain. |
4.The tension of warp is controlled automatically with the help of advanced technology |
5.The easy-dismounting construction of monofilament can lessen the workers’ labor intensity. |
6.The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking. |
7.The woven flower shape is showed on windows directly and clearly. |
8.Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens. |
 |
|
It can be applied to produce jacquard elastic and non-elastic knitting fabric and ornaments such as
chest ribbons , elastic braids for clothes ,satin ribbons, zipper ribbons, shoelaces that are widely used in ready garments, headwear, hair ornaments, gifts, medical products, belts, gloves and so on.
Advantage:
1,the open warp is horizontal construction. The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine
2,The integration solenoid valve setting is small in size and sensitive while working
3,Being the most advanced micro electronic jacquard unit ,its construction is simple and compact ,
and it is easy to maintain
4,The tension of warp is controlled automatically with the help of advanced technology
5,The women flower shape is showed on windows directly and clearly
6,The easy-dismounting construction of monofilament can lessen the workers’ labor intensity
7,The unique CAD printmaking system for woven tape is easy-to- use and is featured by the externally self-locking.
| Packing | 1 set of loom per standard wooden case |
| Payment terms | T/T, L/C.Western Union. |
Delivery of time | The delivery time is 20 days for one 20ft container.25 days for one 40ft container
|
Port | Guangzhou port.
|
Q1:Are you a factory or trading company?
A1:We are a factory with our own trading department.
Q2:Where is your factory?
A2:Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.
Q3:How does your factory do regarding quality control?
A3:Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.
Q4:How does your service oversea?
A4:We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.
Q5:Can you make some change for me for my own design?
A5:Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.
Q6:How long is the warranty period?
A6:12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
