Yongjin - auto gauze machine+bandage machinery in pakistan YJ-V6/45
Utilizing technology makes the manufacturing process go smoothly and efficiently.With regard to the product advantages, the product can be widely found in the field(s) of auto gauze machine+bandage machinery in pakistan. We manufacture it in a variety of color and styles. Having collected customers' needs and analyzed trends, we have spent a lot in developing new and versatile features of Weaving Machines in innovative ways.And the weaving machine, jacquard loom, needle loom is designed to be unique and attractive enough to catch people's attention.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile industry | Showroom Location: | Turkey, Thailand |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | Engine, Motor, Gear | Condition: | New, New |
| Type: | Shuttle Less Loom | Application: | jacquard elastic and non-elastic webbing, It can be used To produce jacquard elastic and non-elastic webbing |
| Production Capacity: | The maximum machine speed:1700, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | YongJin, YongJin | Dimension(L*W*H): | 1.5m*0.98m*2.1m, 1.5*0.98*2.1m |
| Weight: | 400kg | Power: | 1.1KW |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| After-sales Service Provided: | Engineers available to service machinery overseas, Video technical support, Online support | Commodity name: | Hot sale endless loom bands,power loom machine price |
| Model Number: | YJ-V 6/45 | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | Certification: | ISO9001,3C |
auto gauze machine+bandage machinery in pakistan
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )

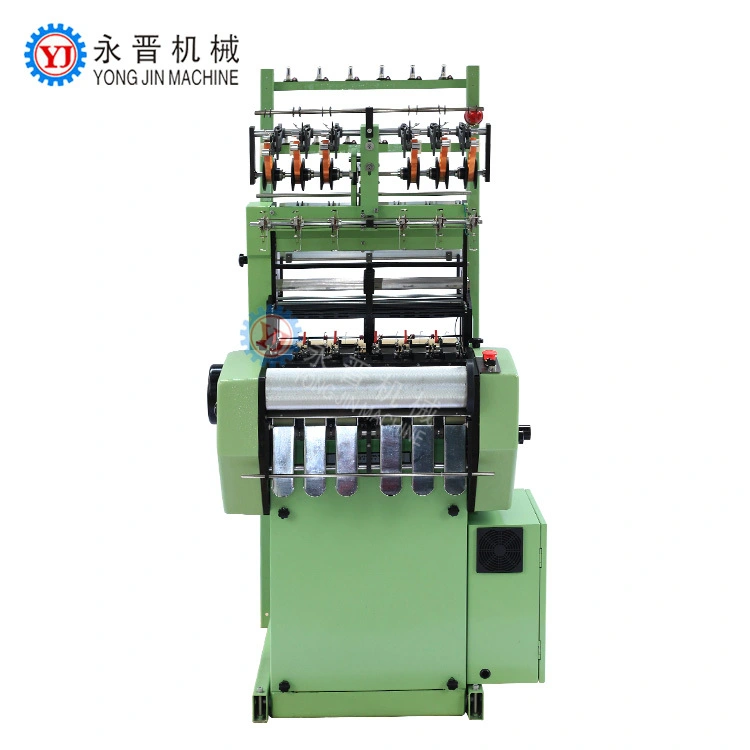

This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
https://youtu.be/80VmuYpsSWg
| Model | 2/110 | 4/65 | 6/50 | 8/30 | 12/15 | 8/30-2 | 12/18-2 |
| Length of frame | 550MM | ||||||
|
Number of tapes |
2 | 4 | 6 | 8 | 12 | 16 | 24 |
| Width of reed | 110 | 65 | 50 | 30 | 15 | 30 | 18 |
| Maximum of tapes | 100 | 63 | 48 | 28 | 13 | 28 | 16 |
| Number of frame | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Power/Voltage | 1.1KW/380V | ||||||
| Circulation | 1:8/16-48 | ||||||
| Speed | 800-1500rpm | ||||||
| Main Features |
|
1.It is small in size and good-looking in appearance. |
|
2.The principal axis is electromagnetic braking. It is easy-to-use and sensitive to start and stop, and not cause to any useless tapes. |
|
3.The single iron frame being divided on two sides and oriented in the middle, it can change to various flower shape and different kinds of tapes. |
|
4.It is featured by double weft and double hook and can weave every complex ribbon and double Z-type ribbon. |
|
5.The advanced automatic weft feeding device ensures fine tuning of weft feeding when non-stop of machine. |
|
6.The cam is characterized by its novel profile, no making too much noise and its high-quality lockrand. |
|
7.The number of lines of strips can be changed quickly and efficiently.Motor power is 1.1KW |
|
8.The coiling setting is small in size and easy-to-use, and the coiling tape setting will stop automatically. |
