Yongjin - China manufacturer shuttleless elastic webbing,non-elastic belt machine YJ-V6/45
As a driven company,Guangzhou Yongjin Machinery Co., Ltd. has been developing products on our own on a regular basis, one of which is weaving machine, jacquard loom, needle loom.It is the newest product and bound to bring benefits to customers. Our professional engineers applied technology to product development.The product can be used in a wide range of applications like Weaving Machines requiring very high quality. In the future,China manufacturer shuttleless elastic webbing,non-elastic belt machine will increase more capital and technology investment to continuously improve the comprehensive competitiveness of the enterprise, and strive to remain invincible in the market forever.
| Applicable Industries: | Garment Shops, Manufacturing Plant, Textile Industry | Showroom Location: | Turkey, Thailand |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Core Components: | Engine, Bearing, Motor, Pressure vessel, Gear | Condition: | New, New |
| Type: | Shuttle Loom | Application: | To produce narrow fabric, It can be used To produce jacquard elastic and non-elastic webbing |
| Production Capacity: | The maximum machine speed:1700, 300sets / month | Place of Origin: | Guangdong, China |
| Brand Name: | YongJin, YongJin | Dimension(L*W*H): | 1.5m*0.98m*2.1m, 1.5*0.98*2.1m |
| Weight: | 400kg | Power: | 1.1KW |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| After-sales Service Provided: | Engineers available to service machinery overseas, Video technical support, Online support | Commodity name: | Hot sale endless loom bands,power loom machine price |
| Model Number: | YJ-V 6/45 | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | Certification: | ISO9001,3C |

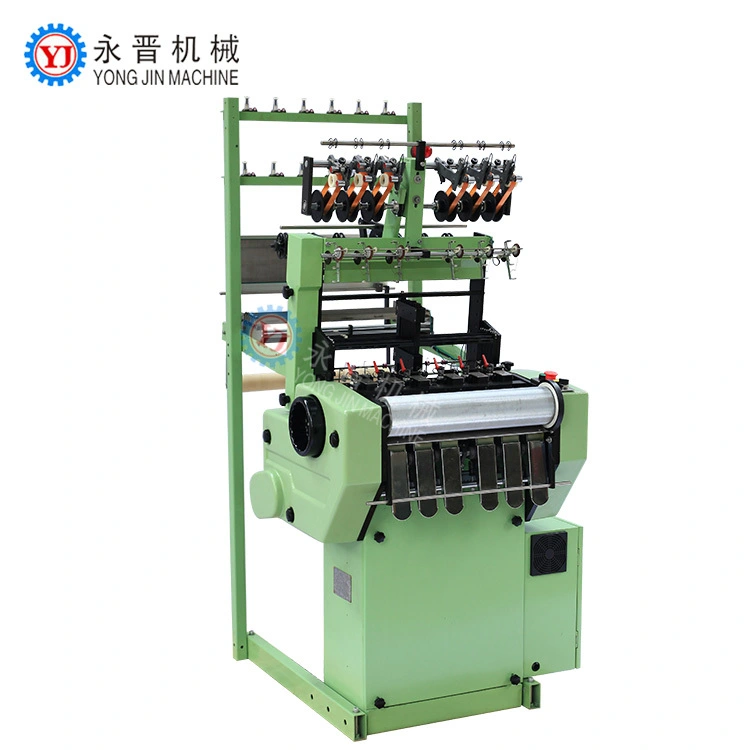

China manufacturer shuttleless elastic webbing,non-elastic belt machine
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
https://youtu.be/80VmuYpsSWg
| Model | 2/110 | 4/65 | 6/50 | 8/30 | 12/15 | 8/30-2 | 12/18-2 |
| Length of frame | 550MM | ||||||
|
Number of tapes |
2 | 4 | 6 | 8 | 12 | 16 | 24 |
| Width of reed | 110 | 65 | 50 | 30 | 15 | 30 | 18 |
| Maximum of tapes | 100 | 63 | 48 | 28 | 13 | 28 | 16 |
| Number of frame | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Power/Voltage | 1.1KW/380V | ||||||
| Circulation | 1:8/16-48 | ||||||
| Speed | 800-1500rpm | ||||||
| Main Features |
|
1.It is small in size and good-looking in appearance. |
|
2.The principal axis is electromagnetic braking. It is easy-to-use and sensitive to start and stop, and not cause to any useless tapes. |
|
3.The single iron frame being divided on two sides and oriented in the middle, it can change to various flower shape and different kinds of tapes. |
|
4.It is featured by double weft and double hook and can weave every complex ribbon and double Z-type ribbon. |
|
5.The advanced automatic weft feeding device ensures fine tuning of weft feeding when non-stop of machine. |
|
6.The cam is characterized by its novel profile, no making too much noise and its high-quality lockrand. |
|
7.The number of lines of strips can be changed quickly and efficiently.Motor power is 1.1KW |
|
8.The coiling setting is small in size and easy-to-use, and the coiling tape setting will stop automatically. |
