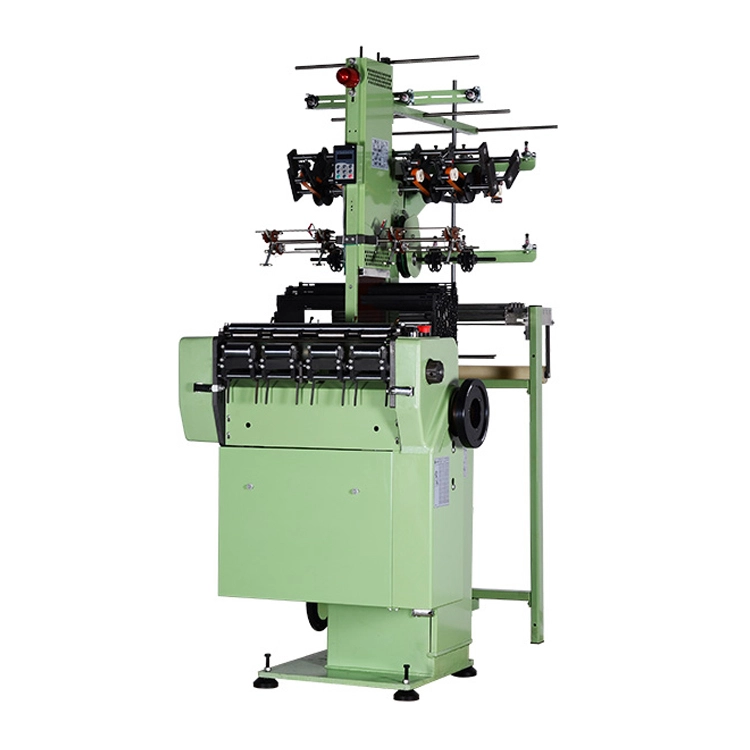

Yongjin - Factory price weaving machine elastic band for boxer shorts YJ-NF 4/66
Thanks to the efforts of Guangzhou Yongjin Machinery Co., Ltd.'s employees, our development work has been carried out smoothly and efficiently. Our Factory price weaving machine elastic band for boxer shorts is developed to lead the industry trend with its new features and unique appearance. Weaving Machines has won high attention and praise from the industry and market. Guangzhou Yongjin Machinery Co., Ltd. will continue to adopt scientific and advanced marketing strategies to focus on market expansion, forming a complete sales network across the world. Moreover, we will pay more attention to the talents gathering, ensuring innovative and competitive wisdom is distilled for the long-term development of our company.
| Applicable Industries: | Garment Shops, Manufacturing Plant | Showroom Location: | Turkey, Viet Nam, Indonesia, Thailand, Bangladesh |
| Condition: | New, New | Type: | Shuttleless Loom |
| Application: | Produce narrow fabrics, To produce narrow fabrics straps/belt/webbing/tape and so on | Production Capacity: | Maximum machine speed:1700, 300sets / month |
| Place of Origin: | Guangdong, China | Brand Name: | YongJin, YongJin |
| Dimension(L*W*H): | 1.4*1*1.8, 1.4*1*1.8 | Weight: | 450kg |
| Power: | 2.2KW | Warranty: | 1 Year |
| Key Selling Points: | Automatic | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Turkey, Thailand | After-sales Service Provided: | Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas |
| Certification: | ISO,3C | Commodity name: | Narrow fabric needle loom |
| Model Number: | YJ-NF 4/66 | Place of origin: | GuangZhou, China |
| Export Markets: | Southeast Asia, the Middle East, Europe and America |
Factory price weaving machine elastic band for boxer shorts
We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )
4
| Model | NF2/130 | NF2/175 | NF2/210 | NF4/66 | NF4/84 | NF4/110 |
Number of tapes | 2 | 2 | 2 | 4 | 4 | 4 |
| Width of reed | 130 | 175 | 210 | 66 | 84 | 110 |
| Maximum of tapes | 128 | 170 | 200 | 65 | 80 | 100 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 300-1200 rpm | 200-800 rpm | 200-500 rpm | 600-1500 rpm | 500-1200 rpm | 500-1000 rpm |
| Model | NF6/42 | NF6/66 | NF6/80 | NF8/27 | NF8/42 | NF8/55 |
| Number of tapes | 6 | 6 | 6 | 8 | 8 | 8 |
| Width of reed | 42 | 66 | 80 | 27 | 42 | 55 |
| Maximum of tapes | 40 | 65 | 78 | 25 | 40 | 53 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 800-1700 rpm | 500-1200 rpm | 500-1000 rpm | 800-1700 rpm | 500-1200 rpm | 500-1000 rpm |
| Model | NF10/27 | NF12/27 | NF14/25 | NF6/42-2 | NF8/27-2 | NF16/15 |
| Number of tapes | 10 | 12 | 14 | 12 | 16 | 16 |
| Width of reed | 27 | 27 | 25 | 42 | 27 | 15 |
| Maximum of tapes | 25 | 25 | 23 | 40 | 25 | 13 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed | 500-1200 rpm | 500-1000 rpm | 500-1000 rpm | 500-1200 rpm | 500-1200 rpm | 500-1200 rpm |
| Main Features |
| 1.used to produce high quality,varied elastic and non-elastic belts.Such as underwear elastic,ribbon,shoes belt in garment industry,laces,ribbon in gifts industry.The machine is with high adaptability and used wide in wide range. |
| 2.Speed is high,the speed of up to 300-1200rpm,high efficiency,high yield |
| 3.Stepless frequency conversion motor,easy to operate and save labor and protect the yarn. |
| 4.The main brake system is stable and reliable,can protect the yarn. |
| 5.High standard parts with long lasting durability |
| Parameters | |
| Model | NF12/27 |
Number of tapes | 12 |
| Width of reed | 27 |
| Maximum of tapes | 25 |
| Number of frame | 20 |
| Voltage | 380V |
| Circulation | 1:8/16-48 |
| Speed | 800-1700rpm |
| Width of machine | 980mm |
| Height of machine | 2100mm |
| Length of machine | 1500mm |
| Weight of machine | 500kg |
| Power | 1.5kw |
 |
|
Application:
It can be applied to produce jacquard elastic and non-elastic knitting fabric and ornaments such as
chest ribbons , elastic braids for clothes ,satin ribbons, zipper ribbons, shoelaces that are widely used in ready garments, headwear, hair ornaments, gifts, medical products, belts, gloves and so on.
Advantage:
1,the open warp is horizontal construction. The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine
2,The integration solenoid valve setting is small in size and sensitive while working
3,Being the most advanced micro electronic jacquard unit ,its construction is simple and compact ,
and it is easy to maintain
4,The tension of warp is controlled automatically with the help of advanced technology
5,The women flower shape is showed on windows directly and clearly
6,The easy-dismounting construction of monofilament can lessen the workers’ labor intensity
7,The unique CAD printmaking system for woven tape is easy-to- use and is featured by the externally self-locking.
| Packing | 1 set of loom per standard wooden case |
| Payment terms | T/T, L/C.Western Union. |
Delivery of time | The delivery time is 20 days for one 20ft container.25 days for one 40ft container
|
Port | Guangzhou port.
|
